INTELLIGENT PARKING ASSIST SYSTEM, Diagnostic DTC:C1621, C1622

DTC Code DTC Name
C1621 Back Camera Power Supply Failure
C1622 Open or Short Circuit in Back Camera Signal

DESCRIPTION

These DTCs are stored if the parking assist ECU judges as a result of its self check that the signals or signal lines between the parking assist ECU and rear television camera assembly are not normal.

DTC No. DTC Detection Condition Trouble Area
C1621 Rear television camera power supply failure
  • Harness or connector

  • Rear television camera assembly

  • Parking assist ECU

C1622 An open or short in the rear television camera signal circuit
  • Harness or connector

  • Rear television camera assembly

  • Parking assist ECU

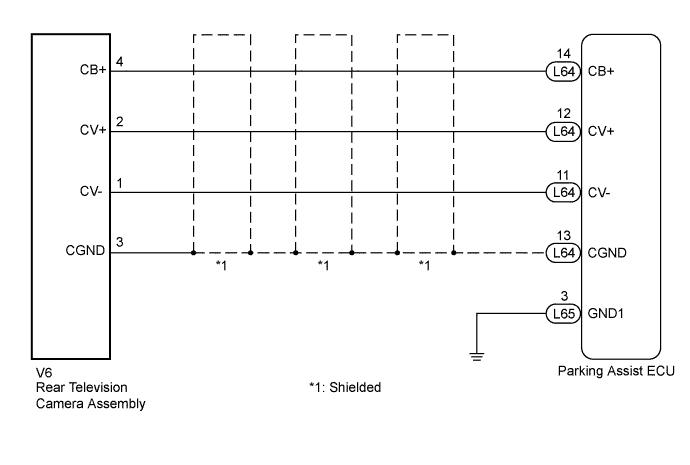

WIRING DIAGRAM

A01JAC0E01

INSPECTION PROCEDURE

Note


  • When "System initializing" message is displayed on the navigation receiver assembly after the battery terminal disconnected, correct the steering angle neutral point Click here.

  • Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the intelligent parking assist system may be needed Click here.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - REAR TELEVISION CAMERA)


    1. Disconnect the L64 connector from the parking assist ECU.

    2. Disconnect the V6 connector from the rear television camera assembly.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      L64-11 (CV-) - V6-1 (CV-) Always Below 1 Ω
      L64-12 (CV+) - V6-2 (CV+) Always Below 1 Ω
      L64-13 (CGND) - V6-3 (CGND) Always Below 1 Ω
      L64-14 (CB+) - V6-4 (CB+) Always Below 1 Ω
      L64-11 (CV-) - Body ground Always 10 kΩ or higher
      L64-12 (CV+) - Body ground Always 10 kΩ or higher
      L64-13 (CGND) - Body ground Always 10 kΩ or higher
      L64-14 (CB+) - Body ground Always 10 kΩ or higher

    NG
    OK
  2. CHECK PARKING ASSIST ECU (CV-, CGND)


    1. A01J9FXE06
      Text in Illustration
      *1

      Component with harness connected

      (Parking Assist ECU)

      Reconnect the L64 connector to the parking assist ECU.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      L64-11 (CV-) - Body ground Always Below 1 Ω
      L64-13 (CGND) - Body ground Always Below 1 Ω

    NG
    OK
  3. CHECK REAR TELEVISION CAMERA ASSEMBLY (CB+, CGND)


    1. Disconnect the V6 connector from the rear television camera assembly.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      V6-3 (CGND) - V6-4 (CB+)

      Power switch on (IG)

      Shift lever in R

      5.8 to 7.0 V

    NG
    OK
  4. CHECK PARKING ASSIST ECU (CV+, GND1)


    1. Reconnect the V6 connector to the rear television camera assembly.

    2. A01JC0QE05

      Reconnect the L64 and L65 connectors to the parking assist ECU.

    3. A01JBFZE02
      Text in Illustration
      *1

      Component with harness connected

      (Parking Assist ECU)

      *2 Waveform 1 (under normal conditions)
      *3 Waveform 2 (camera lens is covered, blacking out the screen)
      *4 Synchronized Signal
      *5 Video Waveform

      Check the waveform of the rear television camera assembly using an oscilloscope.

      Tech Tips

      A waterproof connector is used for the rear television camera assembly. Therefore, inspect the waveform at the parking assist ECU with the connector connected.

      OK
      Waveform is as shown in the illustration.
      Item Content
      Terminal No. (Symbol) L64-12 (CV+) - L65-3 (GND1)
      Tool Setting 200 mV/DIV., 50 μsec./DIV.
      Condition Power switch on (IG), shift lever in R

      Tech Tips

      The video waveform changes according to the image sent by the rear television camera assembly.


    NG
    OK
