NAVIGATION SYSTEM (for HDD) Audio cannot be Recorded to HDD

DESCRIPTION

Tech Tips

The HDD is compliant with the Serial Copy Management System (SCMS). Therefore, recording from a CD-R that is a copy of a commercially published music CD is not possible.

INSPECTION PROCEDURE

PROCEDURE


  1. CHECK SOUND LIBRARY SETTING OF HDD ON SOUND LIBRARY INFORMATION SCREEN

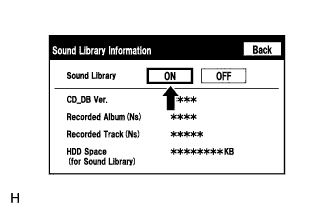

    1. A01J9KM

      Enter the "Sound Library Information" screen. Refer to Check Sound Library Setting in Operation Check Click here.

    2. Select "ON" for the "Sound Library" setting.

    3. Check if recording is possible.

      OK
      Malfunction disappears.

    NG

    CHECK FREE SPACE IN HDD Click here

    OK

    END

  2. CHECK FREE SPACE IN HDD

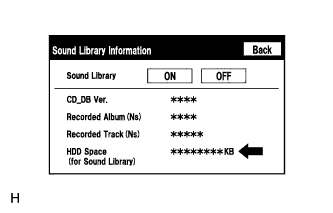

    1. A01J8NT

      Enter the "Sound Library Information" screen. Refer to Check Sound Library Setting in Operation Check Click here.

    2. Check free space in HDD from the sound library setting screen.

      Result
      Result Proceed to
      Insufficient space in HDD A
      Sufficient space in HDD B

    B

    CHECK IF AUDIO POWER IS ON Click here

    A

    DELETE UNNECESSARY DATA FROM HDD

  3. CHECK IF AUDIO POWER IS ON


    1. Check if the audio power is on.

      Tech Tips

      When the audio is off, audio recording is not possible.

      OK
      Audio power is on.

    NG

    TURN AUDIO ON

    OK

  4. CHECK IF RECORDING SETTING IS SET TO AUTO


    1. Check if the recording setting is set to AUTO.

      Tech Tips

      When the recording setting is set to manual, recording does not start automatically after a CD is inserted.

      OK
      Recording setting is set to AUTO.

    NG

    CHANGE RECORDING SETTING TO AUTO

    OK

  5. CHECK CD


    1. A01JBVV

      Check that the disc is not deformed or cracked.

      OK
      No deformation or cracks on the CD

    NG

    CHANGE CD

    OK

  6. CLEAN CD AND RECHECK CD


    1. A01JARE

      Check the disc by wiping it clean with a soft cloth from the inside to the outside in a radial direction.

      OK
      Malfunction disappears.

      Note

      Do not use a conventional record cleaner or anti-static preservative.


    NG

    CHECK USING ANOTHER VEHICLE WITH HDD NAVIGATION SYSTEM Click here

    OK

    END

  7. CHECK USING ANOTHER VEHICLE WITH HDD NAVIGATION SYSTEM


    1. Check if the CD plays normally using another vehicle with the HDD navigation system.

      OK
      Malfunction disappears.

    NG

    CD WAS FAULTY

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here
