NAVIGATION SYSTEM (for Navigation Receiver Type) OPERATION CHECK


  1. CHECK NAVIGATION SYSTEM NORMAL CONDITION


    1. If the symptom is applicable to any of the following, it is intended behavior, and not a malfunction.

      Symptom Answer
      A longer route than expected is chosen. Depending on the road conditions, the navigation receiver assembly may determine that a longer route is quicker.
      Even when distance priority is high, the shortest route is not shown. Some routes may not be advised due to safety concerns.
      When the vehicle is put into motion immediately after the engine starts, the navigation system deviates from the correct position. If the vehicle starts before the navigation system activates, the system may not react.
      When driving on certain types of roads, especially new roads, the vehicle position deviates from the correct position. When the vehicle is driving on new roads not available on the hard disk drive, the system attempts to match it to another nearby road, causing the position mark to deviate.
    2. A01JCS7

      The following symptoms are not malfunctions, but are caused by errors inherent in the GPS, gyro sensor, speed sensor or navigation receiver assembly.


      1. The current position mark may be displayed on a nearby parallel road.

      2. A01JAWJ

        Immediately after a fork in the road, the current vehicle position mark may be displayed on the wrong road.

      3. A01J8JW

        When the vehicle turns right or left at an intersection, the current vehicle position mark may be displayed on a nearby parallel road.

      4. A01JD9Z

        When the vehicle is carried, such as on a ferry, and the vehicle itself is not driving, the current vehicle position mark may be displayed in the position where the vehicle was until a measurement can be performed by the GPS.

      5. A01J9FK

        When the vehicle travels on a steep hill, the current vehicle position mark may deviate from the correct position.

      6. A01J9V2

        When the vehicle makes a continuous turn (e.g. 360, 720, 1080 degrees), the current vehicle position mark may deviate from the correct position.

      7. A01J8NM

        When the vehicle moves erratically, such as constant lane changes, the current vehicle position mark may deviate from the correct position.

      8. A01JAUE

        When the power switch is turned on (ACC or IG) and the vehicle is turned on a turntable before parking, the current vehicle position mark may not indicate the correct direction. The same will occur when the vehicle comes out of the parking garage.

      9. A01JB0Q

        When the vehicle travels on a snowy road or a mountain path with tire chains installed or using a spare tire, the current vehicle position mark may deviate from the correct position.

      10. A01J8YS

        When the tires are changed, the current vehicle position mark may deviate from the correct position.

        Tech Tips


        • A change in tire diameter may cause a speed sensor error.

        • Performing "tire change" in calibration mode will allow the system to correct the current vehicle position faster.

  2. CHECK HARD DISK DRIVE

    Tech Tips


    • Check the hard disk drive (HDD) built into the navigation receiver assembly.

    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.


    1. Enter diagnostic mode Click here.

    2. A01JC1U

      Select "Failure Diagnosis" from the "Service Menu" screen.

    3. A01JB8O

      Select "HDD Check" from the "Failure Diagnosis" screen.

    4. A01JD4QE01
      Text in Illustration
      *a Result

      HDD Check


      1. Select "HDD Check" to start the HDD check.

      2. Check that the result is displayed when the HDD check is completed.

        Screen Description
        Display (Result) Description
        Checking Check is in progress
        OK Hard disk drive is normal
        NG Hard disk drive is malfunctioning

        Tech Tips


        • After selecting "HDD Check", it may take a while until the result is displayed.

        • If the cabin temperature is -20°C (-4°F) or lower, or 65°C (149°F) or higher, the HDD may not operate normally, and "NG" may be shown on the display. Make sure to perform the inspection with the cabin at an appropriate temperature.

        • If "NG" is displayed even when the cabin temperature is appropriate, replace the HDD with a new one.

  3. CHECK PANEL & STEERING SWITCH

    Tech Tips


    • The navigation receiver assembly panel switches and steering switches are checked in the following procedure.

    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.


    1. Enter diagnostic mode Click here.

    2. A01JBA4

      Select "Function Check/Setting" from the "Service Menu" screen.

    3. A01JC8K

      Select "Panel & Steering Switch" from the "Function Check/Setting I" screen.

    4. A01JCIBE01

      Panel & Steering Switch Check Mode

      Screen Description
      Display Content
      *a: Switch condition "Pushed" is displayed when any switch is pushed
      *b: Number of switches pushed

      • Number of switches pushed at once is displayed

      • If more than 3 switches are pushed at once, "More than 3" is displayed
      *c: Rotary switch direction Direction of rotary switch is displayed

      1. Operate each switch and check that the switch conditions are correctly displayed.

        Note

        When the "SETUP" switch is pressed and held for 3 seconds or more, diagnostic mode will be canceled.

  4. CHECK TOUCH SWITCH

    Tech Tips


    • The touch switches on the screen are checked in the following procedure.

    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.


    1. Enter diagnostic mode Click here.

    2. A01JBA4

      Select "Function Check/Setting" from the "Service Menu" screen.

    3. A01JADI

      Select "Touch Switch" from the "Function Check/Setting I" screen.

    4. Touch Switch Check


      1. A01JD4P

        Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

        Tech Tips


        • A "+" mark is displayed where the display is touched.

        • The "+" mark remains on the display even after the finger is removed.

  5. CHECK MIC & VOICE RECOGNITION

    Tech Tips


    • The microphone and microphone input level are checked in the following procedure.

    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.


    1. Enter diagnostic mode Click here.

    2. A01JBA4

      Select "Function Check/Setting" from the "Service Menu" screen.

    3. A01J9Y2

      Select "Mic & Voice Recognition" from the "Function Check/Setting I" screen.

    4. A01JD0AE13

      Microphone & Voice Recognition Check

      Screen Description
      Display Content
      *a: Microphone input level meter Monitors the microphone input level every 0.1 seconds and displays the results in 8 different levels.
      *b: Recording switch Starts recording.
      *c: Stop switch Stops recording and playing.
      *d: Play switch Plays the recorded voice.
      *e: Recording indicator Comes on while recording.

      1. When speaking into the microphone, check that the microphone input level meter changes according to the input level.

        Tech Tips

        The microphone is active at all times when this screen is displayed.

      2. Push the recording switch and perform voice recording.

        Tech Tips


        • Select the recording switch with the blower motor of the air conditioning system stopped. If an outlet of the air conditioning system is facing the microphone, noise may be recorded.

        • While recording or playing, the switches other than the stop switch cannot be pushed.

        • When no recording is present, the play switch cannot be pushed.

        • Recording will stop after 5 seconds or when the stop switch is pushed.

      3. Check that the recording indicator remains on while recording and that the recording can be played normally.

  6. CHECK COLOR BAR

    Tech Tips


    • The display color on the screen is checked in the following procedure.

    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.


    1. Enter diagnostic mode Click here.

    2. A01JBA4

      Select "Function Check/Setting" from the "Service Menu" screen.

    3. A01JBY6

      Select "Color Bar" from the "Function Check/Setting I" screen.

    4. Color Bar Check Mode


      1. A01JC5R

        Select a color bar from the "Color Bar Check Mode" screen.

      2. Check the display color.

        Tech Tips


        • The entire screen turns to the color or stripe selected.

        • Touching the display will return to the "Color Bar Check Mode" screen.

  7. CHECK GPS & VEHICLE SENSORS

    Tech Tips


    • GPS information, vehicle signals and sensor signals are checked in the following procedure.

    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.


    1. Enter diagnostic mode Click here.

    2. A01JBA4

      Select "Function Check/Setting" from the "Service Menu" screen.

    3. A01J9UZ

      Select "GPS & Vehicle Sensors" from the "Function Check/Setting I" screen.

    4. A01J8L2E01

      GPS Information

      *a: Satellite Information Description
      Display Content
      No. Number of the target GPS satellite.
      Elv Elevation angle of the target GPS satellite.
      Azm Direction of the target GPS satellite
      LVL The GPS signal level
      *b: Receiving condition Description
      Display Content
      P The system is using the GPS signal for location.
      T The system is tracking the GPS signal for location.
      U The system is receiving a GPS signal, but is not using it for location.
      - The system cannot receive a GPS signal. (Searching for a GPS Signal)
      *c: Measurement Status Description
      Display Content
      OK (H3D) High accuracy 3-dimensional location method is being used.
      OK (H2D) High accuracy 2-dimensional location method is being used.
      OK (3D) 3-dimensional location method is being used.
      OK (2D) 2-dimensional location method is being used.
      NG Location data cannot be used.
      error Reception error has occurred.
      - Any other state.
      *d: Position Information Description
      Display Content
      Position Latitude and longitude information on the current position is displayed.
      *e: Date information Description
      Display Content
      Date The date/time information obtained from GPS signals is displayed in Greenwich Mean Time (GMT).

      Tech Tips


      • This screen is updated once per second.

      • Information from a maximum of 12 satellites is displayed on the screen.


      1. When the "GPS Information" screen is displayed, check the GPS conditions.

    5. Select "Sensors Check" from the "GPS Information" screen.

    6. A01JCQKE01

      Vehicle Sensors

      Screen Description
      Display Content
      *a: Vehicle signal Vehicle speed signal condition is displayed.
      *b: Sensor signal Gyro sensor output condition is displayed.

      Tech Tips

      This screen is updated once per second.


      1. Check all the signals and sensors when vehicle signal information is displayed.

  8. CHECK VEHICLE SIGNAL

    Tech Tips


    • Vehicle signals received by the navigation receiver assembly are checked in the following procedure.

    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.


    1. Enter diagnostic mode Click here.

    2. A01JBA4

      Select "Function Check/Setting" from the "Service Menu" screen.

    3. A01JC5N

      Select "Vehicle Signal" from the "Function Check/Setting I" screen.

    4. A01J8KP

      Vehicle Signal Check Mode

      Screen Description
      Display Content
      Battery Auxiliary battery voltage is displayed.
      IG Power switch ON/OFF state is displayed.
      PKB Parking brake ON/OFF state is displayed.
      REV Reverse signal ON/OFF state is displayed.
      SPEED Vehicle speed is displayed in km/h.
      TAIL Tail signal (Light control switch) ON/OFF state is displayed.
      ADIM/TCAN Brightness state DIM (with) / BRIGHT (without) is displayed.

      Tech Tips


      • Only items sending vehicle signals will be displayed.

      • This screen displays vehicle signals input to the navigation receiver assembly.

      • This screen is updated once per second when vehicle input signals change.


      1. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

  9. CHECK HANDS-FREE VOICE QUALITY AND VOLUME SETTING

    Note


    • Adjustment of the settings is required for each registered cellular phone.

    • If no cellular phone has been registered, all switches cannot be selected.

    Tech Tips


    • The hands-free volume of a "Bluetooth" compatible phone can be adjusted using the following procedure.

    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.


    1. Enter diagnostic mode Click here.

    2. A01JBA4

      Select "Function Check/Setting" from the "Service Menu" screen.

    3. A01J93H

      Select "HF Voice Quality Setting" from the "Function Check/Setting I" screen.

    4. A01JC3RE01

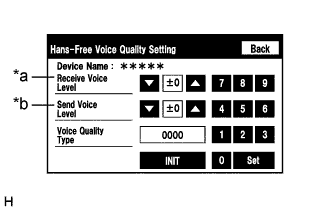

      Hands-Free Voice Quality Setting (Receive/Send Voice Level adjustment)

      Screen Description
      Display Content
      *a: Receive voice level adjustment Setting for the voice level received from "Bluetooth" compatible phones.
      *b: Send voice level adjustment Setting for the voice level sent from "Bluetooth" compatible phones.

      Note

      Sound quality may deteriorate when the receive voice or send voice level is changed more than necessary. For this reason, check that the received voice or sent voice quality is still acceptable after changing this setting.


      1. If the voice level is low, press the up button, and if the voice level is loud, press the down button.

        Tech Tips


        • Settings will be applied when the up or down button is selected.

        • The received voice level adjustment ranges from -5 to +1.

        • The sent voice level adjustment ranges from -5 to +4.

        • The initial level is "0".

    5. A01JCS0E01

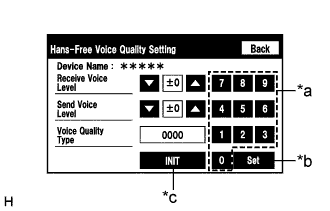

      Screen Description
      *a Numeric keypad
      *b Setting button
      *c Reset button

      Hands-Free Voice Quality Setting (Voice Quality Type adjustment)


      1. If necessary, refer to the table below to adjust the voice quality type with the numeric keypad.

      2. When adjusting the settings, use the number pad on the screen to input the voice quality type according to the table.

        Settings
        Parameter Target Phenomenon Voice Quality Type Positive Effect of Changing Voice Quality Negative Effect of Changing Voice Quality

        A

        (Noise)

        		 The change in background noise the other party hears becomes unpleasant. 1000 The change in background noise the other party hears is reduced. Background noise when not talking becomes large.

        B

        (Noise)

        		 The volume of the noise the other party hears temporarily becomes large. 2000 The temporary noise is reduced. The volume of voice may drop temporarily.

        C

        (Echo)

        		 The other party hears weak echoes. 0100 The amount of echo is reduced (low level). Sound quality of the other party deteriorates (low level).

        D

        (Echo)

        		 The other party hears strong echoes. 0200 The amount of echo is reduced (high level). Sound quality of the other party deteriorates (high level).

        E

        (Quality)

        		 The other party hears harsh noises. 0010 Sound the other party hears becomes soft. Sound the other party hears becomes muffled.

        F

        (Quality)

        		 You hear harsh noises. 0020 Sound you hear becomes soft. Sound you hear becomes muffled.
        Settings (When multiple phenomenon occurred)
        Parameter Target Phenomenon Voice Quality Type Positive Effect of Changing Voice Quality Negative Effect of Changing Voice Quality
        A+C The change in background noise the other party hears becomes unpleasant and the other party hears weak echoes. 1100

        • The change in background noise the other party hears is reduced.

        • The amount of echo is reduced (low level).

        • Background noise when not talking becomes large.

        • Sound quality of the other party deteriorates (low level).
        A+D The change in background noise the other party hears becomes unpleasant and the other party hears strong echoes. 1200

        • The change in background noise the other party hears is reduced.

        • The amount of echo is reduced (high level).

        • Background noise when not talking becomes large.

        • Sound quality of the other party deteriorates (high level).
        B+C The volume of the noise the other party hears temporarily becomes large and the other party hears weak echoes. 2100

        • The temporary noise is reduced.

        • The amount of echo is reduced (low level).

        • The volume of voice may drop temporarily.

        • Sound quality of the other party deteriorates (low level).
        B+D The volume of the noise the other party hears temporarily becomes large and the other party hears strong echoes. 2200

        • The temporary noise is reduced.

        • The amount of echo is reduced (high level).

        • The volume of voice may drop temporarily.

        • Sound quality of the other party deteriorates (high level).
        C+E The other party hears weak echoes and harsh noises. 0110

        • The amount of echo is reduced (low level).

        • Sound the other party hears becomes soft.

        • Sound quality of the other party deteriorates (low level).

        • Sound the other party hears becomes muffled.
        C+F The other party hears weak echoes and you hear harsh noises. 0120

        • The amount of echo is reduced (low level).

        • Sound you hear becomes soft.

        • Sound quality of the other party deteriorates (low level).

        • Sound you hear becomes muffled.

        Tech Tips


        • The default value is "0000".

        • Settings will be applied when the setting button is selected.

        • If voice quality type values that are not in the table are input, the setting will not be applied and a positive effect may not be gained.

        • If the quality of phone calls decreases due to the changed settings, return the settings to "0000" by pressing the "INIT" switch.

  10. CHECK DAB RECEPTION (w/ DAB Function)

    Tech Tips


    • The reception condition of DAB (Digital Audio Broadcast) can be checked.

    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.


    1. Enter diagnostic mode Click here.

    2. A01JBA4

      Select "Function Check/Setting" from the "Service Menu" screen.

    3. A01JBFR

      Select "Next Page" from the "Function Check/Setting I" screen.

    4. A01J8D4

      Select "DAB Reception Check" from the "Function Check/Setting II" screen.

    5. A01J92HE02

      Select "DAB Reception Check" from the "Function Check/Setting II" screen.

      *a: Channel Change Switch Description
      Display Content
      Up or down button Enables the channel to be changed to the one to be checked.
      *b: Check Switch Description
      Display Condition Content
      Check Before/after check Starts checking
      STOP During check Stops checking
      *c: Antenna Connection Check Result Description
      Display Content
      OK Connected properly
      NG Not connected properly
      - Not equipped with DAB antenna.
      *d: DAB Tuner Reception Level Check Result Description
      Display Content
      Black Good reception
      Red Poor reception
      - Not equipped with DAB antenna.

      1. Select the "Check" button to start the DAB reception check.

      2. Check that the result is displayed when the DAB reception check is performed.

  11. CLEAR PASSWORD OF EXPORT/IMPORT MEMORY POINT FUNCTION

    Tech Tips


    • This function allows the initialization of a password which was set on the navigation ECU sub-assembly when exporting/importing memory points.

    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.


    1. Enter diagnostic mode Click here.

    2. A01J9C1

      Select "Service Information" from the "Service Menu" screen.

    3. A01JB9H

      Select "Memory point backup" from the "Service Information" screen.

    4. A01JA1R

      Clear backup password

      Tech Tips

      Depending on the manufacturer, some component names and versions will be displayed differently.


      1. Select "Clear backup password".

  12. CHECK SOFTWARE ERROR HISTORY

    Tech Tips

    This function is used to check the cause when the navigation ECU sub-assembly screen is blacked out.


    1. Check software error history.


      1. Connect the intelligent tester to the DLC3.

      2. Turn the power switch on (READY).

      3. Turn the intelligent tester on.

      4. Enter the following menus: Body / Navigation System / Utility / Software Error History.

      5. When an item is stored for Software Error History, record it before repairing the navigation ECU sub-assembly.

        Software Error History Screen Description
        Error Description Trigger Detail
        Software Reset Navi Microcomputer Hexadecimal Number
        Audio Microcomputer
        CAN Microcomputer
        No Video Signal Front Monitor
        Rear Monitor
        MOST Cold Restart Always

        Tech Tips


        • Software Error History can store up to 5 history data items. If a new software error occurs when 5 data items have already been stored, the oldest data is cleared and the new data is stored.

        • If an error that is unsupported by the intelligent tester occurs, a "-" is displayed for the display items.

    2. Clear software error history.


      1. When DTCs are cleared using any of the following operations, Software Error History will be cleared as well Click here.


        • Cleared using the intelligent tester.

        • Cleared using the system check mode screen.

        • Cleared using the unit check mode screen.

  13. CHECK OPTICAL DISC ERROR HISTORY

    Tech Tips

    This function is used to check the cause when an optical disc error occurs.


    1. Check optical disc error history.


      1. Connect the intelligent tester to the DLC3.

      2. Turn the power switch on (READY).

      3. Turn the intelligent tester on.

      4. Enter the following menus: Body / Navigation System / Utility / Optical Disc Error History.

      5. When an item is stored for Optical Disc Error History, record it before proceeding with troubleshooting.

        Optical Disc Error History Screen Description
        Display Content
        Error Type Displays the type of error.
        Device Displays the malfunctioning device.
        Date Displays the date and time that the malfunction occurred.
        "Error Type" Screen Description
        Error Type Detection Condition Action
        Read Error When a disc read error occurs.

        Proceed to next suspected area shown in Problem Symptoms Table Click here

        Disc damaged/up side down/dirty

        When it is determined that any of the following is the cause of the disc read error:


        • The disc cannot be read.

        • The disc cannot be read because of dirt or scratches.

        • The disc cannot be read because it is inserted upside down.
        Cannot determine disc type An unsuitable disc is inserted.
        DPS error When an error occurs while decoding MP3/WMA files.
        Some files are corrupt

        • When MP3/WMA files cannot be played back because they are unsupported.

        • Even though the file extensions are MP3 or WMA, files cannot be played back because the header information cannot be read.
        Some files cannot be found

        • When a disc without music data is played back.

        • When there are no playable MP3/WMA files.
        Copy protection violation When a file with copyright protection that cannot be played back is played back.
        "Device" Screen Description
        Device Component
        DVD-P Navigation ECU sub-assembly
        CD-P Navigation ECU sub-assembly
        R-Seat DVD-P Not available

        Tech Tips


        • Optical Disc Error History can store up to 7 history data items. If a new optical disc error occurs when 7 data items have already been stored, the oldest data is cleared and the new data is stored.

        • If an error that is unsupported by the intelligent tester occurs, a "-" or blank is displayed for the display items.

    2. Clear optical disc error history.


      1. When DTCs are cleared using any of the following operations, Optical Disc Error History will be cleared as well Click here.


        • Cleared using the intelligent tester.

        • Cleared using the system check mode screen.

        • Cleared using the unit check mode screen.

  14. MAP INFORMATION

    Tech Tips

    This function is used to check the map version of the navigation system and the end date of the map update service.


    1. Check map information.


      1. Connect the intelligent tester to the DLC3.

      2. Turn the power switch on (READY).

      3. Turn the intelligent tester on.

      4. Enter the following menus: Body / Navigation System / Utility / Map Information.

      5. Check the map version and the end date of the map update service.
