RELAY REMOVAL


  1. REMOVE RADIATOR SUPPORT OPENING COVER


    1. A00OKW2

      Remove the 7 clips and radiator support opening cover.

  2. REMOVE FRONT BUMPER COVER


    1. A00OLT9E01

      Using a screwdriver, turn the pin hold clip 90° and remove the pin hold clip and screw.

      Tech Tips

      Use the same procedure for both pin hold clips and screws.

    2. A00OIPJ

      Remove the 9 screws.

    3. A00OHR9

      Remove the 2 clips and 3 bolts.

    4. A00OIJ8E01
      Text in Illustration
      *1 Protective Tape

      Put protective tape around the front bumper cover.

    5. A00OMZK

      Detach the 10 claws and remove the front bumper cover.

    6. w/ Fog Light:

      Disconnect the 2 fog light connectors.

    7. w/ Headlight Cleaner System:

      Disconnect the headlight washer hose, and then drain the washer fluid.

      Tech Tips

      Use a container to collect the washer fluid.

  3. DRAIN WASHER FLUID


    1. A00OIW2E01
      Text in Illustration
      *1 Headlight Cleaner Motor and Pump Assembly
      *2 Headlight Cleaner Hose

      Release the lock as shown in the illustration.

    2. Disconnect the headlight cleaner hose from the headlight cleaner motor and pump assembly, and drain the washer fluid.

  4. REMOVE HEADLIGHT CLEANER CONTROL RELAY

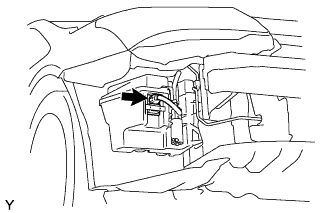

    1. A00OM9F

      Disconnect the connector.

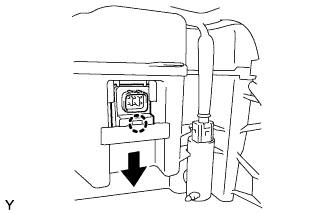

    2. A00OKSK

      Detach the claw and remove the headlight cleaner control relay.
