FRONT CONSOLE BOX (w/ Console Box Lid) REASSEMBLY


  1. INSTALL INSTRUMENT PANEL CUP HOLDER ASSEMBLY


    1. A00ONR8

      Using a T20 "TORX" socket wrench, install the instrument panel cup holder with the 4 "TORX" screws.

  2. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY


    1. A00OMNI

      Attach the 4 hooks to install the console compartment door lock.

    2. Install the 2 screws.

  3. INSTALL REAR CONSOLE ARMREST LID

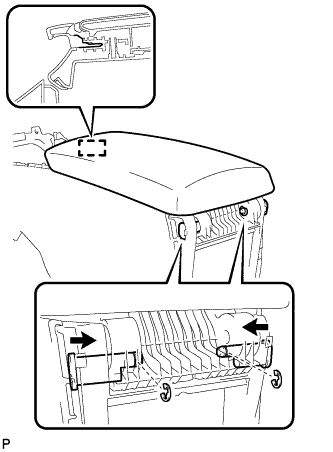

    1. A00OINP

      Install the 2 shafts.

    2. Install the 2 E-rings.

    3. Attach the lock to install the rear console armrest lid.

  4. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY

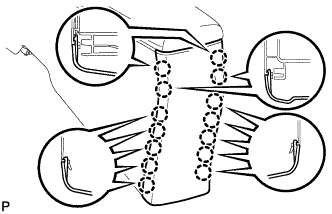

    1. A00OIIG

      Attach the 14 claws to install the end rear console end panel.

      Tech Tips

      The panel is easier to install by attaching the claws from the top to the bottom.

  5. INSTALL BOX BOTTOM PANEL


    1. Attach the 4 claws to install the box bottom panel.

      A00OMVDE01
