TIRE PRESSURE WARNING SYSTEM TC and CG Terminal Circuit

DESCRIPTION

Tire pressure warning system DTCs can be checked by connecting terminals 13 (TC) and 4 (CG) of the DLC3. The DTCs are indicated by blinking the tire pressure warning light.

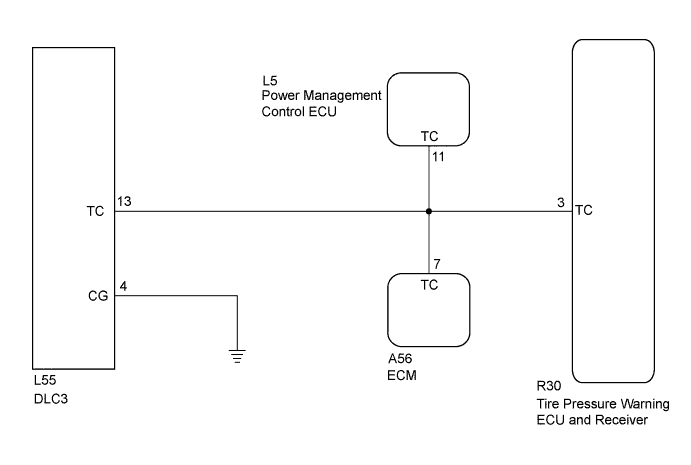

WIRING DIAGRAM

A004374E04

INSPECTION PROCEDURE

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (TC of DLC3 - TIRE PRESSURE WARNING ECU AND RECEIVER, ECM AND POWER MANAGEMENT CONTROL ECU)


    1. Disconnect the R30 tire pressure warning ECU and receiver connector.

    2. Disconnect the A56 ECM connector.

    3. Disconnect the L5 power management control ECU connector.

    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      R30-3 (TC) - L55-13 (TC) Always Below 1 Ω
      R30-3 (TC), A56-7 (TC), L5-11 (TC) or L55-13 (TC) - Body ground Always 10 kΩ or higher

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  2. CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)

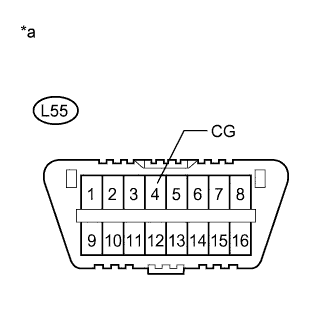

    1. A0040BXE12
      Text in Illustration
      *a Front view of DLC3

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      L55-4 (CG) - Body ground Always Below 1 Ω

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here
