TIRE PRESSURE WARNING SYSTEM ECU Power Source Circuit

DESCRIPTION

The IG circuit is the power source for the tire pressure warning ECU and receiver.

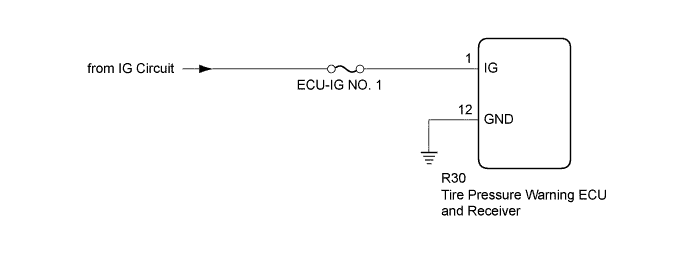

WIRING DIAGRAM

A0041VOE11

INSPECTION PROCEDURE

Note


  • When replacing the tire pressure warning ECU and receiver, read the transmitter IDs stored in the old ECU using the GTS and write them down before removal.

  • It is necessary to perform initialization Click here after registration Click here of the transmitter IDs into the tire pressure warning ECU and receiver if the ECU has been replaced.

Tech Tips

Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (ECU - AUXILIARY BATTERY AND BODY GROUND)

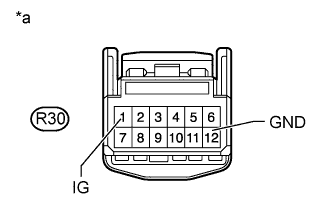

    1. A004400E23
      Text in Illustration
      *a

      Front view of wire harness connector

      (to Tire Pressure Warning ECU and Receiver)

      Disconnect the R30 tire pressure warning ECU and receiver connector.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      R30-1 (IG) - Body ground Power switch on (IG) 10 to 16 V
      Power switch off Below 1 V

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      R30-12 (GND) - Body ground Always Below 1 Ω

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER Click here
