REAR NO. 1 SEAT ASSEMBLY (for LH Side) REASSEMBLY

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


  1. INSTALL NO. 1 FOLD SEAT STOPPER BAND ASSEMBLY

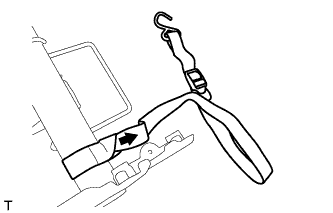

    1. A01J74L

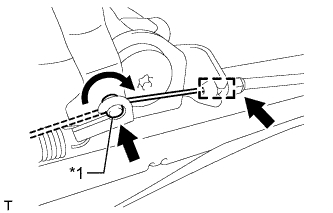

      Tie the No. 1 fold seat stopper band assembly to the No. 1 seat cushion frame sub-assembly LH as shown in the illustration to install the No. 1 fold seat stopper band assembly.

  2. INSTALL REAR NO. 1 SEAT CUSHION PAD LH

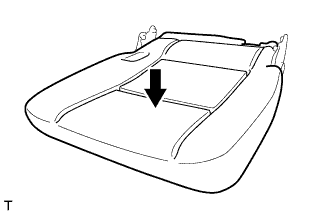

    1. A01J33Q

      Install the rear No. 1 seat cushion pad LH to the rear No. 1 seat cushion frame sub-assembly.

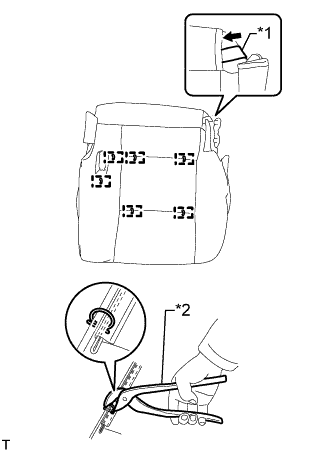

  3. INSTALL REAR NO. 1 SEAT CUSHION COVER

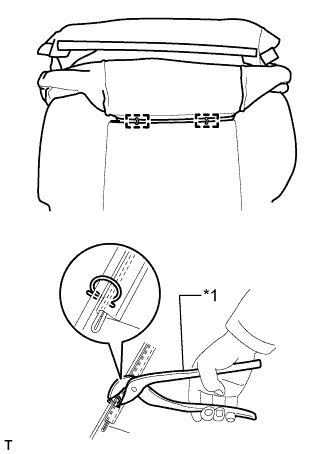

    A01J3KKE01
    Text in Illustration
    *1 No. 1 Fold Seat Stopper Band Assembly
    *2 Hog Ring Pliers

    1. Using hog ring pliers, install the rear No. 1 seat cushion cover to the No. 1 seat cushion pad LH with new hog rings.

      Note


      • Be careful not to damage the cover.

      • When installing the hog rings, avoid wrinkling the cover.

    2. Insert the No. 1 fold seat stopper band assembly into the rear No. 1 seat cushion cover.

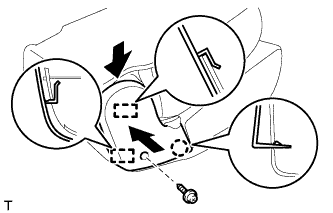

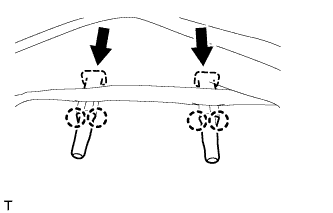

  4. INSTALL REAR SEAT CUSHION UNDER COVER SUB-ASSEMBLY LH


    1. Attach the 2 guides.

    2. Install the rear seat cushion under cover sub-assembly with the 5 screws.

    3. Attach the hooks.

  5. INSTALL REAR SEAT TRACK ASSEMBLY LH

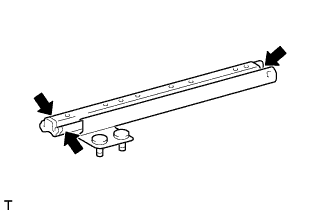

    1. A01J7BK

      Apply MP grease to the locations of the outer seat track assembly LH shown in the illustration.

      Text in Illustration
      A01J5O1 MP Grease
    2. A01J66H

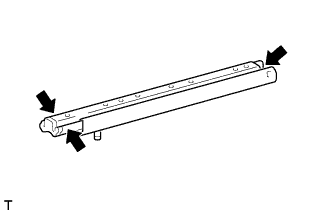

      Apply MP grease to the locations of the inner seat track assembly LH shown in the illustration.

      Text in Illustration
      A01J5O1 MP Grease
    3. A01J61P

      Apply MP grease to the locations of the seat track adjusting handle shown in the illustration.

      Text in Illustration
      A01J5O1 MP Grease

    4. If reusing the outer seat track assembly LH and inner seat track assembly LH:


      1. A01J38J

        Using a T40 "TORX" socket wrench, temporarily install the front side of the outer seat track assembly LH with the "TORX" bolt.

      2. A01J6T9

        Using a T40 "TORX" socket wrench, temporarily install the front side of the inner seat track assembly LH with the "TORX" bolt.

      3. Push the seat track adjusting handle into the outer seat track assembly LH and inner seat track assembly LH and engage the 2 seat track adjusting handle locks to install the seat track adjusting handle.

        Note

        Make sure the handle is straight when installing it, and check that it is centered.

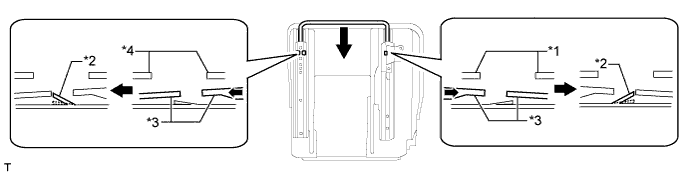

        A01J4E0E01
        Text in Illustration
        *1 Outer Seat Track Assembly LH *2 Seat Track Adjusting Handle Lock
        *3 Seat Track Adjusting Handle *4 Inner Seat Track Assembly LH
      4. A01J6N9

        Operate the seat track adjusting handle and move the outer seat track assembly LH and inner seat track assembly LH to the foremost position.

      5. Using a T40 "TORX" socket wrench, install the rear side of the outer seat track assembly LH and inner seat track assembly LH with the 4 "TORX" bolts.

        Torque:
        40 N*m  { 408 kgf*cm, 30 ft.*lbf }

      6. Operate the seat track adjusting handle and move the outer seat track assembly LH and inner seat track assembly LH to the position shown in the illustration.

        A01J75ZE01
        Text in Illustration
        *1 Seat Track Adjusting Handle Lock *2 Outer Seat Track Assembly LH
        *3 Inner Seat Track Assembly LH *4 Seat Track Adjusting Handle

      7. Insert a screwdriver into the outer seat track assembly LH and disengage the lock of the seat track adjusting handle. While maintaining that state, pull out the seat track adjusting handle to the position shown in the illustration, and then remove the screwdriver.

        Note

        Do not use excessive force to pull out the seat track adjusting handle.

        A01J4HZE01
        Text in Illustration
        *1 Screwdriver *2 Outer Seat Track Assembly LH
        *3 Seat Track Adjusting Handle Lock *4 Seat Track Adjusting Handle

      8. Insert a screwdriver into the inner seat track assembly LH and disengage the lock of the seat track adjusting handle. While maintaining that state, pull out the seat track adjusting handle to the position shown in the illustration, and then remove the screwdriver.

        Note

        Do not use excessive force to pull out the seat track adjusting handle.

        A01J46CE01
        Text in Illustration
        *1 Screwdriver *2 Inner Seat Track Assembly LH
        *3 Seat Track Adjusting Handle Lock *4 Seat Track Adjusting Handle
      9. A01J6Z6

        Pull and remove the seat track adjusting handle from the outer seat track assembly LH and inner seat track assembly LH.

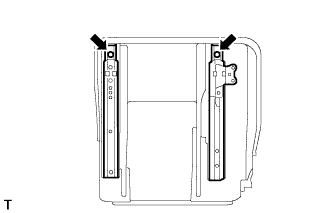

      10. A01J4US

        Using a T40 "TORX" socket wrench, tighten the 2 "TORX" bolts on the front side of the outer seat track assembly LH and inner seat track assembly LH.

        Torque:
        40 N*m  { 408 kgf*cm, 30 ft.*lbf }

      11. Push the seat track adjusting handle into the outer seat track assembly LH and inner seat track assembly LH and engage the 2 seat track adjusting handle locks to install the seat track adjusting handle.

        Note

        Make sure the handle is straight when installing it, and check that it is centered.

        A01J4E0E01
        Text in Illustration
        *1 Outer Seat Track Assembly LH *2 Seat Track Adjusting Handle Lock
        *3 Seat Track Adjusting Handle *4 Inner Seat Track Assembly LH

    5. If replacing the outer seat track assembly LH with a new one but reusing the inner seat track assembly LH:


      1. A01J6PX

        Using a T40 "TORX" socket wrench, temporarily install the rear side of a new outer seat track assembly LH with the 2 "TORX" bolts.

      2. A01J6T9

        Using a T40 "TORX" socket wrench, temporarily install the front side of the inner seat track assembly LH with the "TORX" bolt.

      3. Push the seat track adjusting handle into the outer seat track assembly LH and engage the seat track adjusting handle lock to install the seat track adjusting handle.

        Note

        Make sure the handle is straight when installing it, and check that it is centered.

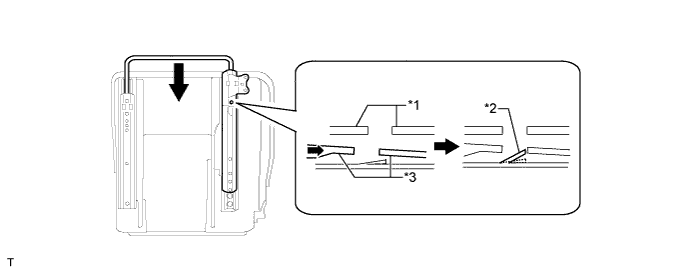

        A01J3IIE01
        Text in Illustration
        *1 Outer Seat Track Assembly LH *2 Seat Track Adjusting Handle Lock
        *3 Seat Track Adjusting Handle - -

      4. Operate the seat track adjusting handle and, while moving the outer seat track assembly LH toward the rearmost position, insert the handle into the inner seat track assembly LH and engage the lock of the seat track adjusting handle to install the handle.

        Note

        Make sure the handle is straight when installing it, and check that it is centered.

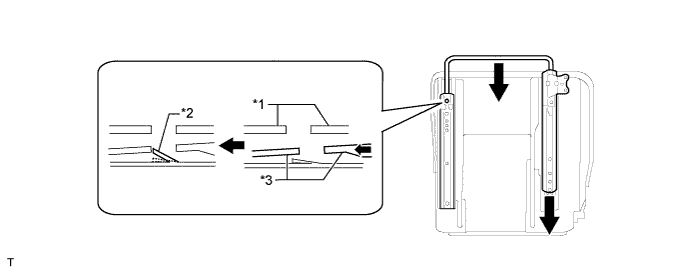

        A01J5NME01
        Text in Illustration
        *1 Inner Seat Track Assembly LH *2 Seat Track Adjusting Handle Lock
        *3 Seat Track Adjusting Handle - -

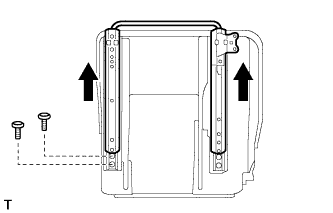

      5. A01J4ZK

        Operate the seat track adjusting handle and move the outer seat track assembly LH and inner seat track assembly LH to the foremost position.

      6. Using a T40 "TORX" socket wrench, install the rear side of the inner seat track assembly LH with the 2 "TORX" bolts.

        Torque:
        40 N*m  { 408 kgf*cm, 30 ft.*lbf }

      7. Operate the seat track adjusting handle and move the outer seat track assembly LH and inner seat track assembly LH to the position shown in the illustration.

        A01J75ZE01
        Text in Illustration
        *1 Seat Track Adjusting Handle Lock *2 Outer Seat Track Assembly LH
        *3 Inner Seat Track Assembly LH *4 Seat Track Adjusting Handle

      8. Insert a screwdriver into the outer seat track assembly LH and disengage the lock of the seat track adjusting handle. While maintaining that state, pull out the seat track adjusting handle to the position shown in the illustration, and then remove the screwdriver.

        Note

        Do not use excessive force to pull out the seat track adjusting handle.

        A01J4HZE01
        Text in Illustration
        *1 Screwdriver *2 Outer Seat Track Assembly LH
        *3 Seat Track Adjusting Handle Lock *4 Seat Track Adjusting Handle

      9. Insert a screwdriver into the inner seat track assembly LH and disengage the lock of the seat track adjusting handle. While maintaining that state, pull out the seat track adjusting handle to the position shown in the illustration.

        Note

        Do not use excessive force to pull out the seat track adjusting handle.

        A01J46CE01
        Text in Illustration
        *1 Screwdriver *2 Inner Seat Track Assembly LH
        *3 Seat Track Adjusting Handle Lock *4 Seat Track Adjusting Handle
      10. A01J6Z6

        Pull and remove the seat track adjusting handle from the outer seat track assembly LH and inner seat track assembly LH.

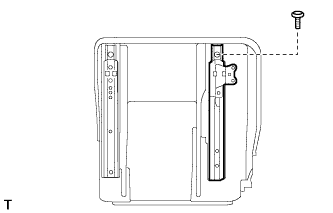

      11. A01J7BO

        Using a T40 "TORX" socket wrench, install the front side of the outer seat track assembly LH with the "TORX" bolt.

        Torque:
        40 N*m  { 408 kgf*cm, 30 ft.*lbf }
      12. A01J6HP

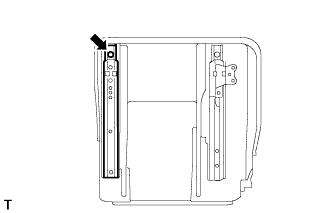

        Using a T40 "TORX" socket wrench, tighten the "TORX" bolt on the front side of the inner seat track assembly LH.

        Torque:
        40 N*m  { 408 kgf*cm, 30 ft.*lbf }

      13. Push the seat track adjusting handle into the outer seat track assembly LH and inner seat track assembly LH and engage the 2 seat track adjusting handle locks to install seat track adjusting handle.

        Note

        Make sure the handle is straight when installing it, and check that it is centered.

        A01J4E0E01
        Text in Illustration
        *1 Outer Seat Track Assembly LH *2 Seat Track Adjusting Handle Lock
        *3 Seat Track Adjusting Handle *4 Inner Seat Track Assembly LH

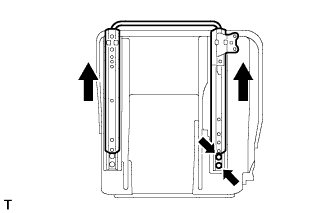

      14. A01J316

        Operate the seat track adjusting handle and move the outer seat track assembly LH and inner seat track assembly LH to the foremost position.

      15. Using a T40 "TORX" socket wrench, tighten the 2 "TORX" bolts on the rear side of the outer seat track assembly LH.

        Torque:
        40 N*m  { 408 kgf*cm, 30 ft.*lbf }

    6. If replacing the inner seat track assembly LH with a new one but reusing the outer seat track assembly LH:

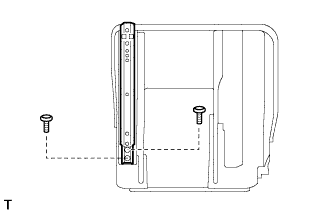

      1. A01J43T

        Using a T40 "TORX" socket wrench, temporarily install the rear side of a new inner seat track assembly LH with the 2 "TORX" bolts.

      2. A01J7BO

        Using a T40 "TORX" socket wrench, temporarily install the front side of the outer seat track assembly LH with the "TORX" bolt.

      3. Push the seat track adjusting handle into the inner seat track assembly LH and engage the seat track adjusting handle lock to install the seat track adjusting handle.

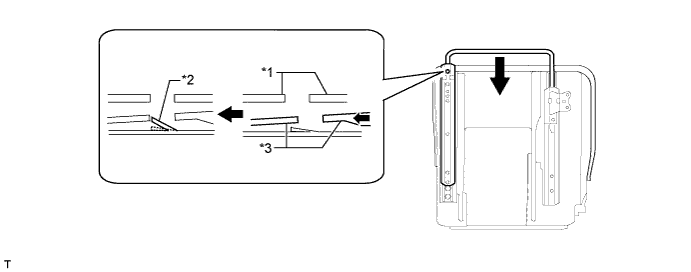

        A01J5S1E01
        Text in Illustration
        *1 Inner Seat Track Assembly LH *2 Seat Track Adjusting Handle Lock
        *3 Seat Track Adjusting Handle - -

      4. Operate the seat track adjusting handle and, while moving the inner seat track assembly LH toward the rearmost position, insert the handle into the outer seat track assembly LH and engage the lock of the seat track adjusting handle to install the handle.

        Note

        Make sure the handle is straight when installing it, and check that it is centered.

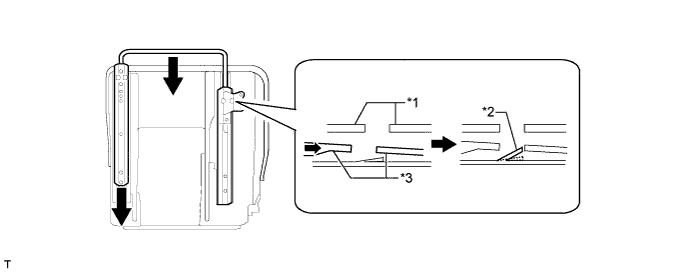

        A01J73KE01
        Text in Illustration
        *1 Outer Seat Track Assembly LH *2 Seat Track Adjusting Handle Lock
        *3 Seat Track Adjusting Handle - -

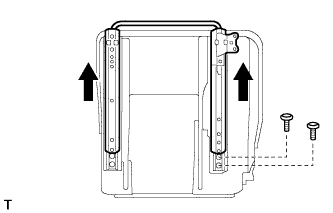

      5. A01J3ZT

        Operate the seat track adjusting handle and move the outer seat track assembly LH and inner seat track assembly LH to the foremost position.

      6. Using a T40 "TORX" socket wrench, install the rear side of the outer seat track assembly LH with the 2 "TORX" bolts.

        Torque:
        40 N*m  { 408 kgf*cm, 30 ft.*lbf }

      7. Operate the seat track adjusting handle and move the outer seat track assembly LH and inner seat track assembly LH to the position shown in the illustration.

        A01J75ZE01
        Text in Illustration
        *1 Seat Track Adjusting Handle Lock *2 Outer Seat Track Assembly LH
        *3 Inner Seat Track Assembly LH *4 Seat Track Adjusting Handle

      8. Insert a screwdriver into the outer seat track assembly LH and disengage the lock of the seat track adjusting handle. While maintaining that state, pull out the seat track adjusting handle to the position shown in the illustration, and then remove the screwdriver.

        Note

        Do not use excessive force to pull out the seat track adjusting handle.

        A01J4HZE01
        Text in Illustration
        *1 Screwdriver *2 Outer Seat Track Assembly LH
        *3 Seat Track Adjusting Handle Lock *4 Seat Track Adjusting Handle

      9. Insert a screwdriver into the inner seat track assembly LH and disengage the lock of the seat track adjusting handle. While maintaining that state, pull out the seat track adjusting handle to the position shown in the illustration, and then remove the screwdriver.

        Note

        Do not use excessive force to pull out the seat track adjusting handle.

        A01J46CE01
        Text in Illustration
        *1 Screwdriver *2 Inner Seat Track Assembly LH
        *3 Seat Track Adjusting Handle Lock *4 Seat Track Adjusting Handle
      10. A01J6Z6

        Pull and remove the seat track adjusting handle from the outer seat track assembly LH and inner seat track assembly LH.

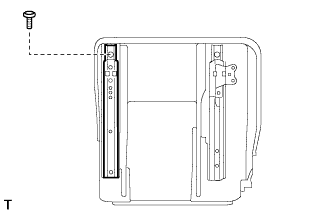

      11. A01J6XZ

        Using a T40 "TORX" socket wrench, install the front side of the inner seat track assembly LH with the "TORX" bolt.

        Torque:
        40 N*m  { 408 kgf*cm, 30 ft.*lbf }

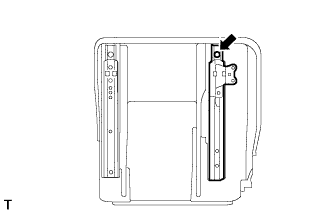

      12. A01J606

        Using a T40 "TORX" socket wrench, tighten the "TORX" bolt on the front side of the outer seat track assembly LH.

        Torque:
        40 N*m  { 408 kgf*cm, 30 ft.*lbf }

      13. Push the seat track adjusting handle into the outer seat track assembly LH and inner seat track assembly LH and engage the 2 seat track adjusting handle locks to install the seat track adjusting handle.

        Note

        Make sure the handle is straight when installing it, and check that it is centered.

        A01J4E0E01
        Text in Illustration
        *1 Outer Seat Track Assembly LH *2 Seat Track Adjusting Handle Lock
        *3 Seat Track Adjusting Handle *4 Inner Seat Track Assembly LH

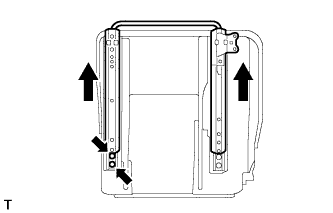

      14. A01J4AC

        Operate the seat track adjusting handle and move the outer seat track assembly LH and inner seat track assembly LH to the foremost position.

      15. Using a T40 "TORX" socket wrench, tighten the 2 "TORX" bolts on the rear side of the inner seat track assembly LH.

        Torque:
        40 N*m  { 408 kgf*cm, 30 ft.*lbf }

    7. If replacing both the outer seat track assembly LH and inner seat track assembly LH with new ones:

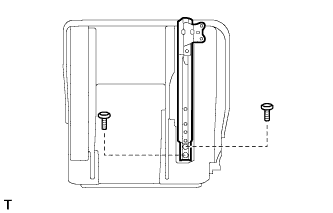

      1. A01J6PX

        Using a T40 "TORX" socket wrench, temporarily install the rear side of a new outer seat track assembly LH with the 2 "TORX" bolts.

      2. A01J43T

        Using a T40 "TORX" socket wrench, temporarily install the rear side of a new inner seat track assembly LH with the 2 "TORX" bolts.

      3. Push the seat track adjusting handle into the outer seat track assembly LH and inner seat track assembly LH and engage the 2 seat track adjusting handle locks to install the seat track adjusting handle.

        Note

        Make sure the handle is straight when installing it, and check that it is centered.

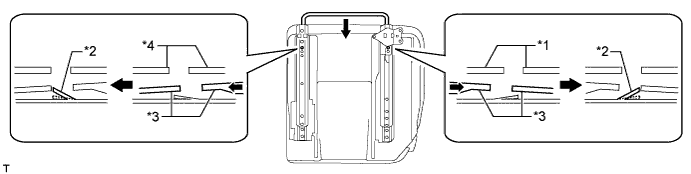

        A01J3BEE01
        Text in Illustration
        *1 Outer Seat Track Assembly LH *2 Seat Track Adjusting Handle Lock
        *3 Seat Track Adjusting Handle *4 Inner Seat Track Assembly LH

      4. Operate the seat track adjusting handle and move the outer seat track assembly LH and inner seat track assembly LH to the position shown in the illustration.

        A01J75ZE01
        Text in Illustration
        *1 Seat Track Adjusting Handle Lock *2 Outer Seat Track Assembly LH
        *3 Inner Seat Track Assembly LH *4 Seat Track Adjusting Handle

      5. Insert a screwdriver into the outer seat track assembly LH and disengage the lock of the seat track adjusting handle. While maintaining that state, pull out the seat track adjusting handle to the position shown in the illustration, and then remove the screwdriver.

        Note

        Do not use excessive force to pull out the seat track adjusting handle.

        A01J4HZE01
        Text in Illustration
        *1 Screwdriver *2 Outer Seat Track Assembly LH
        *3 Seat Track Adjusting Handle Lock *4 Seat Track Adjusting Handle

      6. Insert a screwdriver into the inner seat track assembly LH and disengage the lock of the seat track adjusting handle. While maintaining that state, pull out the seat track adjusting handle to the position shown in the illustration, and then remove the screwdriver.

        Note

        Do not use excessive force to pull out the seat track adjusting handle.

        A01J46CE01
        Text in Illustration
        *1 Screwdriver *2 Inner Seat Track Assembly LH
        *3 Seat Track Adjusting Handle Lock *4 Seat Track Adjusting Handle
      7. A01J6Z6

        Pull and remove the seat track adjusting handle from the outer seat track assembly LH and inner seat track assembly LH.

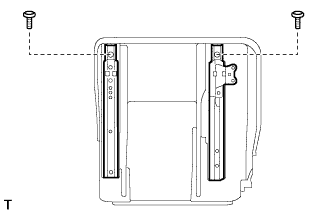

      8. A01J6BE

        Using a T40 "TORX" socket wrench, install the front side of the inner seat track assembly LH and outer seat track assembly LH with the 2 "TORX" bolts.

        Torque:
        40 N*m  { 408 kgf*cm, 30 ft.*lbf }

      9. Push the seat track adjusting handle into the outer seat track assembly LH and inner seat track assembly LH and engage the 2 seat track adjusting handle locks to install the seat track adjusting handle.

        A01J4E0E01
        Text in Illustration
        *1 Outer Seat Track Assembly LH *2 Seat Track Adjusting Handle Lock
        *3 Seat Track Adjusting Handle *4 Inner Seat Track Assembly LH

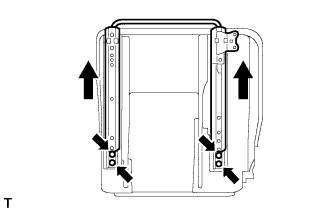

      10. A01J5RV

        Operate the seat track adjusting handle and move the outer seat track assembly LH and inner seat track assembly LH to the foremost position.

      11. Using a T40 "TORX" socket wrench, tighten the 4 "TORX" bolts on the rear side of the outer seat track assembly LH and inner seat track assembly LH.

        Torque:
        40 N*m  { 408 kgf*cm, 30 ft.*lbf }

  6. INSTALL SEAT TRACK ADJUSTING HANDLE

    Tech Tips

    Perform this procedure when removing and reinstalling or replacing only the seat track adjusting handle.


    1. A01J61P

      Apply MP grease to the locations shown in the illustration.

      Text in Illustration
      A01J5O1 MP Grease

    2. Push the seat track adjusting handle into the outer seat track assembly LH and inner seat track assembly LH and engage the 2 seat track adjusting handle locks to install the seat track adjusting handle.

      Note

      Make sure the handle is straight when installing it, and check that it is centered.

      A01J4E0E01
      Text in Illustration
      *1 Outer Seat Track Assembly LH *2 Seat Track Adjusting Handle Lock
      *3 Seat Track Adjusting Handle *4 Inner Seat Track Assembly LH

  7. INSTALL REAR NO. 1 SEAT TRACK BRACKET


    1. Using a T40 "TORX" socket wrench, install the rear No. 1 seat track bracket to the inner seat track assembly LH with the 2 "TORX" bolts.

      Torque:
      40 N*m  { 408 kgf*cm, 30 ft.*lbf }

  8. INSTALL REAR SEAT LOCK ASSEMBLY RH


    1. Using a T40 "TORX" socket wrench, install the rear seat lock assembly RH to the rear No. 1 seat track bracket with the 2 "TORX" bolts and washer.

      Torque:
      40 N*m  { 408 kgf*cm, 30 ft.*lbf }

    2. Using needle nose pliers, install the rear seat cushion support spring RH.

    3. A01J4AFE01
      Text in Illustration
      *1 Cable End

      Insert the cable end and twist it in the direction indicated by the arrow to connect the rear seat lock control cable LH to the rear seat lock assembly RH.

    4. Attach the cable clamp.

  9. INSTALL REAR SEAT LOCK ASSEMBLY LH

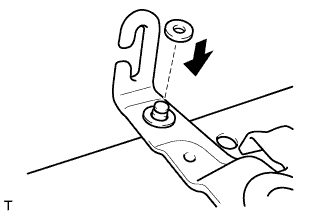

    1. A01J7MP

      Install the washer.

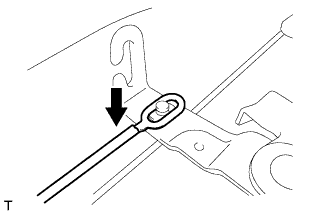

    2. A01J5BZ

      Connect the rear seat lock control cable LH to the rear seat lock assembly LH.

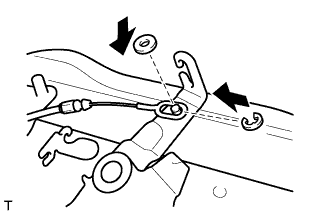

    3. A01J6AD

      Install the washer and a new E-ring.

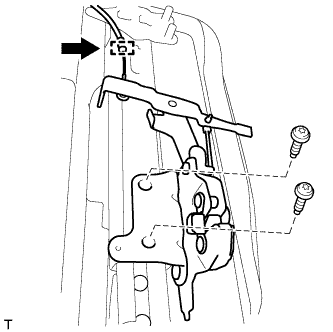

    4. A01J31N

      Using a T40 "TORX" socket wrench, install the rear seat lock assembly LH to the outer seat track assembly LH with the 2 "TORX" bolts.

      Torque:
      40 N*m  { 408 kgf*cm, 30 ft.*lbf }

    5. Attach the cable clamp to connect the rear seat lock control cable LH to the outer seat track assembly LH.

  10. INSTALL REAR SEAT CUSHION SUPPORT SPRING LH


    1. Using needle nose pliers, install the rear seat cushion support spring LH.

  11. INSTALL RECLINING RELEASE HANDLE SUB-ASSEMBLY

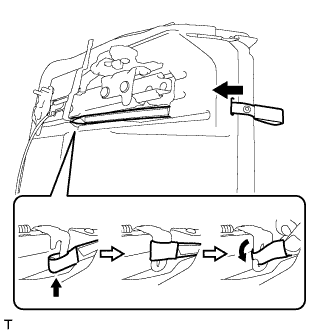

    A01J4JW

    1. Pass the reclining release handle sub-assembly and through the hole of the rear seat cushion under cover sub-assembly LH.

    2. Connect the reclining release handle sub-assembly to the rear seat lock assembly as shown in the illustration.

  12. INSTALL REAR SEATBACK LOCK RELEASE BUTTON


    1. Install the 2 rear seatback lock release buttons to the reclining release handle sub-assembly.

  13. INSTALL REAR SEAT HINGE ASSEMBLY LH


    1. Install the rear seat hinge assembly LH to the outer seat track assembly LH with the 2 nuts.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

  14. INSTALL REAR SEAT HINGE ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  15. INSTALL REAR NO. 2 SEAT LOCK COVER LH


    1. Install the rear No. 2 seat lock cover LH to the rear seat lock assembly RH with the 2 screws.

  16. INSTALL REAR NO. 1 SEAT LOCK COVER LH


    1. Attach the cable clamp to connect the rear seat lock control cable.

    2. Install the rear No. 1 seat lock cover LH with the 7 screws.

  17. INSTALL RECLINING REMOTE CONTROL LEVER KNOB LH

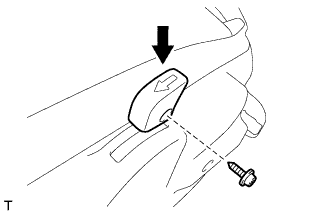

    1. A01J65O

      Install the reclining remote control lever knob LH to the rear seat lock assembly LH with the screw.

  18. INSTALL REAR NO. 1 SEATBACK PAD LH

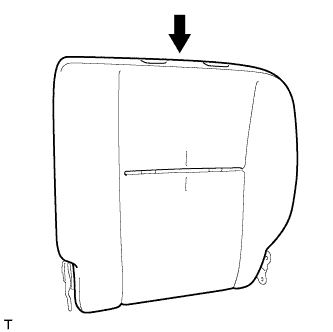

    1. A01J744

      Install a new rear No. 1 seatback pad LH to the rear No. 1 seatback frame.

  19. INSTALL REAR NO. 1 SEATBACK COVER

    A01J4BHE01

    1. Using hog ring pliers, install the rear No. 1 seatback cover to the No. 1 seatback pad LH with new hog rings.

      Text in Illustration
      *1 Hog Ring Pliers

      Note


      • Be careful not to damage the cover.

      • When installing the hog rings, avoid wrinkling the cover.

    2. A01J3JU

      Attach the 4 claws to install the 2 headrest supports.

    3. Install the rear seatback board LH.

    4. Attach the 2 hooks.

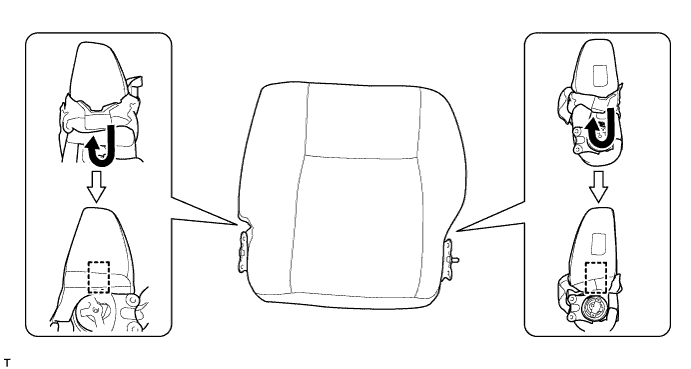

      A01J58Q

    5. Attach the hook and 2 pieces of fastening tape.

  20. INSTALL REAR NO. 1 SEATBACK ASSEMBLY


    1. Install the rear No. 1 seatback assembly with the 4 bolts.

      Torque:
      50 N*m  { 510 kgf*cm, 37 ft.*lbf }

  21. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY LH

    A01J6A9E02

    1. Install the seat belt with the bolt.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

      Note

      The anchor part of the seat belt must not overlap the protruding part.

  22. INSTALL REAR NO. 1 SEAT RECLINING COVER RH

    A01J4NB

    1. Attach the 2 guides and claw to install the rear No. 1 seat reclining cover RH.

    2. Install the screw.

  23. INSTALL REAR NO. 1 SEAT RECLINING COVER LH


    1. A01J3JP

      Attach the guide and 3 claws to install the rear No. 1 seat reclining cover LH.

    2. Install the screw.

  24. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH

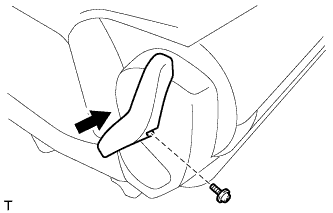

    1. A01J3XB

      Install the reclining adjuster release handle LH with the screw.

  25. INSTALL REAR SEAT HEADREST ASSEMBLY


    1. Install the rear seat headrest assembly.
