REAR NO. 1 SEAT ASSEMBLY (for LH Side) REASSEMBLY

Tech Tips

A bolt without a torque specification is shown in the standard bolt chart Click here.

CAUTION:

Wear protective gloves. Sharp areas on the seatback frame and seat cushion frame may injure your hands.

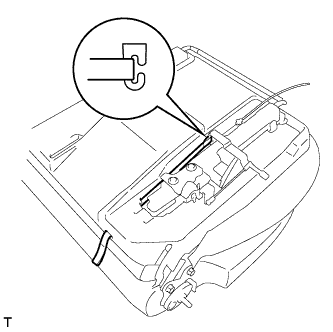

INSTALL NO. 1 FOLD SEAT STOPPER BAND ASSEMBLY

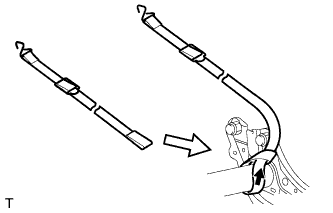

1. Install the band to the seat cushion frame.
INSTALL REAR NO. 1 SEAT CUSHION COVER
Note
- Be careful not to damage the cover.
- When installing the hog rings, avoid wrinkling the cover.

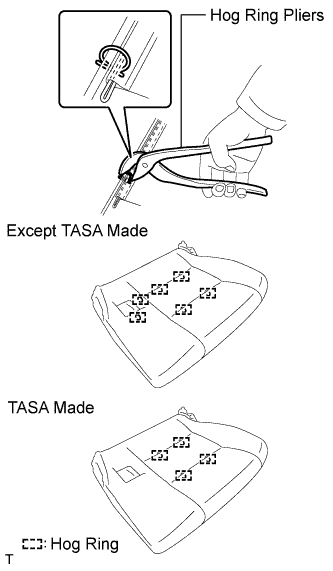

1. Except TASA made:

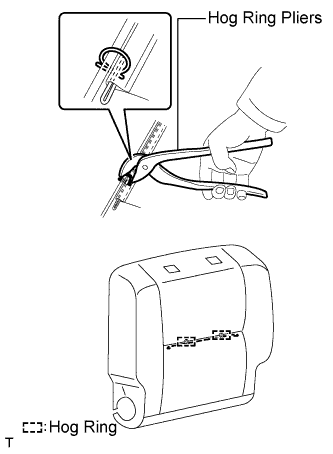

  Using hog ring pliers, install the seat cushion cover to the seat cushion pad with 6 new hog rings.

  TASA made:

  Using hog ring pliers, install the seat cushion cover to the seat cushion pad with 4 new hog rings.
2. Install the seat cushion cover (with pad) to the seat cushion frame.

  Tech Tips

  Make sure that the seat stopper band is not inside the cushion cover.
INSTALL REAR SEAT CUSHION UNDER COVER SUB-ASSEMBLY LH (for Slide Seat Type)

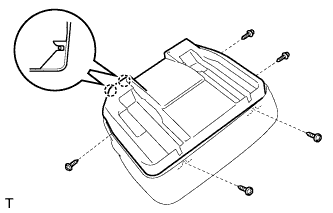

1. Attach the 2 claws and install the under cover with the 5 screws.

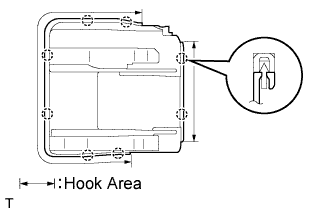

2. Attach the 8 claws and hooks. Then install the seat cushion cover to the under cover.
INSTALL REAR NO. 1 SEAT CUSHION ASSEMBLY (for Slide Seat Type)
1. Using a T40 "TORX" socket, install the 2 seat tracks to the seat cushion with the 2 "TORX" bolts.

  Torque:

  40 N*m { 408 kgf*cm, 30 ft.*lbf }

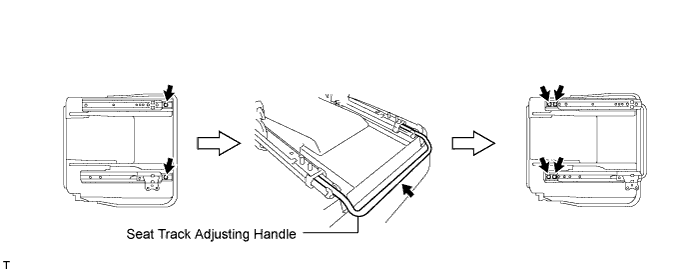

2. Install the seat track adjusting handle.
3. Lift up the seat track adjusting handle and move the seat track to the foremost position.
4. Using a T40 "TORX" socket, tighten the 4 "TORX" bolts on the rear side of the seat track.

  Torque:

  40 N*m { 408 kgf*cm, 30 ft.*lbf }

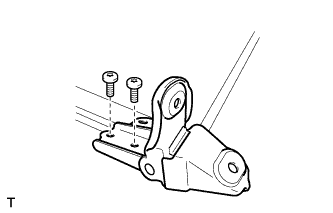

INSTALL SEAT LEG SUB-ASSEMBLY LH (for Non-slide Seat Type)
1. Using a T40 "TORX" socket, install the seat leg with the 2 "TORX" bolts.

  Torque:

  40 N*m { 408 kgf*cm, 30 ft.*lbf }
INSTALL SEAT LEG SUB-ASSEMBLY RH (for Non-slide Seat Type)
1. Using a T40 "TORX" socket, install the seat leg with the 2 "TORX" bolts.

  Torque:

  40 N*m { 408 kgf*cm, 30 ft.*lbf }

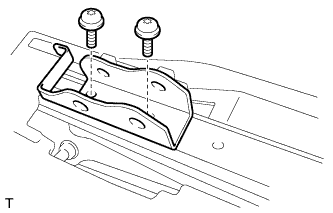

INSTALL REAR NO. 1 SEAT TRACK BRACKET (for Slide Seat Type)
1. Using a T40 "TORX" socket, install the bracket with the 2 "TORX" bolts.

  Torque:

  40 N*m { 408 kgf*cm, 30 ft.*lbf }
INSTALL REAR SEAT LOCK ASSEMBLY RH

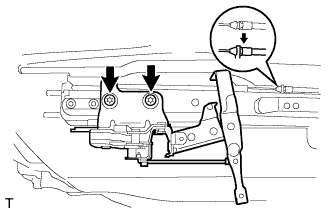

1. Using a T40 "TORX" socket, install the lock with the plate and 2 "TORX" bolts.

  Torque:

  40 N*m { 408 kgf*cm, 30 ft.*lbf }
2. Connect the lock control cable to the lock.
3. Install the support spring.

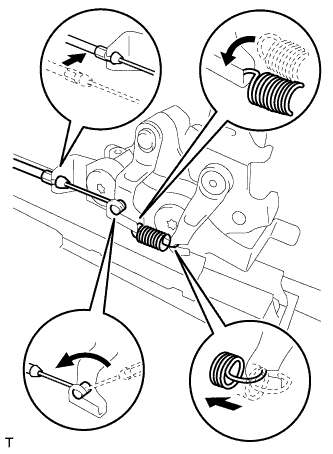

INSTALL REAR SEAT LOCK ASSEMBLY LH

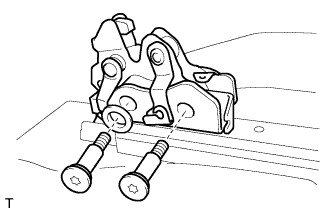

1. Install the lock control cable to the lock with a new E-ring and plate.
2. Using a T40 "TORX" socket, install the lock with the 2 "TORX" bolts.

  Torque:

  40 N*m { 408 kgf*cm, 30 ft.*lbf }
3. Connect the lock control cable to the lock as shown in the illustration.
4. Install the support spring.
INSTALL RECLINING RELEASE HANDLE SUB-ASSEMBLY (for Slide Seat Type)
1. Install the release handle to the rear seat lock through the hole in the rear seat cushion under cover.
INSTALL REAR SEATBACK LOCK RELEASE BUTTON (for Slide Seat Type)
1. Install the 2 rear seatback lock release buttons to the reclining release handle sub-assembly.
INSTALL REAR OUTER SEAT TRACK BRACKET LH (for Non-slide Seat Type)
1. Using a T40 "TORX" socket, install the bracket with the 2 "TORX" bolts.

  Torque:

  40 N*m { 408 kgf*cm, 30 ft.*lbf }
INSTALL REAR SEAT HINGE ASSEMBLY LH (for Slide Seat Type)
1. Install the hinge with the 2 nuts.

  Torque:

  42 N*m { 428 kgf*cm, 31 ft.*lbf }
INSTALL REAR SEAT HINGE ASSEMBLY LH (for Non-slide Seat Type)
1. Using a T40 "TORX" socket, install the hinge with the 2 "TORX" bolts.

  Torque:

  40 N*m { 408 kgf*cm, 30 ft.*lbf }
INSTALL REAR SEAT HINGE ASSEMBLY RH (for Slide Seat Type)
1. Install the hinge with the 2 nuts.

  Torque:

  42 N*m { 428 kgf*cm, 31 ft.*lbf }
INSTALL REAR SEAT HINGE ASSEMBLY RH (for Non-slide Seat Type)
1. Using a T40 "TORX" socket, install the hinge with the 2 "TORX" bolts.

  Torque:

  40 N*m { 408 kgf*cm, 30 ft.*lbf }
INSTALL REAR NO. 2 SEAT LOCK COVER LH
1. Install the lock cover with the 2 screws.

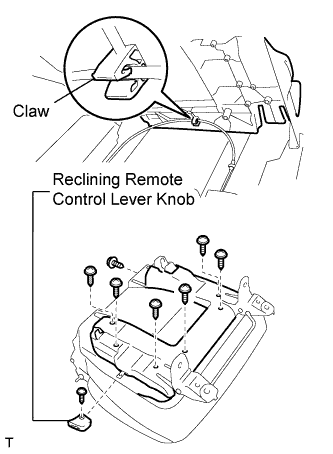

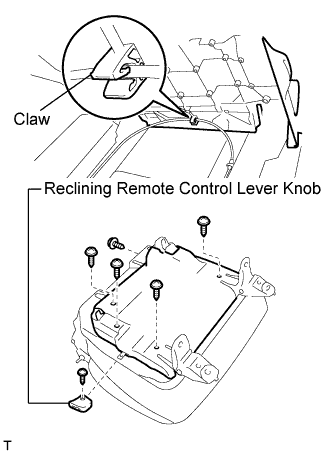

INSTALL REAR NO. 1 SEAT LOCK COVER LH (for Slide Seat Type)
1. Attach the rear seat lock control cable to the lock cover's claw.
2. Install the lock cover with the 7 screws.
3. Install the reclining remote control lever knob with the screw.
INSTALL REAR SEAT LOCK COVER LH (for Non-slide Seat Type)
1. Attach the rear seat lock control cable to the lock cover's claw.
2. Install the lock cover with the 5 screws.
3. Install the reclining remote control lever knob with the screw.
4. Install the 2 lock covers.
INSTALL REAR NO. 1 SEAT BELT ASSEMBLY INNER LH
1. Install the belt with the bolt.

  Torque:

  42 N*m { 428 kgf*cm, 31 ft.*lbf }
INSTALL REAR SEATBACK BOARD LH
INSTALL REAR NO. 1 SEATBACK COVER
Note
- Be careful not to damage the cover.
- When installing the hog rings, avoid wrinkling the cover.
1. Using hog ring pliers, install the seatback cover to the seatback pad with 2 new hog rings.
2. Install the seatback cover (with pad) to the seatback frame.
3. Install the 2 headrest supports.
4. Close the zipper.

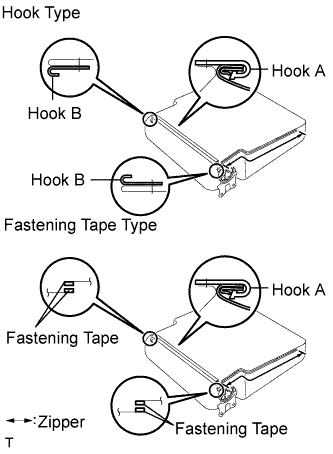

5. Attach the 2 hooks labeled B or close the fastening tapes.
  Tech Tips
  - Depending on the type of seat cover, hooks or fastening tape is present.
  - Tape the screwdriver tip before use.
6. Attach the hook labeled A.
INSTALL REAR NO. 1 SEATBACK ASSEMBLY

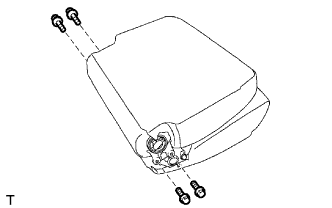

1. Install the seatback with the 4 bolts.

  Torque:

  50 N*m { 510 kgf*cm, 37 ft.*lbf }
INSTALL REAR NO. 1 SEAT RECLINING COVER RH

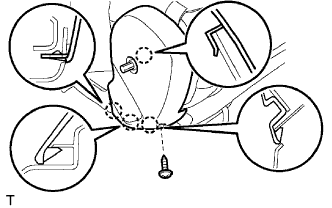

1. Attach the 3 claws to install the reclining cover.
2. Install the screw.
INSTALL REAR NO. 1 SEAT RECLINING COVER LH
1. Attach the 4 claws to install the reclining cover.
2. Install the screw.

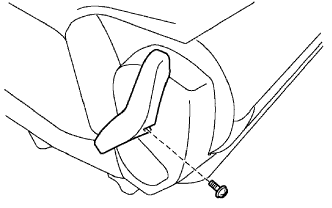

INSTALL RECLINING ADJUSTER RELEASE HANDLE LH
1. Install the release handle with the screw.
INSTALL REAR SEAT HEADREST ASSEMBLY
