REAR NO. 1 SEAT ASSEMBLY (for LH Side) DISASSEMBLY

CAUTION:

Wear protective gloves. Sharp areas on the seatback frame and seat cushion frame may injure your hands.


  1. REMOVE REAR SEAT HEADREST ASSEMBLY

  2. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH


    1. A01J5T6E01

      Remove the screw and release handle.

  3. REMOVE REAR NO. 1 SEAT RECLINING COVER LH


    1. A01J6YVE01

      Remove the screw.

    2. Using a screwdriver, detach the 4 claws and remove the reclining cover.

      Tech Tips

      Tape the screwdriver tip before use.

  4. REMOVE REAR NO. 1 SEAT RECLINING COVER RH


    1. A01J304E01

      Remove the screw.

    2. Using a screwdriver, detach the 3 claws and remove the reclining cover.

      Tech Tips

      Tape the screwdriver tip before use.

  5. REMOVE REAR NO. 1 SEATBACK ASSEMBLY

    A01J40UE01

    1. Remove the 4 bolts and seatback.

  6. REMOVE REAR NO. 1 SEATBACK COVER

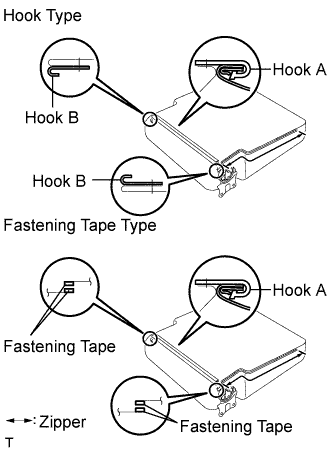

    1. A01J5HME01

      Using a screwdriver, detach the hook labeled A.

      Tech Tips

      Tape the screwdriver tip before use.

    2. Using a screwdriver, detach the 2 hooks labeled B or open the fastening tapes.

      Tech Tips


      • Depending on the type of seat cover, hooks or fastening tape is present.

      • Tape the screwdriver tip before use.

    3. Open the zipper.

    4. Roll up the seatback cover.

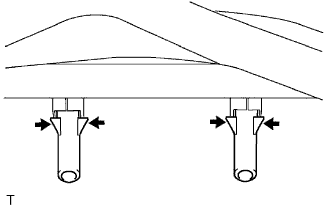

    5. A01J7EAE01

      Detach the 4 claws and remove the 2 headrest supports.

    6. Remove the seatback cover (with pad) from the seatback frame.

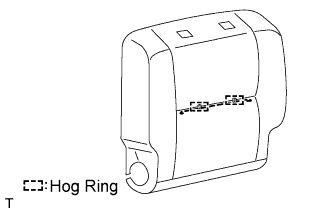

    7. A01J499E01

      Remove the 2 hog rings and the seatback cover from the seatback pad.

  7. REMOVE REAR SEATBACK BOARD LH

  8. REMOVE REAR NO. 1 SEAT BELT ASSEMBLY INNER LH


    1. Remove the bolt and belt.

  9. REMOVE REAR NO. 1 SEAT LOCK COVER LH (for Slide Seat Type)

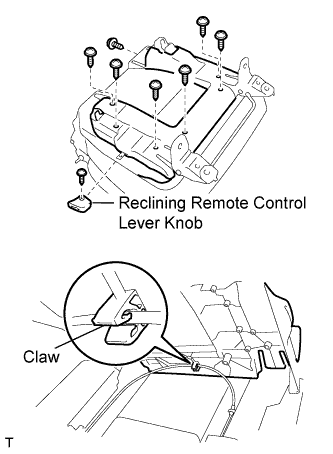

    1. A01J4ZUE01

      Remove the screw and the reclining remote control lever knob.

    2. Remove the 7 screws.

    3. Raise the lock cover and remove the rear seat lock control cable from the lock cover's claw. Then remove the lock cover.

  10. REMOVE REAR SEAT LOCK COVER LH (for Non-slide Seat Type)


    1. Using a screwdriver, detach the claws and remove the 2 lock covers.

      Tech Tips

      Tape the screwdriver tip before use.

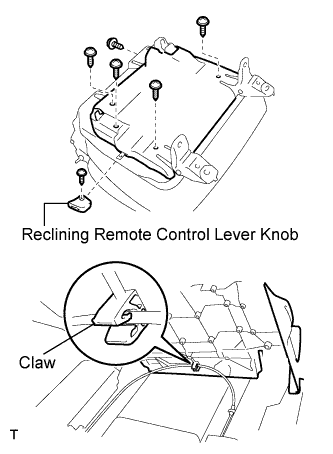

    2. A01J47GE01

      Remove the screw and reclining remote control lever knob.

    3. Remove the 5 screws.

    4. Raise the lock cover and remove the rear seat lock control cable from the lock cover's claw. Then remove the lock cover.

  11. REMOVE REAR NO. 2 SEAT LOCK COVER LH


    1. A01J6LD

      Remove the 2 screws and lock cover.

  12. REMOVE REAR SEAT HINGE ASSEMBLY LH (for Slide Seat Type)


    1. A01J3CX

      Remove the 2 nuts and hinge.

  13. REMOVE REAR SEAT HINGE ASSEMBLY LH (for Non-slide Seat Type)


    1. A01J511

      Using a T40 "TORX" socket, remove the 2 "TORX" bolts and hinge.

  14. REMOVE REAR SEAT HINGE ASSEMBLY RH (for Slide Seat Type)


    1. Remove the 2 nuts and hinge.

  15. REMOVE REAR SEAT HINGE ASSEMBLY RH (for Non-slide Seat Type)


    1. Using a T40 "TORX" socket, remove the 2 "TORX" bolts and hinge.

  16. REMOVE REAR OUTER SEAT TRACK BRACKET LH (for Non-slide Seat Type)


    1. Using a T40 "TORX" socket, remove the 2 "TORX" bolts and bracket.

  17. REMOVE REAR SEATBACK LOCK RELEASE BUTTON (for Slide Seat Type)

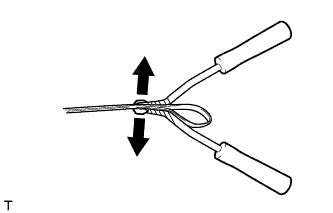

    A01J7GX

    1. Using 2 clip removers, remove the 2 rear seatback lock release buttons from the reclining release handle sub-assembly.

      Tech Tips


      • Tape the clip remover tip before use.

      • If a rear seatback lock release button is damaged, replace it with a new one.

  18. REMOVE RECLINING RELEASE HANDLE SUB-ASSEMBLY (for Slide Seat Type)


    1. A01J69H

      Remove the release handle from the rear seat lock through the hole in the rear seat cushion under cover.

  19. REMOVE REAR SEAT LOCK ASSEMBLY LH

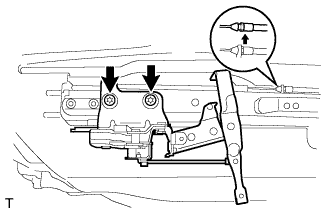

    1. A01J5VB

      Using the screwdriver, remove the support spring.

      Tech Tips

      Tape the screwdriver tip before use.

    2. Disconnect the lock control cable from the seat track.

    3. Using a T40 "TORX" socket, remove the 2 "TORX" bolts and lock (together with the lock control cable).

    4. Remove the E-ring, plate and lock control cable from the lock.

  20. REMOVE REAR SEAT LOCK ASSEMBLY RH

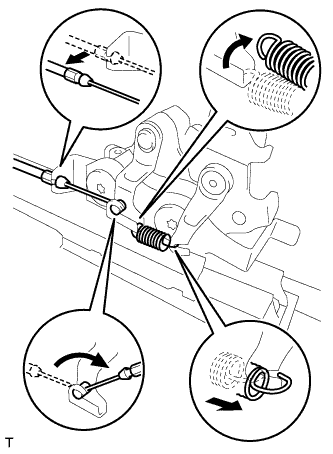

    1. A01J7J1

      Using a screwdriver, remove the support spring and disconnect the lock control cable as shown in the illustration.

      Tech Tips

      Tape the screwdriver tip before use.

    2. A01J44W

      Using a T40 "TORX" socket, remove the 2 "TORX" bolts, plate and lock.

  21. REMOVE REAR NO. 1 SEAT TRACK BRACKET (for Slide Seat Type)


    1. A01J630

      Using a T40 "TORX" socket, remove the 2 "TORX" bolts and bracket.

  22. REMOVE REAR NO. 1 SEAT CUSHION ASSEMBLY (for Slide Seat Type)


    1. Lift up the seat track adjusting handle and move the seat track to the foremost position.

    2. Using a T40 "TORX" socket, remove the 4 "TORX" bolts.

    3. Lift up the seat track adjusting handle and move the seat track to the rearmost position.

    4. Using a screwdriver, push down the handle stopper and detach the claws. Then remove the seat track adjusting handle.

    5. Using a T40 "TORX" socket, remove the 2 "TORX" bolts and seat cushion from the 2 seat tracks.

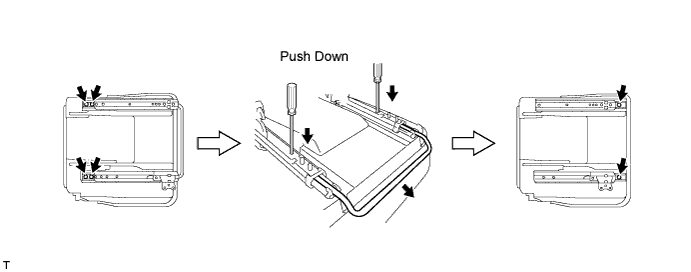

      A01J3FBE01

  23. REMOVE SEAT LEG SUB-ASSEMBLY LH (for Non-slide Seat Type)


    1. Using a T40 "TORX" socket, remove the 2 "TORX" bolts and seat leg.

  24. REMOVE SEAT LEG SUB-ASSEMBLY RH (for Non-slide Seat Type)


    1. Using a T40 "TORX" socket, remove the 2 "TORX" bolts and seat leg.

  25. REMOVE REAR SEAT CUSHION UNDER COVER SUB-ASSEMBLY LH (for Slide Seat Type)

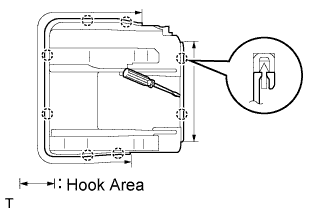

    1. A01J7O4E01

      Using a screwdriver, detach the 8 claws and hooks.

      Tech Tips

      Tape the screwdriver tip before use.

    2. Remove the under cover from the seat cushion cover. Then hold back the seat cushion cover so that the 5 screws are visible.

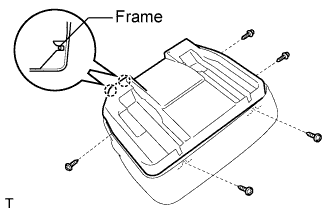

    3. A01J333E01

      Remove the 5 screws.

    4. Detach the 2 claws and remove the under cover.

  26. REMOVE REAR NO. 1 SEAT CUSHION COVER


    1. Remove the seat cushion cover (with pad) from the seat cushion frame.

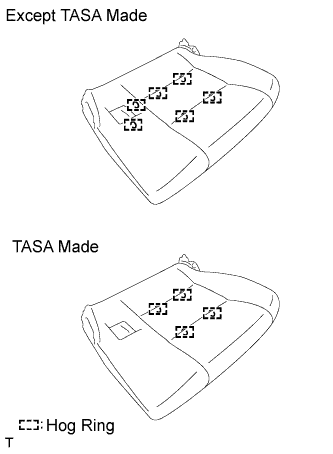

    2. A01J5C1E01

      Except TASA made:

      Remove the 6 hog rings and seat cushion cover from the seat cushion pad.

    3. TASA made:

      Remove the 4 hog rings and seat cushion cover from the seat cushion pad.

  27. REMOVE NO. 1 FOLD SEAT STOPPER BAND ASSEMBLY

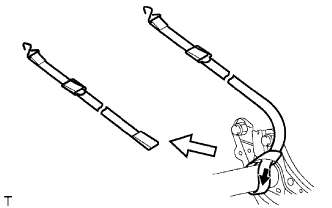

    A01J4XEE01

    1. Pull the band in the direction indicated by the black arrow in the illustration. Then remove the band.
