REAR NO. 1 SEAT ASSEMBLY (for RH Side) INSTALLATION


  1. INSTALL REAR NO. 1 SEAT ASSEMBLY

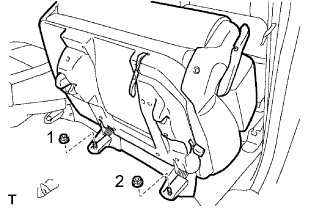

    1. A01J7E8E02

      Place the seat in the cabin.

      Note

      Be careful not to damage the vehicle body.

    2. Fully fold the seat forward and install the seat with the 2 nuts.

      Torque:
      37 N*m  { 377 kgf*cm, 27 ft.*lbf }

      Tech Tips

      Tighten the nuts in the order indicated in the illustration.

    3. Fully lock the seat to the vehicle body.

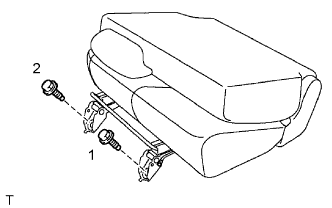

    4. A01J36RE01

      Tighten the 2 bolts on the front side in the order indicated in the illustration.

      Torque:
      37 N*m  { 377 kgf*cm, 27 ft.*lbf }

      Tech Tips

      Confirm that the seat is firmly locked to the vehicle body.

    5. Return the seatback to the upright position.

  2. INSTALL REAR SEAT CUSHION HINGE COVER LH

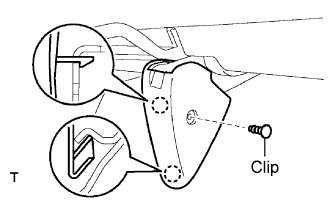

    A01J70IE01

    1. Attach the 2 claws to install the hinge cover.

    2. Install the clip.

  3. INSTALL REAR SEAT CUSHION HINGE COVER RH

    Tech Tips

    Use the same procedures described for the LH side.

  4. INSPECT AND ADJUST SEAT SLIDE ADJUSTER LOCKS


    1. During sliding operation of the seat, check that the left and right adjusters move together smoothly and lock simultaneously.

      If the seat adjusters do not lock simultaneously, loosen the seat fixation bolts to adjust the adjuster's position.
