REAR VIEW MONITOR SYSTEM Screen Flicker or Color Distortion

INSPECTION PROCEDURE

PROCEDURE

1. CHECK DISPLAY SETTING




   1. Push the "SETUP" button and select the "Display" switch.

   2. Select the "Camera" button and enter the "Display (Camera)" screen.

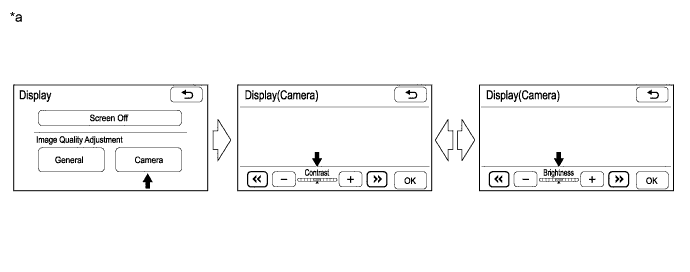

      Text in Illustration

      *a

      Example

      -

      -

   3. Reset the display settings (contrast and brightness) and check that the screen appears normal.

      OK
      The display returns to normal.




   NG

   Click here

   OK

   END

2. CHECK CABIN TEMPERATURE




   1. Check that the cabin temperature is higher than -20°C (-4.0°F).

      OK
      The cabin temperature is higher than -20°C (-4.0°F).




   NG

   HEAT CABIN AND RECHECK TEMPERATURE

   OK

3. CHECK COLOR BAR




   1.

      Enter the "Color Bar Check Mode" screen Click here.

   2. Check that the color bars match the displayed names.

      OK
      Color bars match the displayed names.




   NG

   REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY Click here

   OK

   PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here
