REAR WIPER MOTOR ON-VEHICLE INSPECTION


  1. INSPECT REAR WIPER MOTOR ASSEMBLY


    1. Operate the rear wiper motor assembly.

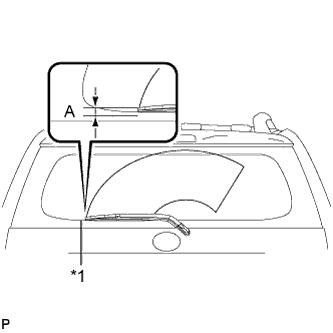

    2. A01J344E01
      Text in Illustration
      *1 Ceramic Line

      Stop the rear wiper motor assembly operation.

    3. Check the automatic stop position.

      Standard
      Area Specified Condition
      A 25 mm (0.984 in.)
      OK
      The rear wiper stops at the position shown in the illustration.
