CRUISE CONTROL SYSTEM ROAD TEST


  1. PROBLEM SYMPTOM CONFIRMATION (w/ Multi-display)


    1. A01J3JA

      Inspect the SET function.


      1. Turn the cruise control main switch on.

      2. Drive at the required speed (40 km/h (25 mph) or more).

      3. Push the cruise control main switch to -SET.

      4. After releasing the switch, check that the vehicle cruises at the set speed.

    2. A01J4KY

      Inspect the + (ACCELERATION) function.


      1. Turn the cruise control main switch on.

      2. Drive at the required speed (40 km/h (25 mph) or more).

      3. Push the cruise control main switch to -SET.

      4. Check that the vehicle speed increases while the cruise control main switch is pushed to +RES, and that the vehicle cruises at the newly set speed when the switch is released.

      5. Momentarily (approximately 0.6 seconds) push the cruise control main switch to +RES and then immediately release it. Check that the vehicle speed increases by approximately 1.6 km/h (1.0 mph) (TAP-UP control).

    3. A01J3JA

      Inspect the - (COAST) function.


      1. Turn the cruise control main switch on.

      2. Drive at the required speed (40 km/h (25 mph) or more).

      3. Push the cruise control main switch to -SET.

      4. Check that the vehicle speed decreases while the cruise control main switch is pushed to -SET, and that the vehicle cruises at the newly set speed when the switch is released.

      5. Momentarily (approximately 0.6 seconds) push the cruise control main switch to -SET, and then immediately release it. Check that vehicle speed decreases by approximately 1.6 km/h (1.0 mph) (TAP-DOWN control).

    4. A01J6AY

      Inspect the CANCEL function.


      1. Turn the cruise control main switch on.

      2. Drive at the required speed (40 km/h (25 mph) or more).

      3. Push the cruise control main switch to -SET.

      4. When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is restored.


        • Depressing the brake pedal.

        • Shifting into any position except D or 4*1.

        • Turning the main switch off.

        • Pulling the cruise control main switch to CANCEL.

        • Depressing the clutch pedal*2.


        • *1: for Automatic Transmission

        • *2: for Manual Transmission

    5. A01J4KY

      Inspect the RES (RESUME) function.


      1. Turn the cruise control main switch on.

      2. Drive at the required speed (40 km/h (25 mph) or more).

      3. Push the cruise control main switch to -SET.

      4. Cancel the cruise control system by performing one of the cruise control system cancel operations described above (other than turning the cruise control main switch off).

      5. After pushing the cruise control main switch to +RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle drives at the set speed.

  2. PROBLEM SYMPTOM CONFIRMATION (w/o Multi-display)

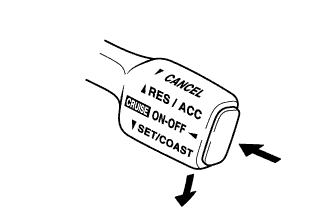

    1. A01J4DJE02

      Inspect the SET function.


      1. Turn the cruise control main switch on.

      2. Drive at the required speed (40 km/h (25 mph) or more).

      3. Push the cruise control main switch to SET / COAST.

      4. After releasing the switch, check that the vehicle cruises at the set speed.

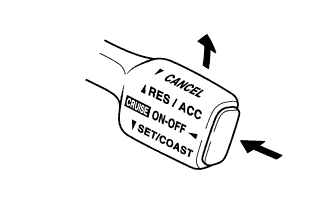

    2. A01J4DJE03

      Inspect the ACC (ACCELERATION) function.


      1. Turn the cruise control main switch on.

      2. Drive at the required speed (40 km/h (25 mph) or more).

      3. Push the cruise control main switch to SET / COAST.

      4. Check that the vehicle speed increases while the cruise control main switch is pushed to RES / ACC, and that the vehicle cruises at the newly set speed when the switch is released.

      5. Momentarily (approximately 0.6 seconds) push the cruise control main switch to RES / ACC and then immediately release it. Check that the vehicle speed increases by approximately 1.6 km/h (1.0 mph) (TAP-UP control).

    3. A01J4DJE02

      Inspect the COAST function.


      1. Turn the cruise control main switch on.

      2. Drive at the required speed (40 km/h (25 mph) or more).

      3. Push the cruise control main switch to SET / COAST.

      4. Check that the vehicle speed decreases while the cruise control main switch is pushed to SET / COAST, and that the vehicle cruises at the newly set speed when the switch is released.

      5. Momentarily (approximately 0.6 seconds) push the cruise control main switch to SET / COAST, and then immediately release it. Check that vehicle speed decreases by approximately 1.6 km/h (1.0 mph) (TAP-DOWN control).

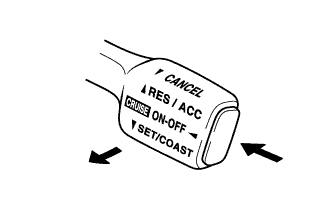

    4. A01J4DJE05

      Inspect the CANCEL function.


      1. Turn the cruise control main switch on.

      2. Drive at the required speed (40 km/h (25 mph) or more).

      3. Push the cruise control main switch to SET / COAST.

      4. When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is restored.


        • Depressing the brake pedal.

        • Shifting into any position except D or 4*1.

        • Turning the main switch off.

        • Pulling the cruise control main switch to CANCEL.

        • Depressing the clutch pedal*2.

        *1: for Automatic Transmission

        *2: for Manual Transmission

    5. A01J4DJE03

      Inspect the RES (RESUME) function.


      1. Turn the cruise control main switch on.

      2. Drive at the required speed (40 km/h (25 mph) or more).

      3. Push the cruise control main switch to SET / COAST.

      4. Cancel the cruise control system by performing one of the cruise control system cancel operations described above (other than turning the cruise control main switch off).

      5. After pushing the cruise control main switch to RES / ACC at a driving speed of more than 40 km/h (25 mph), check that the vehicle drives at the set speed.
