UNLOCK WARNING SWITCH INSPECTION


  1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

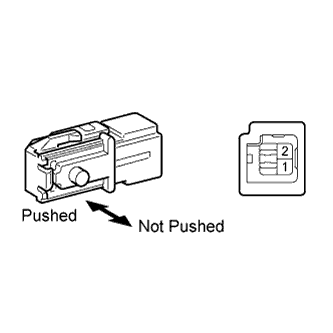

    A01J5VNE04

    1. Measure the resistance of the switch.

      Standard resistance
      Tester Connection Switch Condition Specified Condition
      1 - 2 Pushed Below 1 Ω
      Not pushed 10 kΩ or higher

      • If the result is not as specified, replace the switch.
