STEERING SYSTEM ON-VEHICLE INSPECTION


  1. STEERING WHEEL FREE PLAY

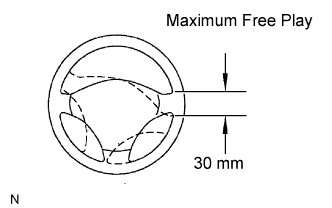

    A01J3CEE03

    1. Stop the vehicle. Position the steering wheel in the center position with the tires pointing straight ahead.

    2. Turn the steering wheel gently right and left, and check the steering wheel free play.

      Maximum free play
      30 mm (1.18 in.)

      • If the free play exceeds the maximum, replace the steering intermediate shaft sub-assembly or steering link assembly.
