REAR AXLE SHAFT INSTALLATION

Tech Tips

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
A bolt without a torque specification is shown in the standard bolt chart Click here.

INSTALL REAR AXLE SHAFT BEARING LH

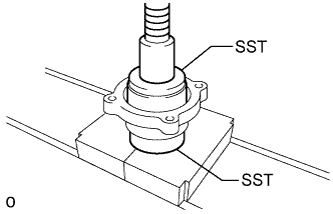

1. Using SST and a press, press in a new bearing.

  SST

  09515-21010

  09950-60020 ( 09951-00810 )
INSTALL REAR AXLE SHAFT OUTER OIL SEAL

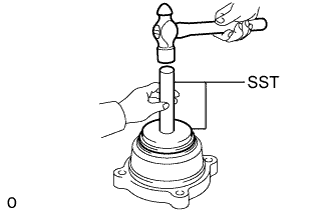

1. Using SST and a hammer, tap in a new oil seal.

  SST

  09950-00020 ( 09951-00680 )

  09950-70010 ( 09951-07150 )
INSTALL REAR AXLE HUB BOLT LH
1. Install a new gasket and the deflector to the axle shaft.

  Tech Tips

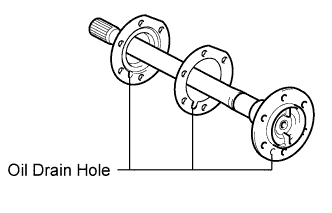

  Align the 3 oil drain holes.
2. Pass 6 new hub bolts through the axle hub.
3. Secure the axle shaft between aluminum plates in a vise.

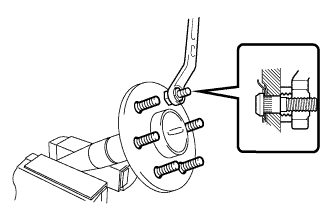

4. Temporarily install a washer and nut to each of the 6 hub bolts as shown in the illustration.
5. Install the hub bolts by tightening each nut.
6. Remove the washer and nut from each hub bolt.
INSTALL BACKING PLATE TO REAR AXLE HOUSING SETTING BOLT
1. Position the backing plate on the bearing case.

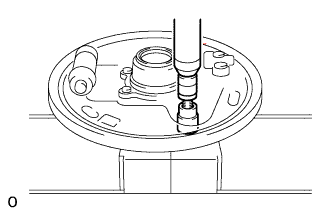

2. Using 2 socket wrenches and a press, press in 4 new setting bolts.
INSTALL REAR AXLE BEARING INNER RETAINER LH
1. Heat a new retainer to approximately 70 to 130°C (158 to 266°F).

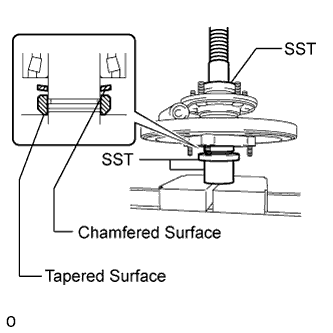

2. Install a new shaft washer and the retainer to the axle shaft as shown in the illustration.
  Note
  - Install the shaft washer with its tapered surface facing downward.
  - Install the retainer with its chamfered surface facing downward.
3. Using SST and a press, press in the axle shaft.

  SST

  09951-01100

  09631-12090

  09726-40010
4. Using a snap ring expander, install a new snap ring.

INSTALL REAR AXLE BEARING INNER RETAINER LH AND REAR SKID CONTROL ROTOR (w/ ABS)

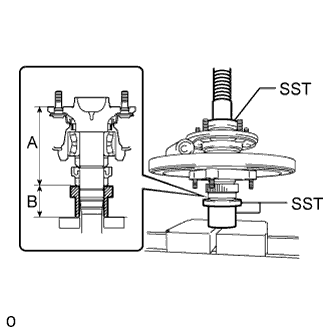

Using SST and a press, press in a new skid control rotor and retainer to the axle shaft until the lengths are within the standard range.

SST: 09951-01100; 09631-12090; 09726-40010

Standard length

Length A	Length B
133.2 +/-0.6 mm (5.244 +/-0.0263 in.)	56 mm (2.205 in.)

Note

If this installation measurement is not followed precisely, oil leaks and other mechanical failures will result. Follow the assembly instructions closely, and confirm that parts have been installed according to the standard length measurement.

Tech Tips

It may be easier to verify the installation by adding the length of the SST to the standard length, and then measuring the height from the surface of the press.

INSTALL REAR AXLE SHAFT OIL SEAL LH

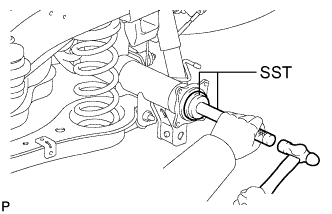

1. Using SST and a hammer, tap in a new oil seal.

  SST

  09950-60020 ( 09951-00770 )

  09950-70010 ( 09951-07150 )
INSTALL O-RING
1. Install a new O-ring to the axle housing.
INSTALL REAR AXLE SHAFT WITH BACKING PLATE
1. Install the axle shaft with backing plate with the 4 nuts.

  Torque:

  43 N*m { 438 kgf*cm, 32 ft.*lbf }
CONNECT PARKING BRAKE CABLE
1. Connect the parking brake cable with the 2 bolts.

  Torque:

  9.0 N*m { 92 kgf*cm, 80 in.*lbf }
INSTALL BRAKE SHOES
1. Using needle-nose pliers, connect the No. 3 parking brake cable to the parking brake shoe lever.
2. Install the strut set and return spring to the shoe.
3. Attach the support clip to the exposed threads of the strut set.

  Note

  The support clip should not contact the adjuster nut.
4. Using needle-nose pliers, hook the support clip around the spring.

  Note

  Be careful not to damage the spring.
5. Install the front and rear brake shoes.
6. Move one of the shoes upward and install the shoe tension spring.
7. Install the shoe front or rear side to the cylinder. Then install the other side of the shoe to the other side of the cylinder.

  Tech Tips

  After one side of the shoe is installed to the cylinder, hold that side of the shoe steady. Then widen the opening of the shoe by pulling the other side of the shoe outward and install it to the other side of the cylinder.

  Note

  Be careful not to damage the cylinder dust boot.
8. Using pliers, install the front brake shoe, rear brake shoe, pins and shoe hold down springs.
INSTALL REAR SPEED SENSOR LH (w/ ABS)
1. Install the speed sensor with the bolt.

  Torque:

  8.5 N*m { 87 kgf*cm, 75 in.*lbf }
  Note

  Make sure there are no pieces of iron or other foreign matter attached to the sensor tip.

  While inserting the speed sensor into the axle housing hole, do not strike or damage the sensor tip.

  After installing the speed sensor, make sure there is no clearance or foreign matter between the sensor stay part and the axle housing.
2. Attach the 3 clamps.

  Note

  When attaching the clamps, do not twist the wire harness.
3. Connect the connector.
  Note
  - Securely connect the connector.
  - When connecting the connector, do not twist the wire harness.
4. Attach the connector.
CONNECT BRAKE LINE
1. Install the cylinder with the 2 bolts.

  Torque:

  12 N*m { 117 kgf*cm, 8 ft.*lbf }
2. Using a union nut wrench, connect the brake line.

  Torque:

  15 N*m { 155 kgf*cm, 11 ft.*lbf }

  Note

  Use the formula to calculate special torque values for situations where a union nut wrench is combined with a torque wrench Click here.
INSTALL REAR BRAKE DRUM SUB-ASSEMBLY
FILL RESERVOIR WITH BRAKE FLUID

Fluid

SAE J1703 or FMVSS No. 116 DOT3
BLEED AIR FROM BRAKE LINE
1. Remove the bleeder plug cap.
2. Connect the vinyl tube to the bleeder plugs.
3. Depress the brake pedal several times, and then loosen the bleeder plug with the pedal depressed.
4. When fluid stops coming out, immediately tighten the bleeder plug. Then release the pedal.
5. Repeat the 2 previous steps until all the air in the brake fluid is gone.
6. Tighten the bleeder plug.

  Torque:

  11 N*m { 110 kgf*cm, 8 ft.*lbf, for front brake }

  10 N*m { 102 kgf*cm, 7 ft.*lbf, for rear brake }
7. Install the cap.
8. Bleed air from the brake line for each wheel by repeating the above procedures.
CHECK BRAKE FLUID LEVEL IN RESERVOIR
1. Check the fluid level and add fluid if necessary.

  Fluid

  SAE J1703 or FMVSS No. 116 DOT3

  Tech Tips

  Add fluid to a level between the reservoir's MIN and MAX lines.
CHECK FOR BRAKE FLUID LEAKAGE
INSTALL REAR WHEEL

Torque:

105 N*m { 1071 kgf*cm, 77 ft.*lbf }
CHECK PARKING BRAKE LEVER TRAVEL
1. Pull the lever upward with a force of approximately 200 N (20 kgf, 45 lbf) and count the number of clicks.

  OK

  7 to 9 clicks (without rear brake dragging)

Fluid
SAE J1703 or FMVSS No. 116 DOT3

Fluid
SAE J1703 or FMVSS No. 116 DOT3

ADJUST PARKING BRAKE LEVER TRAVEL

Turn the No. 1 wire adjusting nut until the lever travel is correct.

OK
7 to 9 clicks (without rear brake dragging)
<Lever pulling force: approximately 200 N (20 kgf, 45 lbf)>

Tighten the lock nut.

Torque:

5.2 N*m { 53 kgf*cm, 46 in.*lbf }

Tech Tips

If the lever travel cannot be fully adjusted with this procedure, proceed to the "ADJUST PARKING BRAKE TURN BUCKLE" procedure.

CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization Click here.

  Note

  Certain systems need to be initialized after disconnecting and reconnecting the cable to the negative (-) battery terminal.
CHECK SPEED SENSOR SIGNAL
1. w/o Rear Differential Lock:
  1. Check the speed sensor signal Click here.
2. w/ Rear Differential Lock:
  1. Check the speed sensor signal Click here.
