REAR AXLE HUB BOLT REPLACEMENT

Tech Tips


  • Use the same procedures for the RH side and LH side.

  • The procedures listed below are for the LH side.


  1. REMOVE REAR WHEEL

  2. REMOVE BRAKE DRUM

  3. REMOVE REAR AXLE HUB BOLT

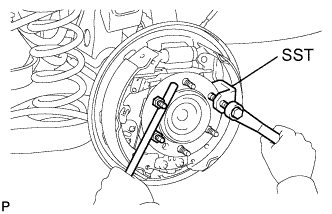

    A01J485E01

    1. Temporarily install the 2 nuts to the hub bolts as shown in the illustration.

    2. Using SST and a brass bar or equivalent to hold the axle shaft, remove the hub bolt.

      SST
      09650-17011

  4. INSTALL REAR AXLE HUB BOLT

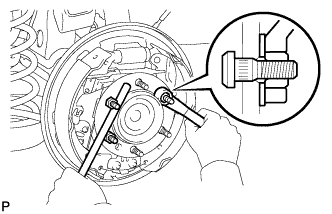

    A01J504

    1. Install a plate washer and nut to a new hub bolt, as shown in the illustration.

    2. Using a brass bar or equivalent to hold the axle shaft, install the hub bolt by torquing the nut.

    3. Remove the 2 nuts from the hub bolts.

  5. INSTALL BRAKE DRUM

  6. INSTALL REAR WHEEL

    Torque:
    105 N*m  { 1,071 kgf*cm, 77 ft.*lbf }
