FRONT AXLE HUB ON-VEHICLE INSPECTION


  1. CHECK FRONT AXLE HUB BEARING

    A01J41OE01

    1. Remove the front wheel.

    2. Remove the front disc brake caliper Click here.

    3. Remove the front disc.

    4. Inspect the axle hub backlash.

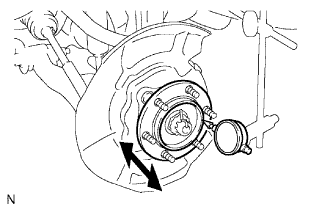

      1. Using a dial indicator, check the backlash near the center of the axle hub.

        Maximum backlash
        0.05 mm (0.0020 in.)

        If the backlash is greater than the maximum, replace the bearing.

    5. Inspect the axle hub deviation.


      1. Using a dial indicator, check the deviation at the surface of the axle hub.

        Maximum deviation
        0.05 mm (0.0020 in.)

        If the deviation is greater than the maximum, replace the bearing.
