WATER PUMP REMOVAL


  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  2. REMOVE NO. 1 ENGINE UNDER COVER


    1. Remove the 4 bolts and cover.

  3. DRAIN ENGINE COOLANT


    1. Remove the radiator cap.

    2. Loosen the cylinder block drain cock plug and radiator drain cock plug, and then drain the coolant.

      Tech Tips

      Collect the coolant in a container and dispose of it according to the regulations in your area.

      A01J74KE01

  4. DISCONNECT RADIATOR HOSE INLET


    1. Disconnect the hose from the radiator tank upper and engine.

  5. DISCONNECT RADIATOR HOSE OUTLET

  6. REMOVE FAN SHROUD

    A01J54HE01

    1. Disconnect the reservoir hose from the radiator tank upper.

    2. Loosen the 4 nuts holding the fluid coupling fan.

    3. Remove the drive belt.

    4. Remove the 2 bolts holding the fan shroud.

    5. Remove the 4 nuts of the fluid coupling fan, and then remove the shroud together with the coupling fan.

      Note

      Be careful not to damage the radiator core.

    6. Remove the fan pulley from the water pump.

  7. REMOVE GENERATOR ASSEMBLY


    1. A01J5WDE03

      Detach the terminal cap.

    2. Remove the nut, bolt and generator wire.

    3. Disconnect the generator connector.

    4. Remove the 2 bolts and generator.

  8. REMOVE OIL DIPSTICK GUIDE


    1. Remove the bolt and guide.

      Tech Tips

      Cover the guide hole to prevent foreign matter from entering it.

  9. REMOVE NO. 1 IDLER PULLEY SUB-ASSEMBLY

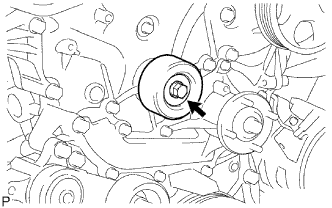

    A01J42EE01

    1. Remove the bolt, pulley plate, pulley and spacer.

  10. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

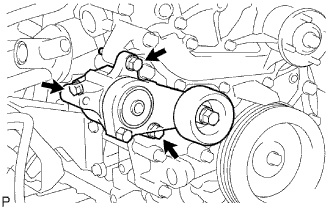

    1. A01J5L5E02

      Remove the 3 bolts and tensioner.

  11. REMOVE WATER PUMP ASSEMBLY

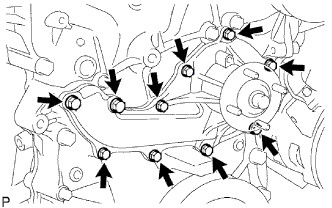

    A01J3BUE01

    1. Remove the 10 bolts, water pump and gasket.
