WASHER MOTOR(for Rear Side) REMOVAL

PROCEDURE


  1. REMOVE FRONT BUMPER COVER

    Click here

  2. DRAIN WINDSHIELD WASHER FLUID

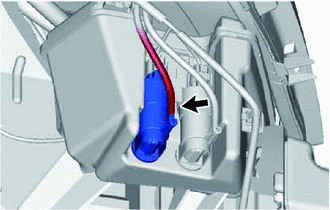

    1. A004FF6

      Disconnect the washer hose from the rear washer motor and pump, and drain the windshield washer fluid.

      CAUTION:

      Use a container to collect the washer fluid.

  3. REMOVE REAR WASHER MOTOR AND PUMP ASSEMBLY

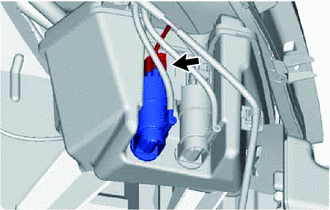

    1. A004EVE

      Disconnect the connector.

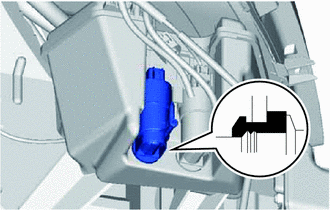

    2. A004EAO

      Remove the rear washer motor and pump.

  4. REMOVE WASHER JAR PROTECTOR


    1. Remove the washer jar protector from the washer jar.
