REAR WIPER MOTOR ON-VEHICLE INSPECTION

PROCEDURE


  1. INSPECT REAR WIPER MOTOR ASSEMBLY

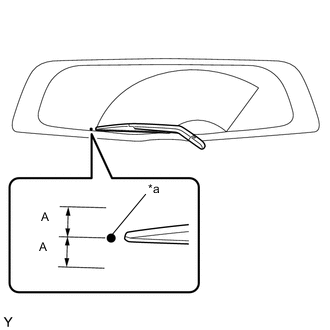

    1. A01UZREE06
      Text in Illustration
      *a Mark for Blade Position

      Check the automatic stop position.

      Installation position
      Area Measurement
      A 20 mm (0.787 in.)

      1. Operate the rear wiper motor and check the automatic stop position of the rear wiper arm and blade.

        Specified Condition
        Rear wiper arm stops in the position as shown in the illustration.
