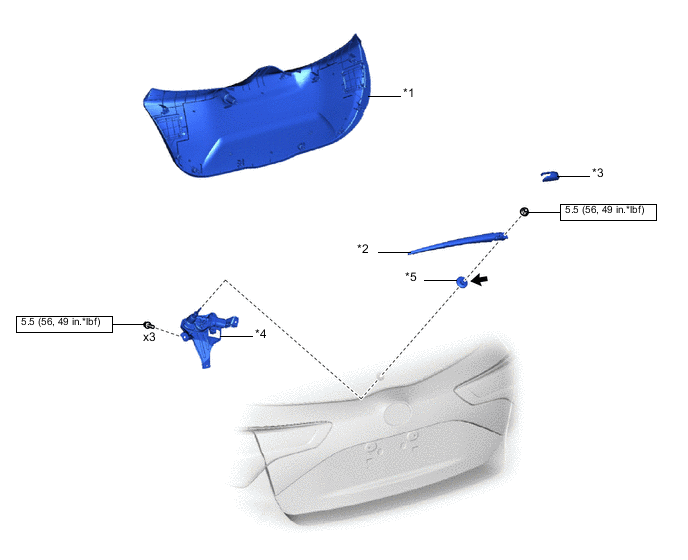

REAR WIPER MOTOR COMPONENTS
ILLUSTRATION
| *1 | BACK DOOR TRIM BOARD | *2 | REAR WIPER ARM AND BLADE ASSEMBLY |
| *3 | REAR WIPER ARM HEAD CAP | *4 | REAR WIPER MOTOR ASSEMBLY |
| *5 | REAR WIPER MOTOR GROMMET | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |  |
MP grease |
