REAR CONSOLE BOX REMOVAL

PROCEDURE


  1. REMOVE FRONT ASH RECEPTACLE ASSEMBLY (w/ Ashtray)

  2. REMOVE REAR CONSOLE BOX COVER

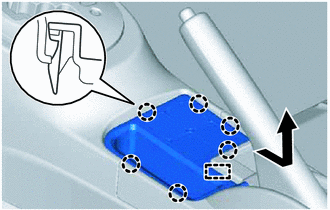

    1. A01UZ9Z

      Disengage the 6 claws.

    2. Disengage the guide and pull out the rear console box cover as shown in the illustration.

    3. Disconnect the connectors from the rear console box cover.

  3. REMOVE CONSOLE BOX CARPET

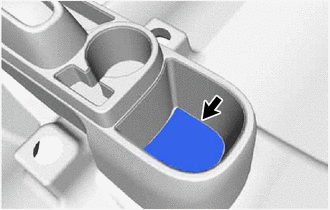

    1. A01UXR6

      Remove the console box carpet.

  4. REMOVE REAR CONSOLE BOX


    1. A01V1SI

      Remove the bolt.

    2. Disengage the 2 clips and guide and remove the rear console box.

      Note

      Be careful not to damage the lower instrument panel when removing it.
