FRONT AIRBAG SENSOR INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Click here.

PROCEDURE


  1. INSTALL FRONT AIRBAG SENSOR


    1. Check that the ignition switch is off.

    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Insert the pin (stopper) into the body hole and install the front airbag sensor with the bolt.

      Torque:
      9.0 N*m  { 92 kgf*cm, 80 in.*lbf }

      Note


      • If the front airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

      • When installing the front airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

      • Make sure that the pin (stopper) is securely inserted into the body hole.

      • Tighten the bolt while holding the front airbag sensor because the front airbag sensor pin (stopper) is easily damaged.

    4. Connect the connector to the front airbag sensor.

      Note

      When connecting any airbag connector, take care not to damage the airbag wire harness.

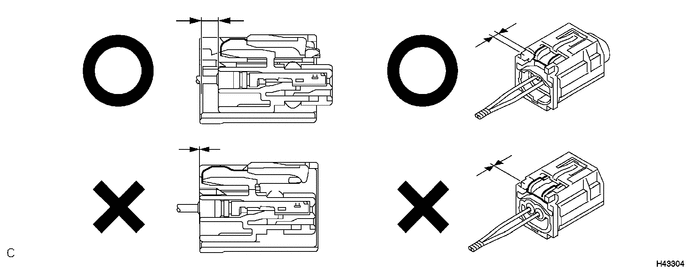

      1. Before connecting the connector, check that the position of the white housing lock is correct as shown in the illustration.

        A004GCX

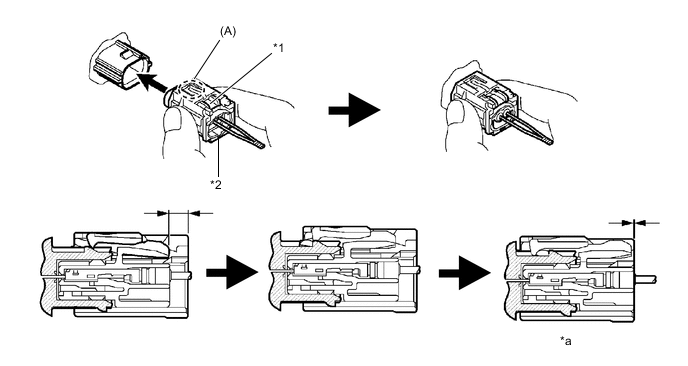

      2. Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).

        A004EUHE01
        Text in Illustration
        *1 Housing Lock *2 CPA
        *a Connection is Completed - -

        Tech Tips

        When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and part (A), as it may result in an insecure fit.

    5. Check that there is no looseness in the installation parts of the front airbag sensor.

  2. INSTALL AIRBAG SENSOR BRACKET

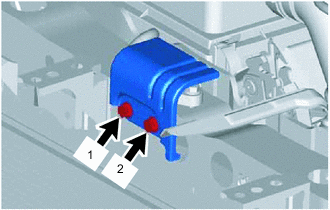

    1. A004GBVE01

      Temporarily install the airbag sensor bracket with the 2 bolts in the order shown in the illustration.

    2. Tighten the 2 bolts.

      Torque:
      9.0 N*m  { 92 kgf*cm, 80 in.*lbf }

  3. INSTALL FRONT BUMPER COVER

    Click here

  4. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Torque:
    5.4 N*m  { 55 kgf*cm, 48 in.*lbf }

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  5. INSTALL FRONT FLOOR COVER RH (for Front Floor Cover Type A)

    Click here

  6. INSTALL FRONT FLOOR COVER RH (for Front Floor Cover Type B)

    Click here

  7. INSTALL CENTER FRONT FLOOR COVER (for Front Floor Cover Type B)

    Click here

  8. INSPECT SRS WARNING LIGHT

    Click here
