| DTC Code | DTC Name |
|---|---|
| B1249 | Double Locking ECU Communication Stop |
DESCRIPTION
This DTC is stored when LIN communication between the double lock door control relay assembly and main body ECU (multiplex network body ECU) stops for 10 seconds or more.
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| B1249 | No communication between the double lock door control relay assembly and main body ECU (multiplex network body ECU) for 10 seconds or more. |
|
WIRING DIAGRAM
CAUTION / NOTICE / HINT
Note
When using the GTS with the ignition switch off to troubleshoot:
Connect the GTS to the vehicle, and turn the courtesy switch on and off at 1.5-second intervals until communication between the GTS and vehicle begins.
Inspect the fuses for circuits related to this system before performing the following inspection procedure.
Tech Tips
When communication between the double lock door control relay assembly and main body ECU (multiplex network body ECU) stops, DTC B2325 is also stored.
PROCEDURE
CLEAR DTC
Clear the DTC Click here.
| NEXT |
|
CHECK FOR DTC
Check for DTC Click here.
| Result | Proceed to |
|---|---|
| DTC B1249 is output | A |
| DTC B1249 and B2325 are output | B |
Tech Tips
When both B1249 and B2325 are output at the same time, troubleshoot B2325 first.
| B |
|
GO TO DIAGNOSTIC TROUBLE CODE CHART Click here |
| A |
|
CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
| *a | Component without harness connected (Instrument Panel Junction Block Assembly) |
Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly Click here.
Disconnect the 3B instrument panel junction block assembly connector.
Measure the resistance according to the value(s) in the table below.
| Standard Resistance | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
| NG |
|
REPAIR OR REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY Click here |
| OK |
|
CHECK HARNESS AND CONNECTOR INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY)
Disconnect the F58 double lock door control relay assembly connector.
Measure the resistance according to the value(s) in the table below.
| Standard Resistance | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT) |
| OK |
|
CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

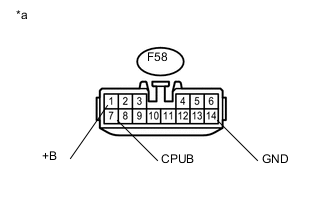

| *a | Front view of wire harness connector (to Double Lock Door Control Relay Assembly) |
Measure the voltage according to the value(s) in the table below.
| Standard Voltage | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Measure the resistance according to the value(s) in the table below.
| Standard Resistance | ||||||
|---|---|---|---|---|---|---|
|
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT) |
| OK |
|
REPLACE DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY
Replace the double lock door control relay assembly Click here.
| NEXT |
|
CHECK FOR DTC
Clear the DTC Click here.
Recheck for DTC.
| Result | Proceed to |
|---|---|
| DTC B1249 is not output | A |
| DTC B1249 is output | B |
| A |
|
END (DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY WAS DEFECTIVE) |
| B |
|
REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) Click here |
