NOISE FILTER INSTALLATION

PROCEDURE


  1. INSTALL RADIO SETTING CONDENSER

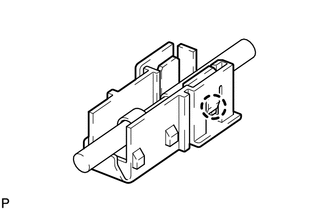

    1. A01V09D

      Engage the claw to install a new terminal cover to the wire harness.

      Note


      • Make sure to hold the wire harness so that the crimping side of the terminal is facing up when installing the wire harness to the terminal cover.

      • Make sure not to bend the exposed wire when installing the wire harness to the terminal cover.

      • Do not use excessive force when inserting the wire harness into the terminal cover.

      • If the terminal cover has been deformed at installation, replace the terminal and terminal cover with new ones.

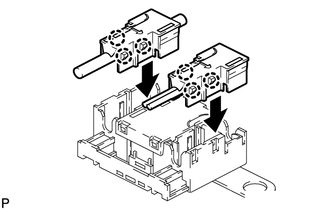

    2. A01V1U3

      Engage the 6 claws to install the 2 new terminal covers with wire harness to a new condenser.

      Note


      • Do not use excessive force when inserting the terminal cover into the condenser.

      • If the terminal cover has been deformed at installation, replace the terminals, terminal covers and condenser with new ones.

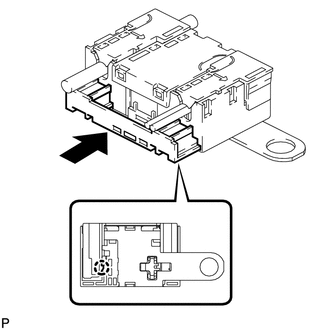

    3. A01UZYD

      Engage the claw to insert the cover as shown in the illustration.

    4. Engage the clamp to temporarily install a new radio setting condenser with wire harness.

    5. Install a new radio setting condenser with the bolt.

      Torque:
      8.4 N*m  { 86 kgf*cm, 74 in.*lbf }

  2. INSTALL DOOR CONTROL RECEIVER
