NOISE FILTER REMOVAL

PROCEDURE


  1. REMOVE DOOR CONTROL RECEIVER

    Click here

  2. REMOVE RADIO SETTING CONDENSER

    Note

    When the terminal covers are removed, the radio setting condenser must be replaced because the terminal covers and condenser are supplied as a set.

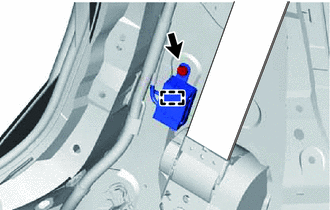

    1. A01UZX3

      Remove the bolt.

    2. Disengage the clamp and disconnect the radio setting condenser with wire harness from the vehicle body.

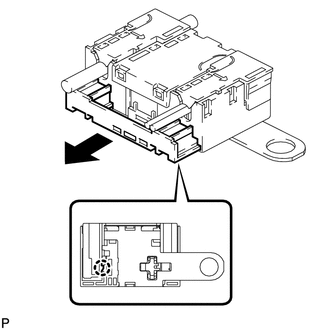

    3. A01V1VZ

      Disengage the claw and pull out the cover as shown in the illustration.

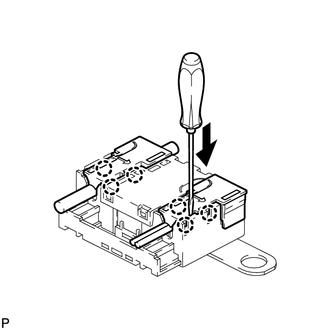

    4. A01V0YO

      Using a screwdriver, disengage the 6 claws and remove the 2 terminal covers with wire harness from the condenser.

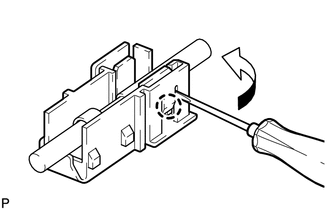

    5. A01V1X8

      Using a screwdriver, bend back and break off the claw as shown in the illustration.

    6. Remove the terminal cover from the wire harness.

      Note


      • Make sure to hold the wire harness on the crimping side of the terminal when disconnecting the wire harness from the terminal cover.

      • Make sure not to bend the exposed wire when disconnecting the wire harness from the terminal cover.

      • Check for deformation of the terminal after the wire harness has been removed from the terminal cover.
