NOISE FILTER ON-VEHICLE INSPECTION

PROCEDURE


  1. REMOVE RADIO SETTING CONDENSER


    1. With the radio setting condenser installed, check that there is no looseness or other abnormalities.

    2. Remove the bolt.

    3. Disengage the clamp and disconnect the radio setting condenser with wire harness from the vehicle body.

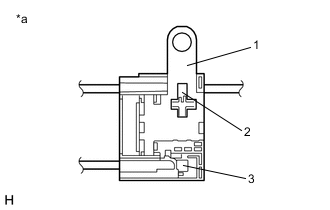

    4. A01V0NDE02
      Text in Illustration
      *a Radio Setting Condenser

      Measure the resistance and voltage of the radio setting condenser according to the value(s) in the table below.

      Note

      Before measuring the resistance and voltage, be sure to use insulated probes to avoid a short circuit between the tester terminal and bracket.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2

      • Ignition switch off

      • High mounted stop light off

      • Window defogger off

      • Luggage compartment room light off

      		 10 kΩ or higher
      1 - 3 10 kΩ or higher
      1 - Body ground Below 1 Ω
      Standard Voltage
      Tester Connection Condition Specified Condition
      2 - Body ground

      • Ignition switch ON (IG)

      • High mounted stop light off

      • Window defogger off

      • Luggage compartment room light off

      		 Below 1 V
      3 - Body ground Below 1 V
      2 - Body ground

      • Ignition switch ON (IG)

      • High mounted stop light on

      • Window defogger on

      • Luggage compartment room light on

      		 11 to 14 V
      3 - Body ground 11 to 14 V
