FRONT DOOR SPEAKER INSPECTION

PROCEDURE

1. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY (for 6 Speakers)




   1. Check the speaker installation.

      OK
      The speaker is securely installed.

   2. Visually check the speaker.

      OK
      The cone paper of the speaker is not torn.

   3.

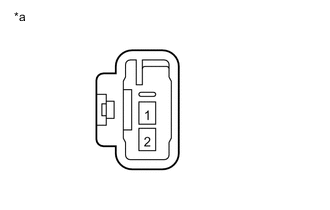

      Text in Illustration

      *a	Component without harness connected (Front No. 1 Speaker Assembly)

      Check the speaker resistance.




      1. Disconnect the front No. 1 speaker assembly connector.

      2. Measure the resistance according to the value(s) in the table below.

         Standard Resistance
         Tester Connection Condition Specified Condition 1 - 2 Always Approximately 4 Ω

         If the result is not as specified, replace the front No. 1 speaker assembly.

2. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY (for 8 Speakers)




   1. Check the speaker installation.

      OK
      The speaker is securely installed.

   2. Visually check the speaker.

      OK
      The cone paper of the speaker is not torn.

   3.

      Text in Illustration

      *a	Component without harness connected (Front No. 1 Speaker Assembly)

      Check the speaker resistance.




      1. Disconnect the front No. 1 speaker assembly connector.

      2. Measure the resistance according to the value(s) in the table below.

         Standard Resistance
         Tester Connection Condition Specified Condition 1 - 2 Always Approximately 2 Ω

         If the result is not as specified, replace the front No. 1 speaker assembly.
