POWER STEERING SYSTEM, Diagnostic DTC:C1552, C1554

DTC Code DTC Name
C1552 PIG Power Supply Voltage Malfunction
C1554 Power Supply Relay Failure

DESCRIPTION

When a problem occurs in the system, the power source relay circuit and the motor relay circuit are shut off to stop the power assist. The ECU must be replaced when there is a problem with the relays because each relay is built into the ECU.

DTC No. DTC Detection Condition Trouble Area
C1552 PIG power source circuit malfunction

  • EPS fuse

  • PIG power source circuit

  • Power steering ECU assembly
C1554 Power source relay circuit malfunction

  • EPS fuse

  • PIG power source circuit

  • Power steering ECU assembly

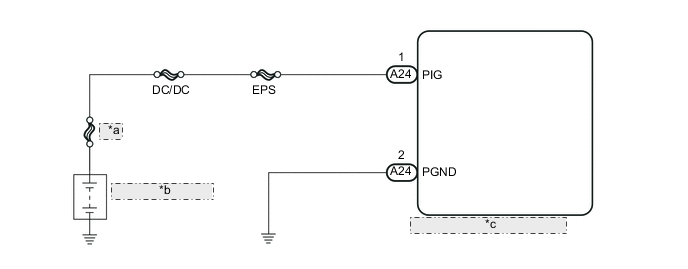

WIRING DIAGRAM

A004EYTE01
*a MAIN
*b Auxiliary Battery
*c Power Steering ECU Assembly

CAUTION / NOTICE / HINT

Note


  • If the power steering ECU assembly has been replaced with a new one, perform assist map writing and the torque sensor zero point calibration Click here.

  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE


  1. READ VALUE USING GTS (PIG POWER SUPPLY)


    1. Turn the ignition switch off.

    2. Connect the GTS to the DLC3.

    3. Turn the ignition switch to ON (IG).

    4. Turn the GTS on.

    5. Enter the following menus: Chassis / EMPS / Data List.

    6. Select the item PIG Power Supply in the Data List and read the value displayed on the GTS.

      EMPS
      GTS Display Measurement Item/Range Normal Condition Diagnostic Note
      PIG Power Supply

      Power source voltage to activate motor/

      Min.: 0.0000 V

      Max.: 20.1531 V

      		 9 to 16 V Always

    OK

    USE SIMULATION METHOD TO CHECK Click here

    NG

  2. CHECK HARNESS AND CONNECTOR (POWER STEERING ECU ASSEMBLY - BODY GROUND)


    1. A01UZC3E01
      Text in Illustration
      *a

      Rear view of wire harness connector

      (to Power Steering ECU Assembly)

      Disconnect the power steering ECU assembly connector.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      A24-1 (PIG) - Body ground Always 9 to 16 V

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      A24-2 (PGND) - Body ground Always Below 1 Ω
      Result
      Result Proceed to
      NG A
      OK (for LHD) B
      OK (for RHD) C

    A

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    B

    REPLACE POWER STEERING ECU ASSEMBLY Click here

    C

    REPLACE POWER STEERING ECU ASSEMBLY Click here
