SHIFT LEVER DISASSEMBLY

PROCEDURE


  1. REMOVE POSITION INDICATOR HOUSING


    1. A01UZ0M

      Disengage the 4 claws and remove the position indicator housing from the shift lock control unit assembly.

      Note

      Do not damage the position indicator housing.

  2. REMOVE CONTROL POSITION INDICATOR PLATE


    1. A01V0EM

      Disengage the claw and remove the control position indicator plate from the position indicator housing.

  3. REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY


    1. A01UYCV

      Disengage the claw and pull out the shift lock control ECU sub-assembly from the shift lock control unit assembly.

    2. A01UY1B

      Disengage the 3 clamps and separate the shift lock solenoid wire from the shift lock unit cover.

    3. Disconnect the shift lock solenoid connector from the shift lock control ECU sub-assembly.

    4. A01V038

      Disengage the 3 claws and remove the shift lock unit cover from the shift lock control ECU sub-assembly.

  4. REMOVE POSITION INDICATOR SLIDE COVER

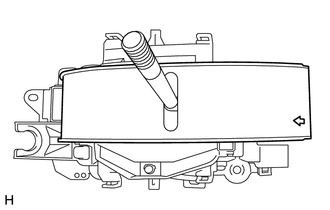

    1. A01UZ5W

      Remove the position indicator slide cover from the shift lock control unit assembly.

  5. REMOVE NO. 2 POSITION INDICATOR SLIDE COVER


    1. A01UZHJ

      Align the cutouts on the shank of the No. 2 position indicator slide cover and the position indicator slide cover, and remove the No. 2 position indicator slide cover from the position indicator slide cover.

  6. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY

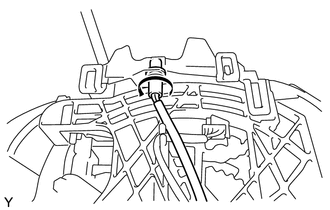

    1. A01UXVK

      Separate the indicator light wire socket from the lower position indicator housing.

    2. A01V1OL

      Disengage the 4 clamps and remove the indicator light wire sub-assembly from the shift lock control unit assembly.

  7. REMOVE POSITION INDICATOR LIGHT BULB


    1. Remove the position indicator light bulb from the indicator light wire sub-assembly.

  8. REMOVE POSITION INDICATOR LIGHT CAP


    1. Remove the position indicator light cap from the position indicator light bulb.

  9. REMOVE LOWER POSITION INDICATOR HOUSING

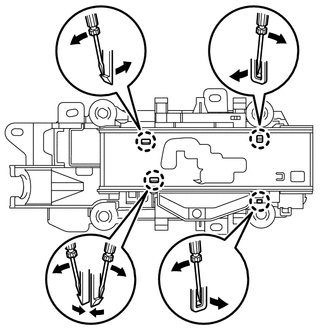

    1. A01UXLA

      Using a screwdriver, disengage the 4 claws and remove the lower position indicator housing from the shift lock control unit assembly.
