BLACK OUT TAPE(for Center Pillar) INSTALLATION

PROCEDURE


  1. INSTALL NO. 3 BLACK OUT TAPE


    1. Application precautions Click here.

    2. Clean the attachment surface (using an infrared light) Click here.

    3. Clean the attachment surface (using a tape removal disc) Click here.

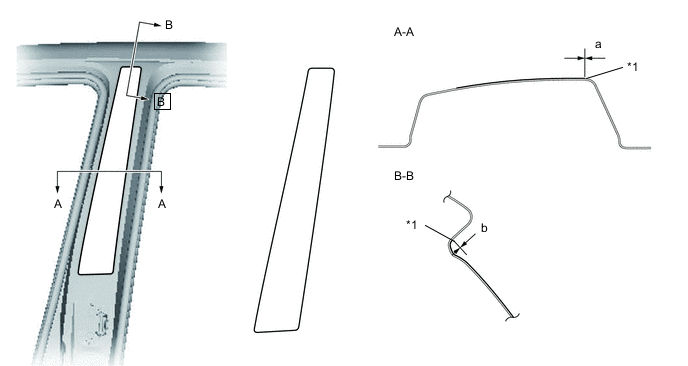

    4. Apply new black out tape to the positions shown in the illustration.

      A01V0GTE02
      *1 R End
      Standard Measurement
      Dimension Measurement
      a 2.0 to 4.0 mm (0.079 to 0.157 in.)
      b 5.0 to 7.0 mm (0.197 to 0.276 in.)
