FRONT BUMPER COMPONENTS

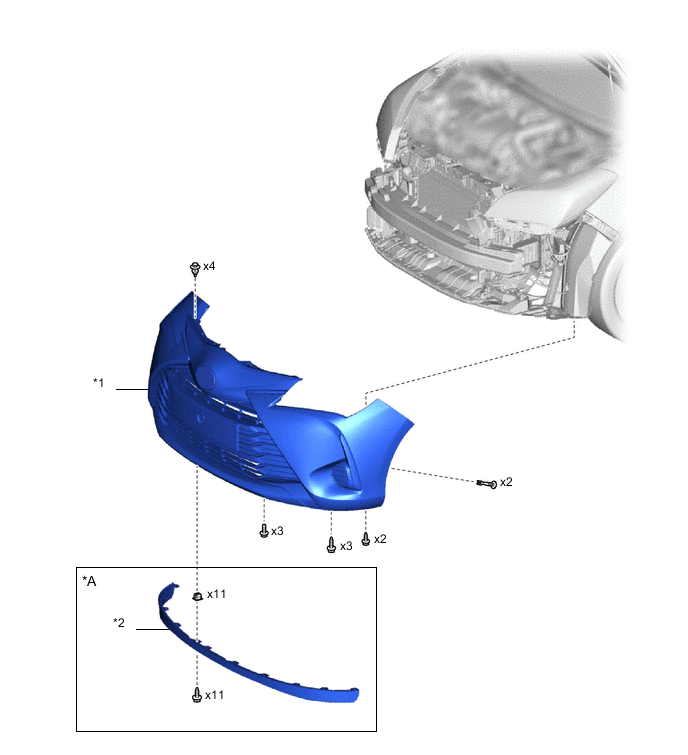

ILLUSTRATION
| *A | w/ Front Spoiler | - | - |
| *1 | FRONT BUMPER ASSEMBLY | *2 | FRONT SPOILER COVER |

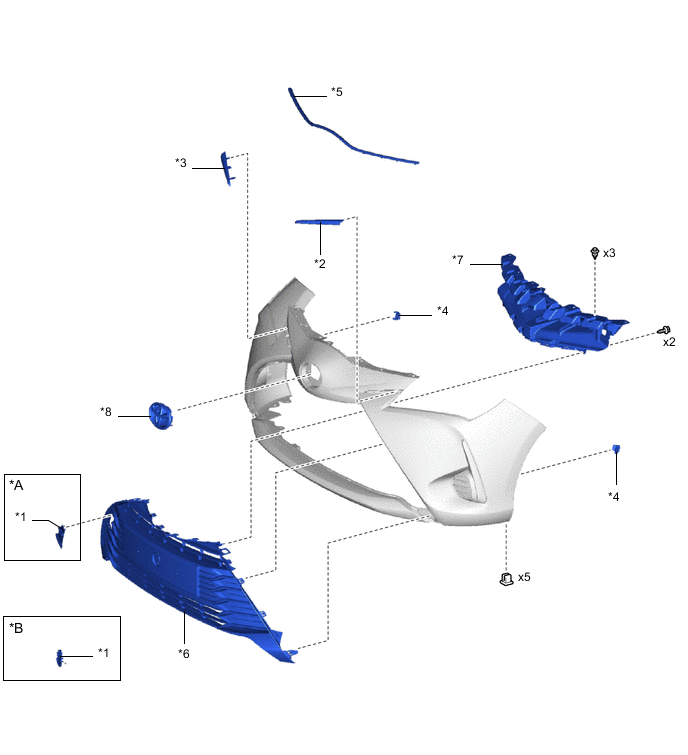

ILLUSTRATION
| *A | for Type A | *B | for Type B |
| *1 | FRONT BUMPER HOLE COVER | *2 | FRONT BUMPER SIDE MOULDING LH |
| *3 | FRONT BUMPER SIDE MOULDING RH | *4 | FRONT FENDER LINER RETAINER |
| *5 | HOOD TO FRONT END PANEL SEAL | *6 | LOWER RADIATOR GRILLE SUB-ASSEMBLY |
| *7 | RADIATOR GRILLE | *8 | RADIATOR GRILLE (OR FRONT PANEL) EMBLEM |

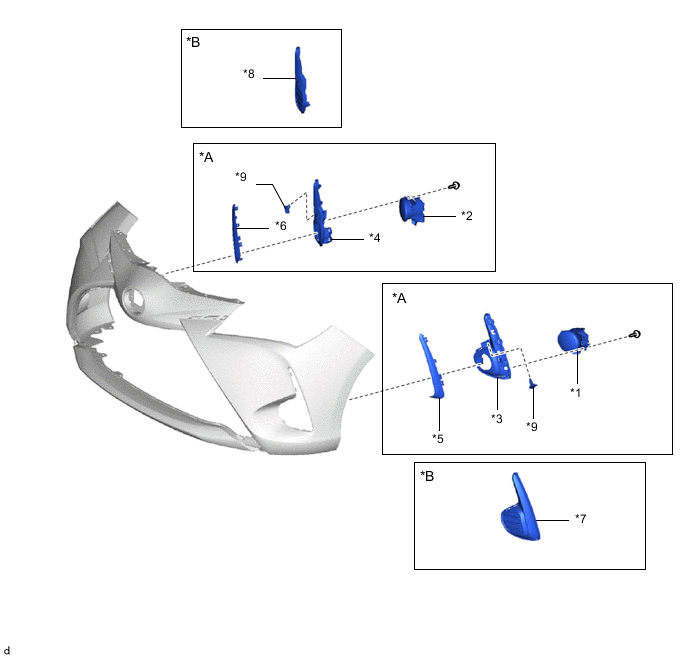

ILLUSTRATION
| *A | w/ Fog Light | *B | w/o Fog Light |
| *1 | FOG LIGHT ASSEMBLY LH | *2 | FOG LIGHT ASSEMBLY RH |
| *3 | FOG LIGHT COVER LH | *4 | FOG LIGHT COVER RH |
| *5 | FOG LIGHT MOUNTING BRACKET LH | *6 | FOG LIGHT MOUNTING BRACKET RH |
| *7 | FRONT BUMPER HOLE COVER LH | *8 | FRONT BUMPER HOLE COVER RH |
| *9 | OUTSIDE MOULDING RETAINER | - | - |

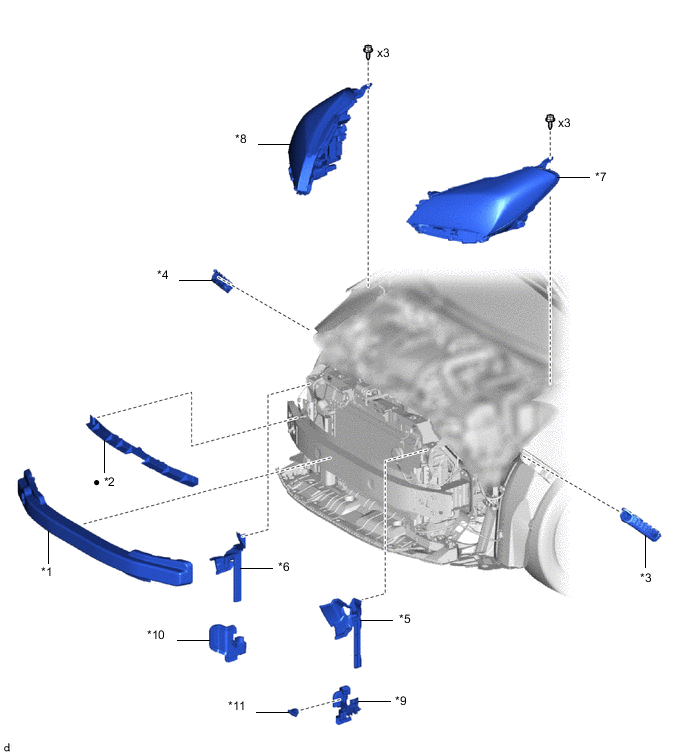

ILLUSTRATION
| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER REINFORCEMENT EXTENSION |
| *3 | FRONT BUMPER SIDE RETAINER LH | *4 | FRONT BUMPER SIDE RETAINER RH |
| *5 | FRONT RADIATOR SIDE AIR GUIDE PLATE LH | *6 | FRONT RADIATOR SIDE AIR GUIDE PLATE RH |
| *7 | HEADLIGHT ASSEMBLY LH | *8 | HEADLIGHT ASSEMBLY RH |
| *9 | NO. 1 RADIATOR AIR GUIDE LH | *10 | NO. 1 RADIATOR AIR GUIDE RH |
| *11 | THERMISTOR ASSEMBLY | - | - |
| ● | Non-reusable part | - | - |

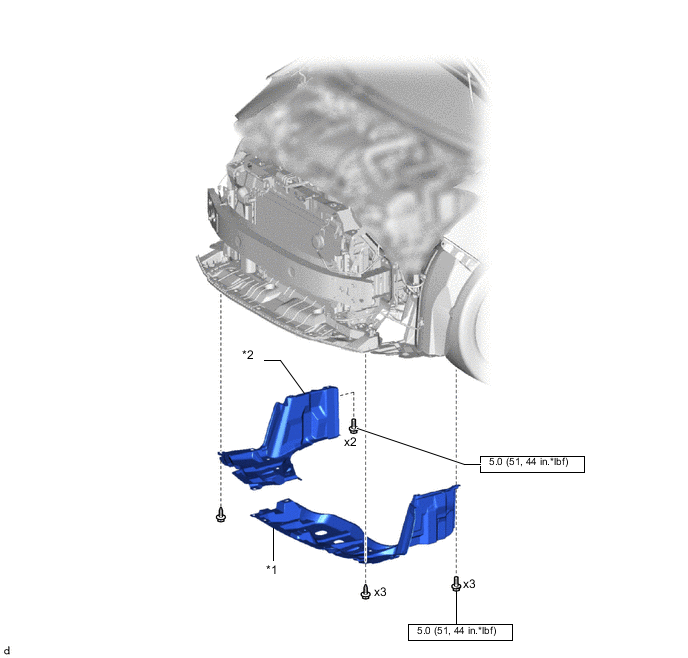

ILLUSTRATION
| *1 | ENGINE UNDER COVER LH | *2 | ENGINE UNDER COVER RH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

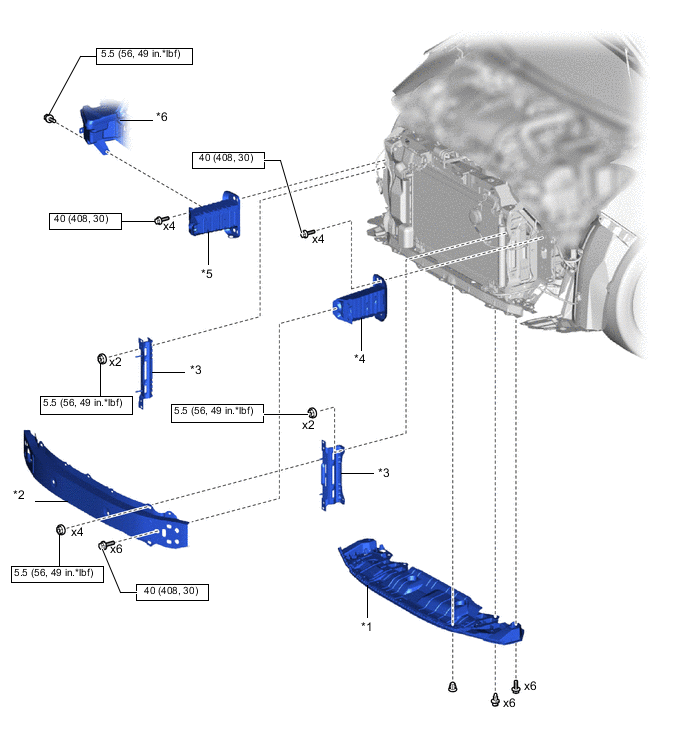

ILLUSTRATION
| *1 | FRONT BUMPER ENERGY ABSORBER SUB-ASSEMBLY | *2 | FRONT BUMPER REINFORCEMENT |
| *3 | FRONT NO. 1 BUMPER STONE DEFLECTOR BRACKET | *4 | FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH |
| *5 | FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH | *6 | WINDSHIELD WASHER JAR ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
