HORN INSPECTION

PROCEDURE


  1. INSPECT LOW PITCHED HORN ASSEMBLY

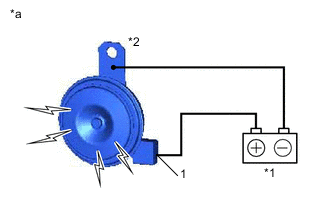

    1. A01UYQ1E01
      Text in Illustration
      *1 Auxiliary Battery
      *2 Bracket
      *a

      Component without harness connected

      (Low Pitched Horn Assembly)

      Check the operation.


      1. Apply auxiliary battery voltage to the terminal and the horn bracket, and check that the horn sounds.

        OK
        Measurement Condition Specified Condition

        Battery positive (+) → Terminal 1

        Battery negative (-) → Bracket

        		 Low pitched horn sounds

        If the result is not as specified, replace the low pitched horn.
