AUTOMATIC HIGH BEAM MAIN SWITCH REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Click here

  2. REMOVE AUTO HIGH BEAM SWITCH

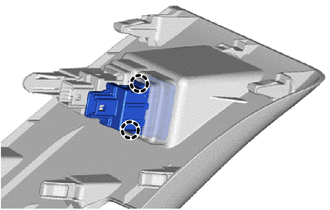

    1. A01V1Y9

      Disengage the 2 claws to remove the auto high beam switch.
