REAR LIGHT ASSEMBLY(for Bulb Type Stop Light) REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. REMOVE BACK DOOR TRIM BOARD

    Click here

  2. REMOVE REAR LIGHT ASSEMBLY


    1. w/ Rear fog light:


      1. A004A1C

        Disconnect the connector.

    2. w/o Rear fog light:

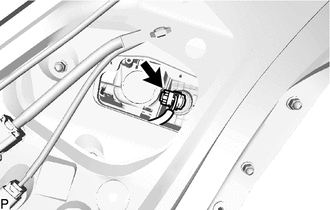

      1. A004B4B

        Disconnect the connector.

    3. A004BC0

      Remove the 3 nuts and the rear light assembly.
