REAR COMBINATION LIGHT ASSEMBLY(for Bulb Type Stop Light) COMPONENTS

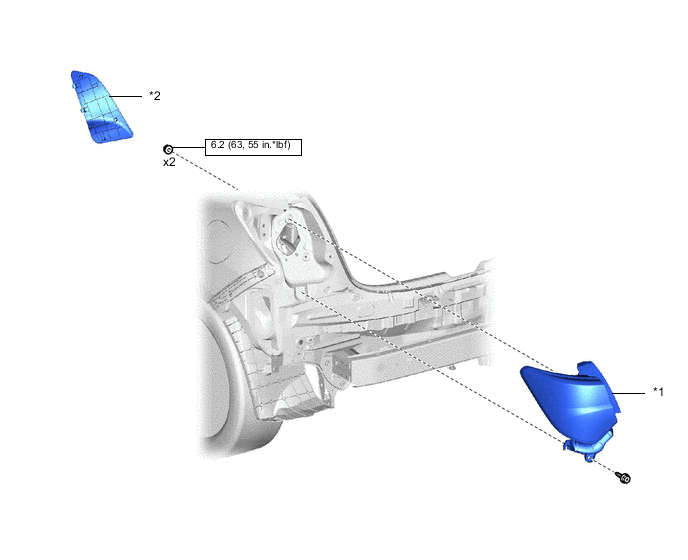

ILLUSTRATION
| *1 | REAR COMBINATION LIGHT ASSEMBLY | *2 | REAR COMBINATION LIGHT SERVICE COVER |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

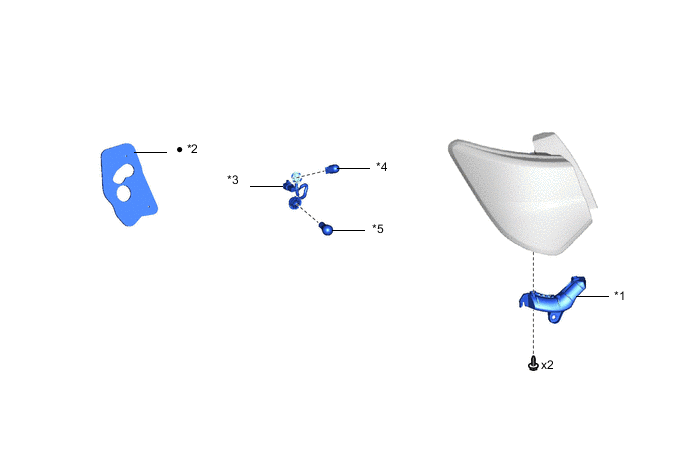

ILLUSTRATION
| *1 | REAR BUMPER SIDE SUPPORT | *2 | REAR COMBINATION LIGHT PACKING |
| *3 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY | *4 | REAR TURN SIGNAL LIGHT BULB |
| *5 | TAIL AND STOP LIGHT BULB | - | - |
| ● | Non-reusable part | - | - |
