HEADLIGHT ASSEMBLY REASSEMBLY

PROCEDURE


  1. INSTALL FRONT TURN SIGNAL LIGHT BULB


    1. Install the front turn signal light bulb into the front turn signal light socket.

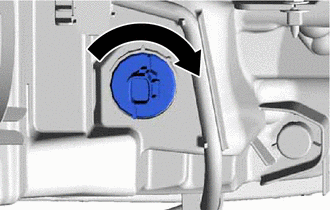

    2. A01V027

      Turn the front turn signal light socket with the front turn signal light bulb in the direction indicated by the arrow in the illustration, to install them.

  2. INSTALL NO. 1 HEADLIGHT BULB

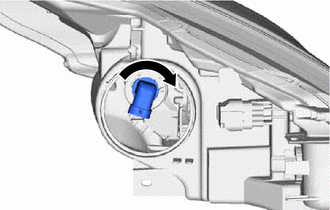

    1. A01UZLB

      Turn the No. 1 headlight bulb in the direction indicated by the arrow in the illustration to install it.

      Note

      Do not touch the bulb glass with your fingers.

    2. A01V1SS

      Connect the connector.

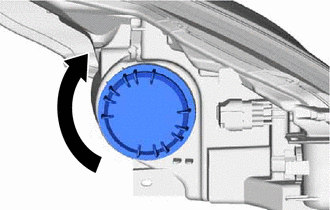

    3. A01UZ8B

      Turn the No. 1 headlight back cover in the direction indicated by the arrow in the illustration to install it.
