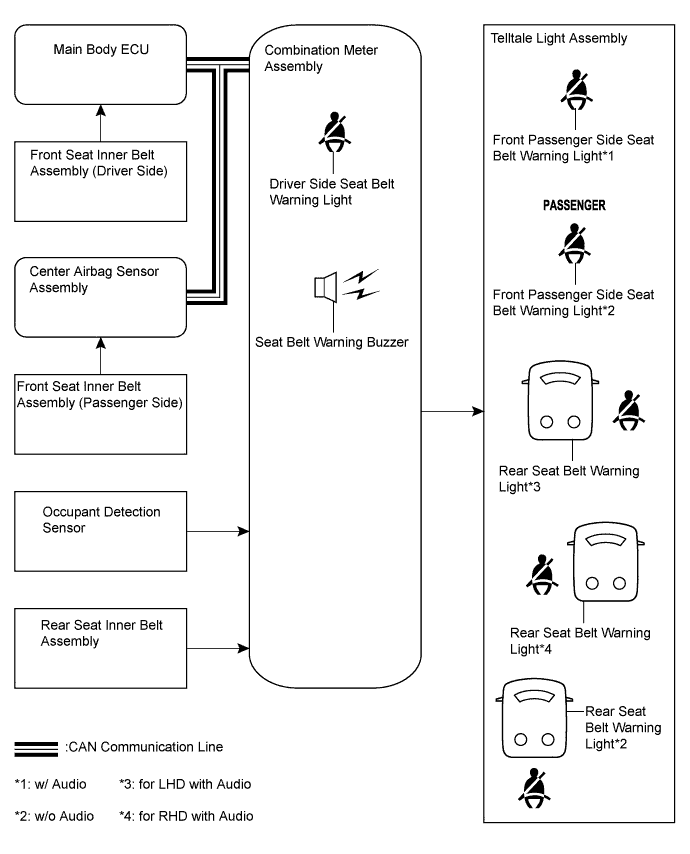

SEAT BELT WARNING SYSTEM SYSTEM DIAGRAM

Communication Table

Sender	Receiver	Signal	Line
Main body ECU	Combination meter assembly	Front seat inner belt switch signal (driver side)	CAN
Center airbag sensor assembly	Combination meter assembly	Front seat inner belt switch signal (passenger side)	CAN
