METER / GAUGE SYSTEM PARTS LOCATION

ILLUSTRATION

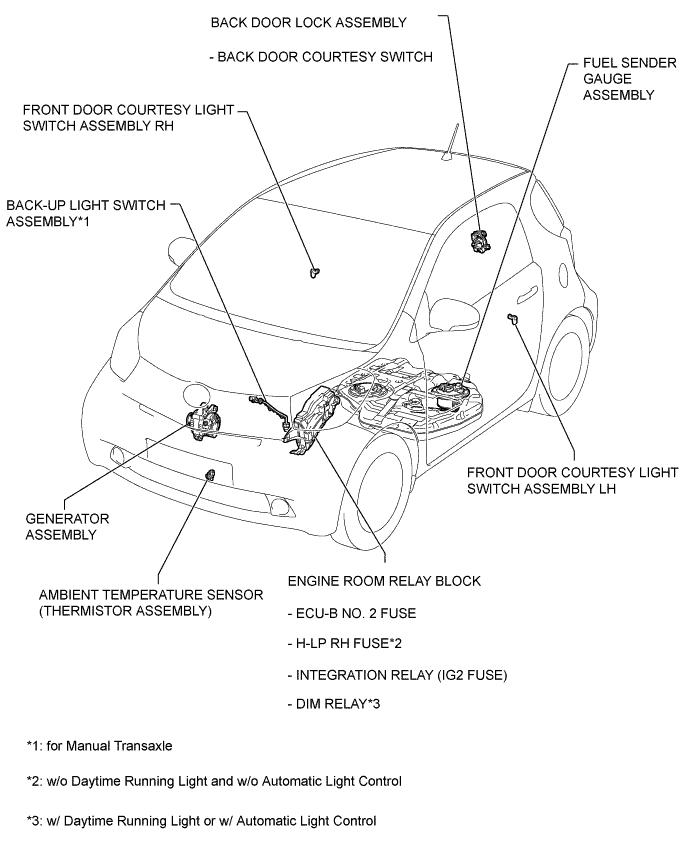

A011ACBE01

ILLUSTRATION

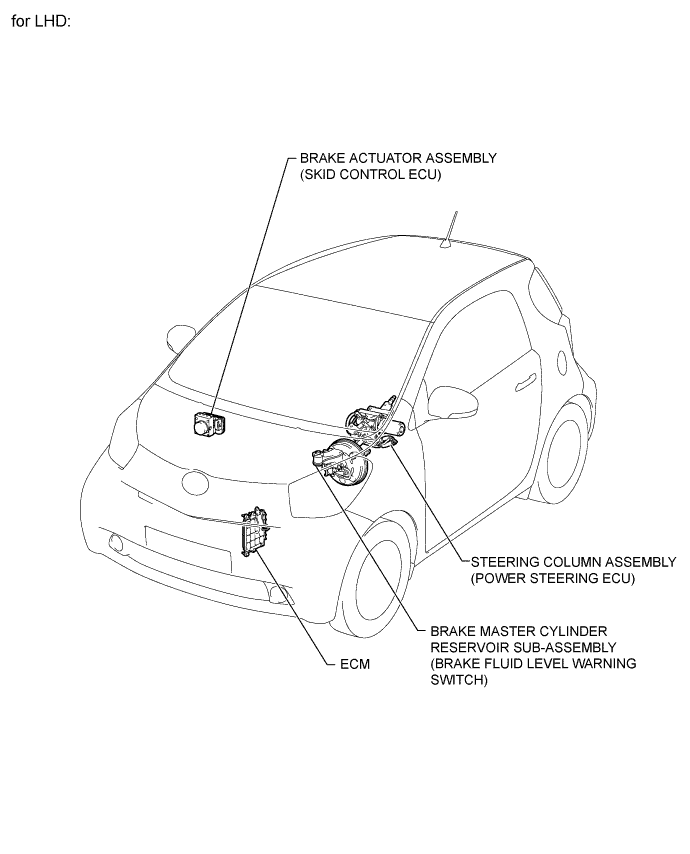

A011A1JE01

ILLUSTRATION

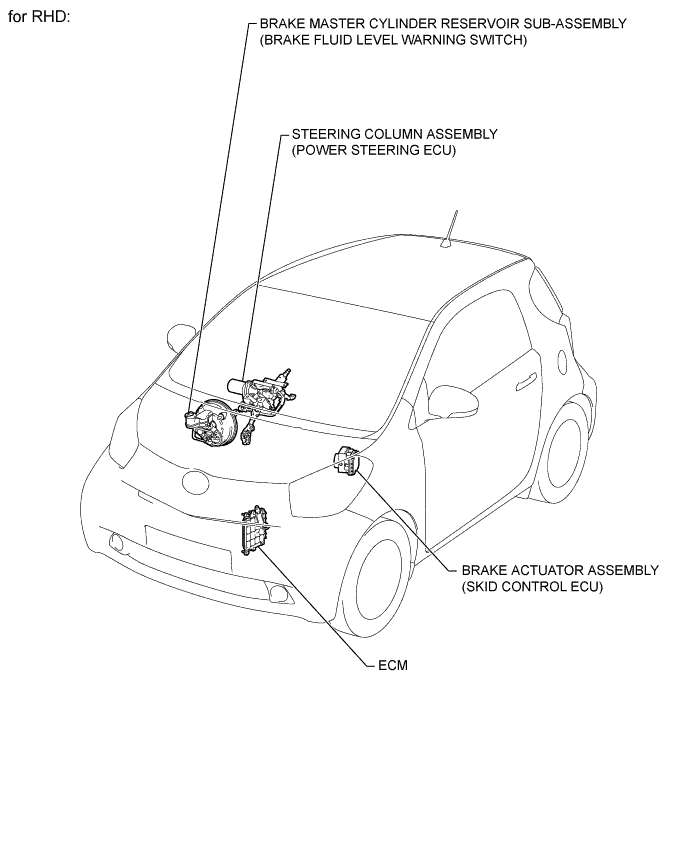

A0119JLE01

ILLUSTRATION

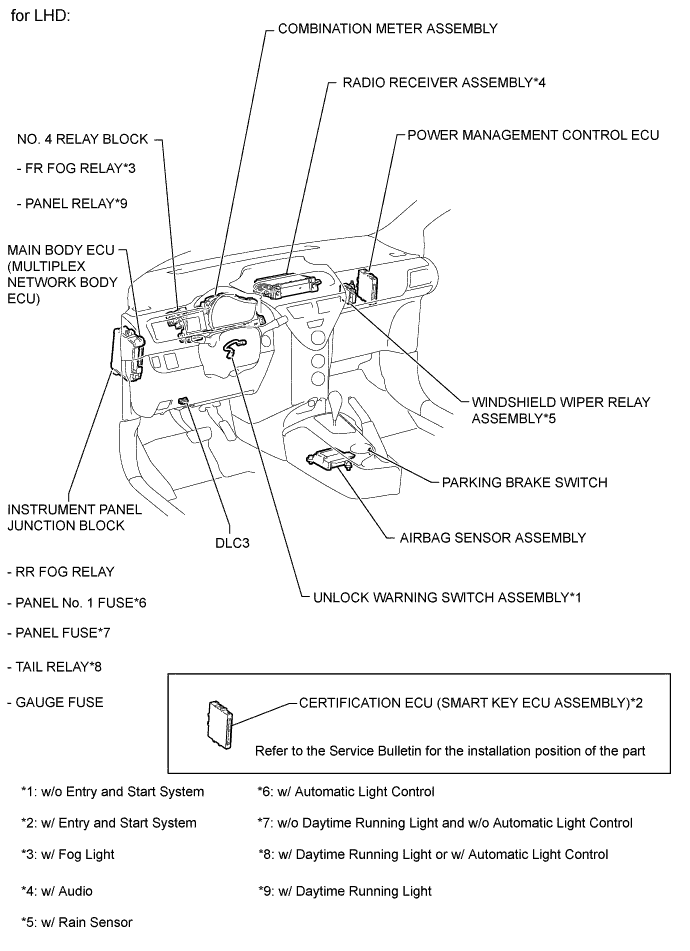

A011BR1E01

ILLUSTRATION

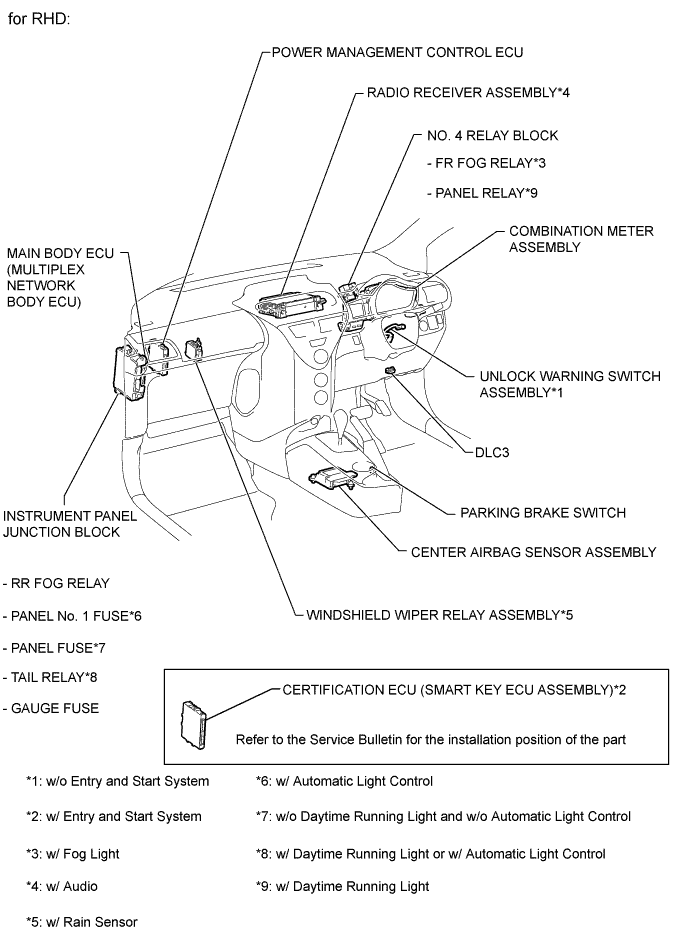

A0118WIE01

ILLUSTRATION

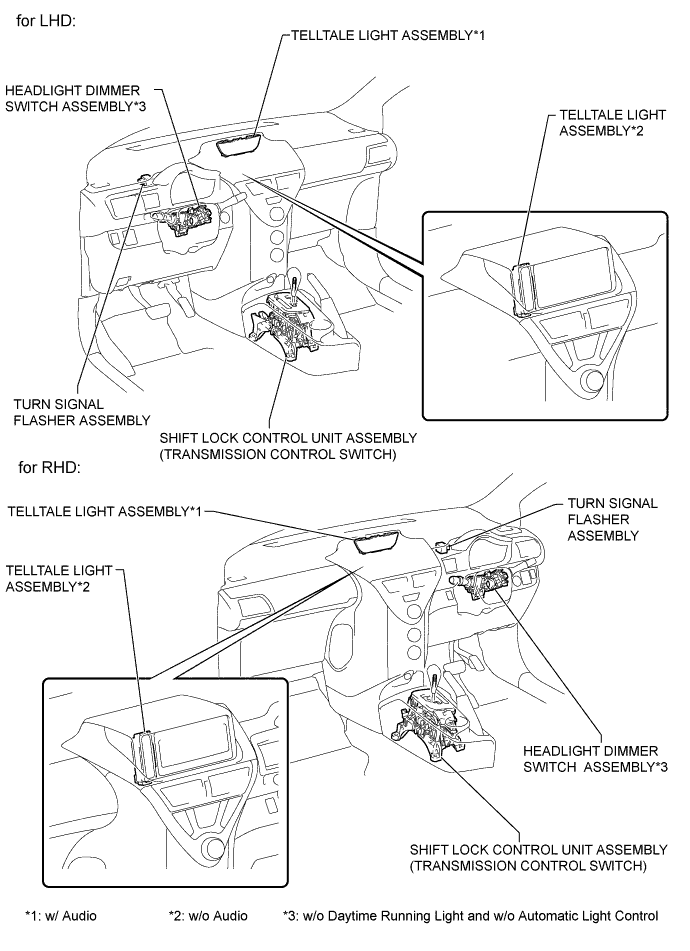

A011AFNE01

ILLUSTRATION

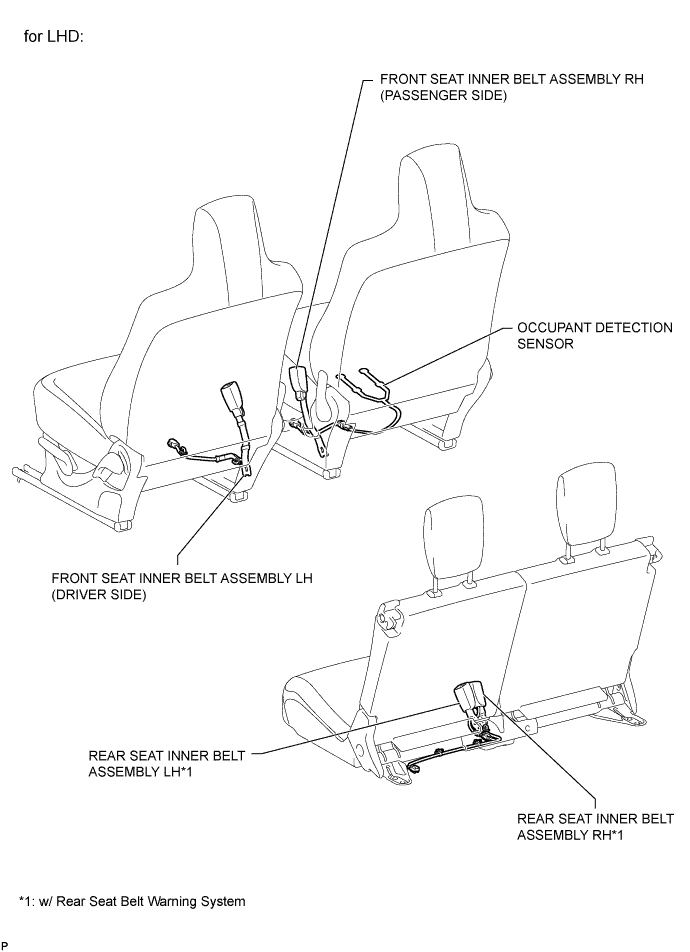

A011ACXE03

ILLUSTRATION

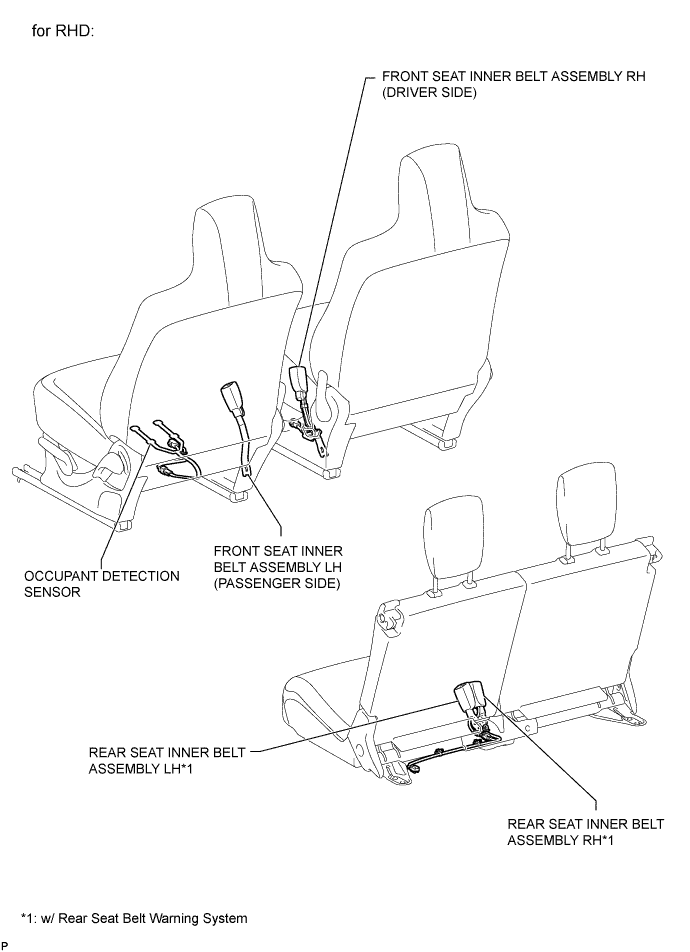

A0118QRE03

ILLUSTRATION

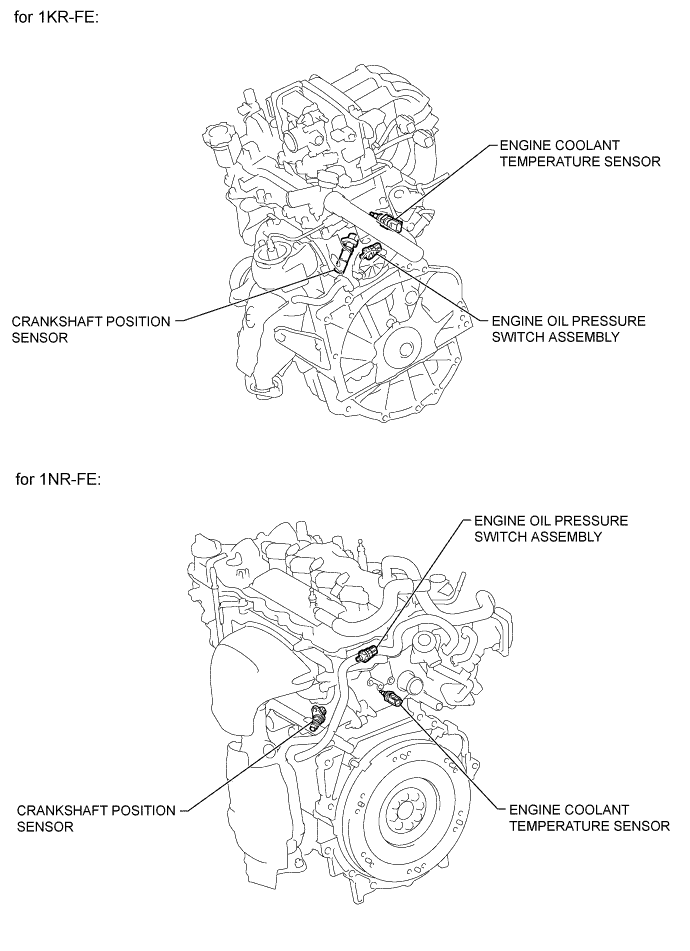

A0119X8E01
