BRAKE BOOSTER (for RHD) INSPECTION


  1. INSPECT BRAKE VACUUM CHECK VALVE ASSEMBLY

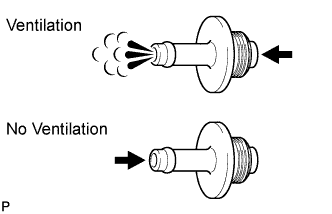

    1. A011704E01

      Check that there is ventilation from the booster to the engine, and no ventilation from the engine to the booster. If the results are not as specified, replace the brake vacuum check valve assembly.
