VEHICLE STABILITY CONTROL SYSTEM, Diagnostic DTC:C1422

DTC Code DTC Name
C1422 Master Cylinder Pressure Sensor Zero Point High Malfunction

DESCRIPTION

The master cylinder pressure sensor is connected to the skid control ECU in the brake actuator assembly.

A0119Q8E06
DTC Code DTC Detection Condition Trouble Area
C1422 When the stop light switch is OFF, the PMC terminal voltage is more than 0.86 V for 5 seconds or more.

  • Stop light switch

  • Stop light switch circuit

  • Master cylinder pressure sensor circuit

  • Brake actuator assembly (Master cylinder pressure sensor)

WIRING DIAGRAM

Refer to DTC C1425 Click here.

INSPECTION PROCEDURE

Note


  • When replacing the brake actuator assembly, perform zero point calibration Click here.

  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.

Tech Tips

When C1425 is output together with C1422, inspect and repair the trouble areas indicated by C1425 first Click here.

PROCEDURE


  1. CHECK STOP LIGHT OPERATION


    1. Check that the stop lights come on when the brake pedal is depressed, and go off when the brake pedal is released.

      OK
      Condition Illumination Condition
      Brake pedal depressed ON
      Brake pedal released OFF

    NG

    INSPECT STOP LIGHT CIRCUIT Click here

    OK

  2. READ VALUE USING INTELLIGENT TESTER (STOP LIGHT SWITCH)


    1. Connect the intelligent tester to the DLC3.

    2. Turn the ignition switch to ON.

    3. Enter the following menus: Chassis / ABS/VSC/TRC / Data List.

      ABS/VSC/TRC (Skid Control ECU)
      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Stop Light SW Stop light switch / ON or OFF

      ON: Brake pedal depressed

      OFF: Brake pedal released

      		 -

    4. Check that the stop light condition observed on the intelligent tester changes according to brake pedal operation.

      OK
      The intelligent tester displays ON or OFF according to brake pedal operation.

    NG

    INSPECT SKID CONTROL ECU (STP TERMINAL) Click here

    OK

  3. CHECK BRAKE PEDAL AND STOP LIGHT SWITCH INSTALLATION


    1. Turn the ignition switch off.

    2. Check the brake pedal height and stop light switch installation Click here.

      OK
      The brake pedal height and stop light switch installation are normal.

    NG

    ADJUST BRAKE PEDAL OR STOP LIGHT SWITCH Click here

    OK

  4. RECONFIRM DTC


    1. Clear the DTCs Click here.

    2. Start the engine.

    3. Drive the vehicle at a speed of 40 km/h (25 mph) or more and perform braking test (decelerate the vehicle by depressing the brake pedal).

    4. Check if the same DTC is recorded Click here.

      Result
      Result Proceed to
      DTC (C1422) is not output A
      DTC (C1422) is output B

    B

    REPLACE BRAKE ACTUATOR ASSEMBLY Click here

    A

    CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION) Click here

  5. INSPECT SKID CONTROL ECU (STP TERMINAL)

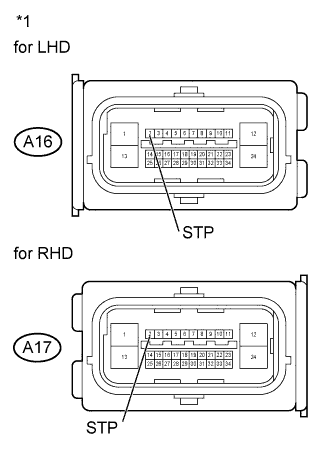

    1. A01196QE08
      Text in illustration
      *1

      Front view of wire harness connector

      (to Skid Control ECU)

      Turn the ignition switch off.

    2. Make sure that there is no looseness at the locking part and the connecting part of the connectors.

    3. Disconnect the skid control ECU connector.

    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      for LHD
      Tester Connection Switch Condition Specified Condition
      A16-2 (STP) - Body ground

      Stop light switch ON

      (Brake pedal depressed)

      		 8 to 14 V
      A16-2 (STP) - Body ground

      Stop light switch OFF

      (Brake pedal released)

      		 Below 1.5 V
      for RHD
      Tester Connection Switch Condition Specified Condition
      A17-2 (STP) - Body ground

      Stop light switch ON

      (Brake pedal depressed)

      		 8 to 14 V
      A17-2 (STP) - Body ground

      Stop light switch OFF

      (Brake pedal released)

      		 Below 1.5 V

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (STP CIRCUIT)

    OK

    REPLACE BRAKE ACTUATOR ASSEMBLY Click here
