STARTER (for 2.0 kW Type) REMOVAL


  1. REMOVE ECM


    1. Remove the ECM Click here.

  2. REMOVE ENGINE UNDER COVER

    A011A8B

    1. Remove the 4 bolts, 4 clips and the engine under cover.

  3. REMOVE NO. 3 AIR HOSE

    A011AZ7

    1. Loosen the hose clamp and separate the No. 3 air hose.

  4. REMOVE STARTER ASSEMBLY

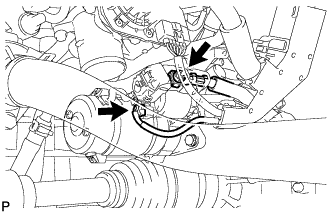

    1. A0117L2

      Open the terminal cap.

    2. Remove the nut and disconnect the terminal 30.

    3. Disconnect the connector.

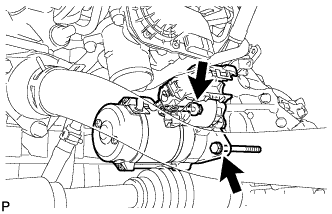

    4. A0117WK

      Remove the 2 bolts and the starter assembly.
