HEATED OXYGEN SENSOR INSTALLATION


  1. INSTALL HEATED OXYGEN SENSOR

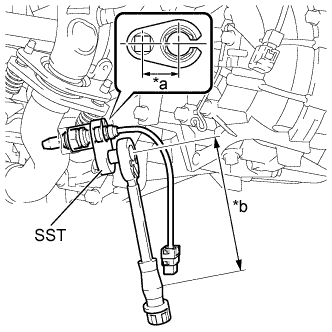

    1. A011AIAE01
      Text in Illustration
      *a

      Fulcrum Length

      30 mm (1.18 in.)
      *b

      Fulcrum Length

      300 mm (11.81 in.)

      Using SST, install the heated oxygen sensor onto the front exhaust pipe assembly.

      SST
      09224-00010

      Note

      Do not use a sensor that has been dropped or subjected to a strong impact.

      Torque:
      without SST
      44 N*m  { 449 kgf*cm, 32 ft.*lbf }
      with SST
      40 N*m  { 408 kgf*cm, 30 ft.*lbf }

      Tech Tips


      • This torque value is effective when SST is parallel to the torque wrench.

      • The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).

      • The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.).

      • If using a torque wrench with a different length, or connecting the torque wrench and SST at an angle, refer to the alternate torque values Click here.

    2. Connect the connector of the heated oxygen sensor.

    3. Connect the heated oxygen sensor wire onto the wiring harness clamp bracket.

  2. INSPECT FOR EXHAUST GAS LEAK

  3. INSTALL NO. 2 ENGINE UNDER COVER

    Torque:
    5.0 N*m  { 51 kgf*cm, 44 in.*lbf }
