HEATED OXYGEN SENSOR INSTALLATION


  1. INSTALL HEATED OXYGEN SENSOR

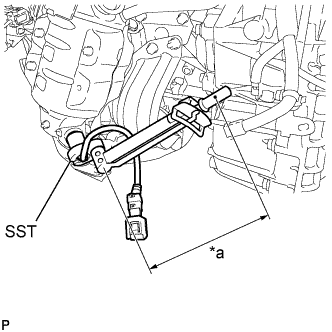

    1. A01199WE01
      Text in Illustration
      *a Fulcrum Length

      Using SST, install the heated oxygen sensor.

      SST
      09224-00010
      Torque:
      without SST
      44 N*m  { 449 kgf*cm, 32 ft.*lbf }
      with SST
      40 N*m  { 408 kgf*cm, 30 ft.*lbf }

      Tech Tips


      • The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).

      • The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.) Click here.

      • This torque value is effective when SST is parallel to the torque wrench.

    2. Connect the heated oxygen sensor connector.

  2. INSPECT FOR EXHAUST GAS LEAK

  3. INSTALL NO. 2 ENGINE UNDER COVER

    Torque:
    5.0 N*m  { 51 kgf*cm, 44 in.*lbf }
