CRANKSHAFT POSITION SENSOR INSPECTION


  1. INSPECT CRANKSHAFT POSITION SENSOR

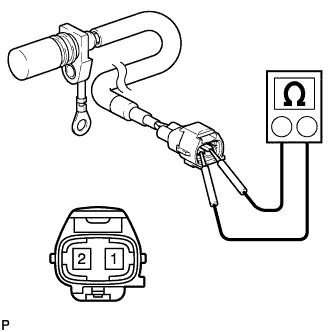

    1. A011B9H
      Text in Illustration
      *1

      Component without harness connected

      (Crankshaft Position Sensor)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 1850 to 2450 Ω

      If the resistance is not as specified, replace the sensor.
