SIDE TURN SIGNAL LIGHT ASSEMBLY INSPECTION


  1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY

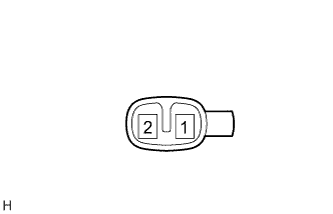

    A011BU2

    1. Connect the (+) lead from the battery to terminal 1 and the (-) lead to terminal 2.

    2. Check that the side turn signal light comes on.

      OK
      The light comes on.

      If the result is not as specified, replace the side turn signal light.
