SEAT HEATER SWITCH INSTALLATION

Tech Tips


  • Use the same procedure for LHD and RHD vehicles.

  • The procedure listed below is for LHD vehicles.


  1. INSTALL SEAT HEATER SWITCH (for RH Side)

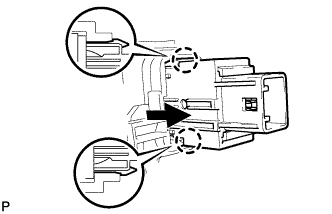

    1. A010P24

      Attach the 2 claws to install the seat heater switch.

  2. INSTALL SEAT HEATER SWITCH (for LH Side)

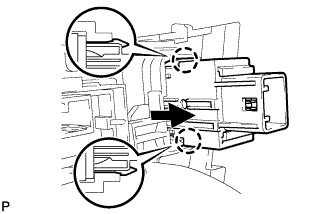

    1. A010RTH

      Attach the 2 claws to install the seat heater switch.

  3. INSTALL LOWER INSTRUMENT CLUSTER FINISH PANEL


    1. A010S1UE01
      Text in Illustration
      *1 w/ Seat Heater System

      Connect the connectors.

    2. A010OSJ

      Attach the 2 clips to install the finish panel.

  4. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY (for Manual Transaxle)


    1. A010QW2

      Attach the 2 claws and 6 clips to install the console panel.

    2. A010Q3P

      Attach the cover to the shaft.

  5. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transaxle)


    1. A010PTR

      Connect the connector.

    2. Attach the 2 claws and 6 clips to install the console panel.

  6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)


    1. A010Q4J

      Install the shift lever knob and twist it in the direction indicated by the arrow.

  7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)


    1. A010QEM

      Install the shift lever knob and twist it in the direction indicated by the arrow.

  8. INSTALL INSTRUMENT PANEL FINISH PANEL END RH (for LHD)


    1. A00OSPV

      Attach the 4 clips and 5 claws to install the panel end.

  9. INSTALL INSTRUMENT PANEL FINISH PANEL END RH (for RHD)


    1. w/o TOYOTA Parking Assist-sensor System:


      1. Attach the 4 clips and 5 claws to install the panel end.

    2. w/ TOYOTA Parking Assist-sensor System:


      1. Connect the connector.

      2. Attach the 4 clips and 5 claws to install the panel end.

        A00OW4UE01

  10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH


    1. Attach the 4 clips and 5 claws to install the panel end.

      A00OQEVE01

  11. INSTALL NO. 3 BOX PANEL (w/ Console Box Lid)


    1. When replacing the No. 3 box panel with a new one:


      1. A010S0KE01
        Text in Illustration
        *1 Cut

        Cut off the rib (the piece used to maintain the shape of the panel) shown in the illustration.

    2. Attach the 6 clips to install the box panel.

      A010QVSE02

  12. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL


    1. A00OW2FE01
      Text in Illustration
      *1 Guide
      *2 Clamp

      Attach the guide near the front of the vehicle.

    2. Attach the clamp.

    3. Attach the 2 clips and 5 claws to install the finish panel.

  13. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL


    1. A00OT9HE01
      Text in Illustration
      *1 Guide
      *2 Clamp

      Attach the guide near the front of the vehicle.

    2. Attach the clamp.

    3. Attach the 2 clips and 5 claws to install the finish panel.

  14. INSPECT FRONT SEAT ASSEMBLY


    1. Check the seat heater operation.


      1. Turn the ignition switch to ON.

      2. Operate the seat heater switch on.

      3. Wait 5 minutes or more and confirm that the seat surface becomes warm.
