METER / GAUGE SYSTEM SYSTEM DESCRIPTION

METER GAUGE AND WARNING/INDICATOR

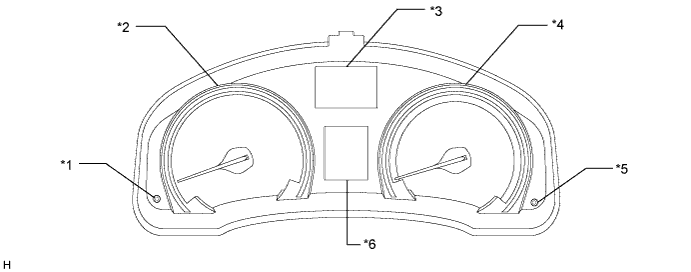

Text in Illustration
*1	ODO/TRIP Switch	*4	Speedometer
*2	Tachometer	*5	Rheostat Switch
*3	Multi-information Display	*6	Fuel Receiver Gauge Engine Coolant Temperature Receiver Gauge Clock Display Automatic Transaxle Display (for Automatic Transaxle)

Meter/Gauge
Item	Details
Speedometer	Based on a signal received from the wheel speed sensor, the skid control ECU calculates the vehicle speed and transmits data to the combination meter (CAN).
Tachometer	The combination meter receives an engine speed signal from the ECM and the gauge needle operates (CAN).
ODO/TRIP meter	The combination meter receives a vehicle speed pulse integration signal from the skid control ECU and the ODO/TRIP meter display operates (CAN). The ODO/TRIP meter display changes when the ODO/TRIP switch is operated.
Fuel receiver gauge	The combination meter receives fuel amount information measured by the fuel sender gauge and the gauge needle operates (Direct line).
Engine coolant temperature receiver gauge	The combination meter receives an engine coolant temperature signal from the ECM and the gauge needle operates (CAN).

Warning/Indicator
Item	Details
BEAM indicator light	Receives BEAM indicator light signals from the main body ECU (CAN).
FRONT FOG indicator light*1	The indicator turns on when a FRONT FOG illumination command signal is received (CAN).
REAR FOG indicator light*2	The indicator turns on when a REAR FOG illumination command signal is received (CAN).
SRS warning light	Receives malfunction signals from the center airbag sensor (CAN).
Front seat belt warning light	Receives driver seat belt signals (unfastened) from the main body ECU (CAN). Receives passenger seat belt signals (unfastened) from the front seat inner belt RH9, LH10 (Direct line). Receives passenger seat signals from the occupant detection sensor (Direct line).
Brake system warning light (Yellow indicator)	Comes on when the electric parking brake system is malfunctioning (Direct line).
Brake system warning light (Red indicator)	Comes on when the brake fluid level warning switch is on (CAN). Comes on when the brake system is malfunctioning (CAN).
CHARGE warning light	Receives malfunction signals from the generator (Direct line) or ECM (CAN).
ABS warning light	Receives malfunction signals from the skid control ECU (CAN).
MIL	Receives malfunction signals from the ECM (Direct line).
AFS OFF indicator light*3	Receives AFS OFF indicator signals from the headlight swivel ECU (CAN).
FUEL warning light	Receives fuel amount signals from the fuel sender gauge (Direct line) and the amount of fuel is calculated.
SLIP indicator light	Receives malfunction and activation signals from the skid control ECU (CAN).
TAIL indicator light	The indicator turns on when a taillight illumination signal is received (CAN).
Turn signal indicator light (LH/RH)	Receives a turn signal from the FLASHER relay (Direct line).
EPS warning light	Receives power steering warning signals from power steering ECU (CAN)
Master warning light	Receives warning signals from sensors and ECUs (CAN).
PARK warning light	Comes on when the parking brake switch is on (Direct line and CAN).
Glow indicator	Receives a glow signal from the ECM (CAN).
Cruise indicator*4	Receives a cruise control switch signal from the ECM (CAN).
Speed limiter indicator*4	Receives an adjustable speed limiter switch signal from the ECM (CAN).
Cruise set indicator*4	Receives a cruise control switch signal from the ECM (CAN).
SIL indicator (UP/DOWN)*5	Receives a shift signal from the ECM (CAN).
Eco Driving Indicator Light*6	Receives an Ecology Lamp indicator signal from the ECM (CAN (CAN No. 1 Bus)) and illuminates when the vehicle is being driven ecologically.
PCS warning light*7	Receives PCS warning light signals from the seat belt control ECU (CAN).
LKA indicator light*8	Receives radar cruise indicator signals from the driving support ECU (CAN).
Radar cruise indicator light*8	Receives radar cruise indicator signals from the driving support ECU (CAN).
Auto parking brake off indicator light*5	Receives an auto parking brake off signal from the parking brake with bracket actuator (CAN).
VSC OFF indicator light	Receives VSC OFF indicator light turns on signals from the skid control ECU (CAN).
A/T P shift position indicator*6	Receives a P signal from the ECM (CAN).
A/T R shift position indicator*6	Receives an R signal from the ECM (CAN).
A/T N shift position indicator*6	Receives an N signal from the ECM (CAN).
A/T D shift position indicator*6	Receives a D signal from the ECM (CAN).
A/T S (1 to 6) shift position indicator*6	Receives a signal (1 to 6) from the ECM (CAN).

*1: w/ Front Fog Light

*2: w/ Rear Fog Light

*3: w/ Adaptive Front-lighting System

*4: w/ Cruise Control System

*5: for Manual Transaxle

*6: for Automatic Transaxle

*7: w/ Pre-crash Safety System

*8: w/ Dynamic Radar Cruise Control System

*9: for LHD

*10: for RHD

MULTI-INFORMATION DISPLAY

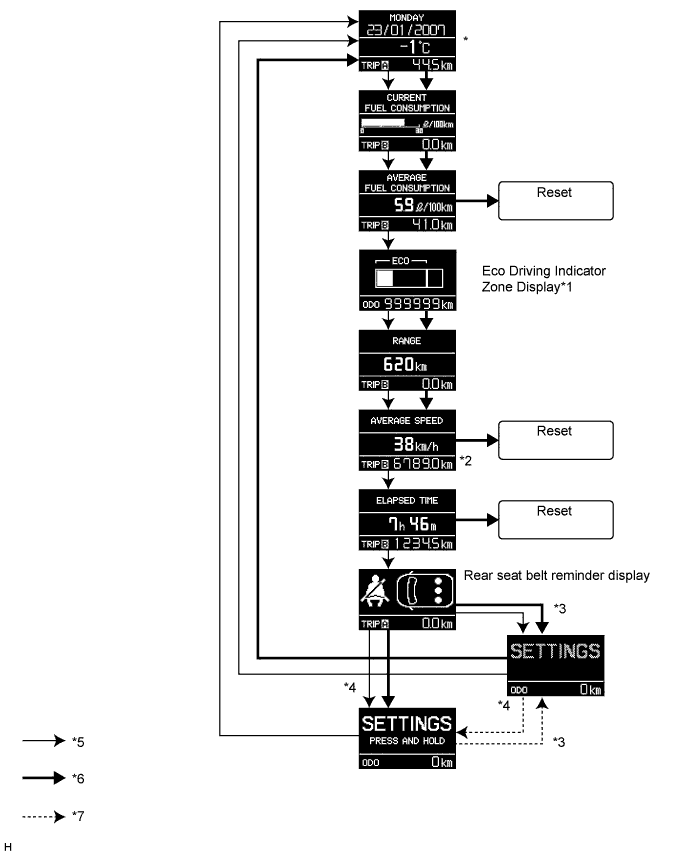

1. Operation using the ODO/TRIP switch or the display switch of the steering pad switch.

  Tech Tips

  After the ignition switch is turned from ON to off, the last screen is recorded and can be viewed again by the user the next time the ignition switch is turned to ON. If the battery cable is disconnected and then reconnected, the screen labeled * is displayed when the ignition switch is turned to ON (initial setting).

  *1: Not displayed for vehicles not equipped with eco driving bar display.

  *2: Average vehicle speed calculated from time engine started.

  *3: Vehicle being driven.

  *4: Vehicle stopped.

  *5: Knob or switch pushed for less than 0.8 seconds.

  *6: Knob or switch pushed for 0.8 seconds. or more.

  *7: Display changes automatically based on vehicle condition (being driven or stopped).

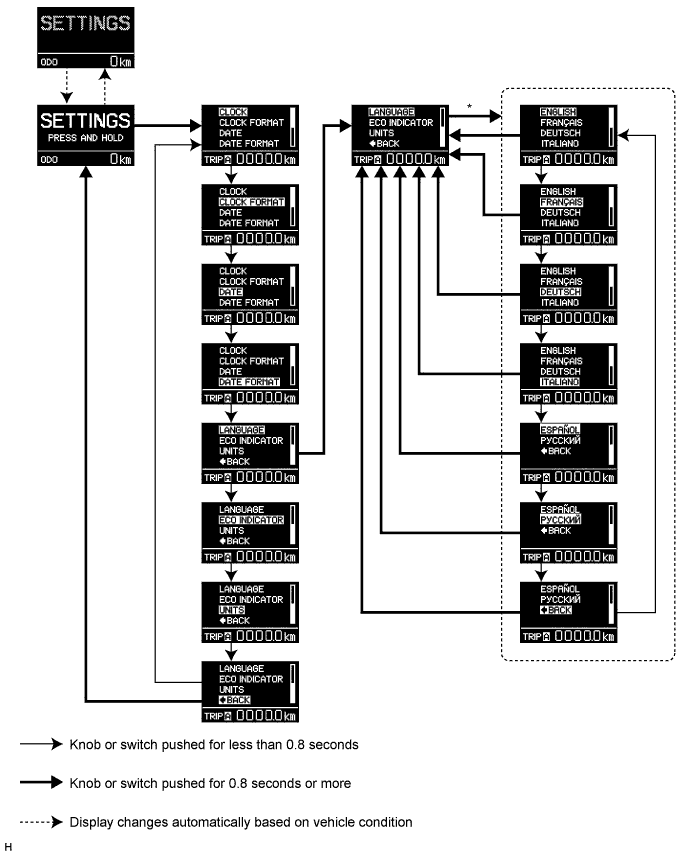

2. Changing the displayed language.

  *: Current condition

  The screen changes to the current selected item in inverted color character.

  Tech Tips

  English, French, German, Italian, Spanish or Russian can be displayed.
